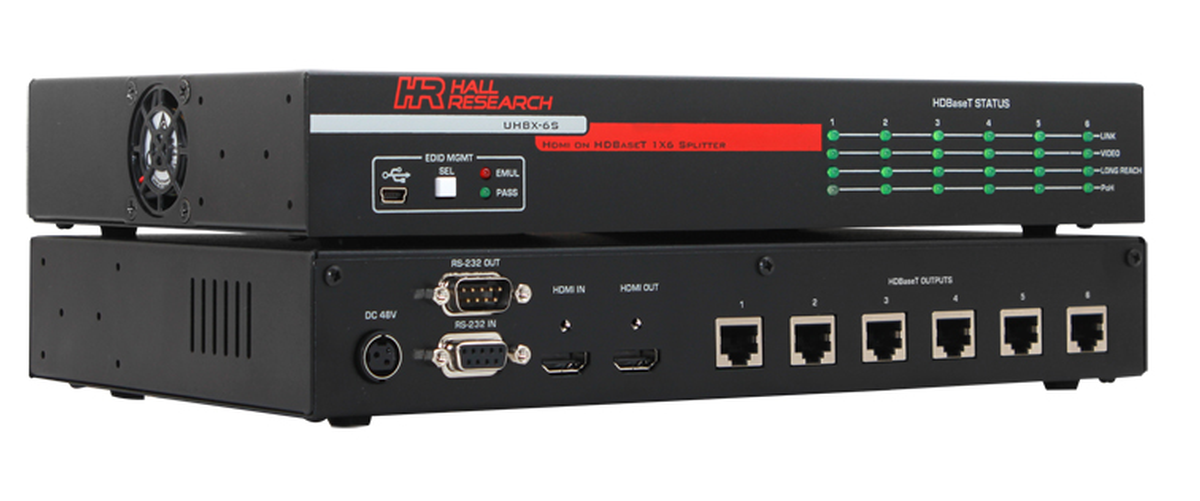

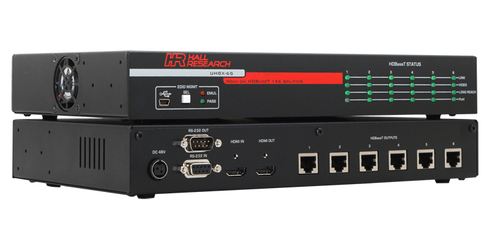

Hall Technologies UHBX-6S
1x6 HDMI and HDBaseT Splitter, Local HDMI Output, RS-232

Description

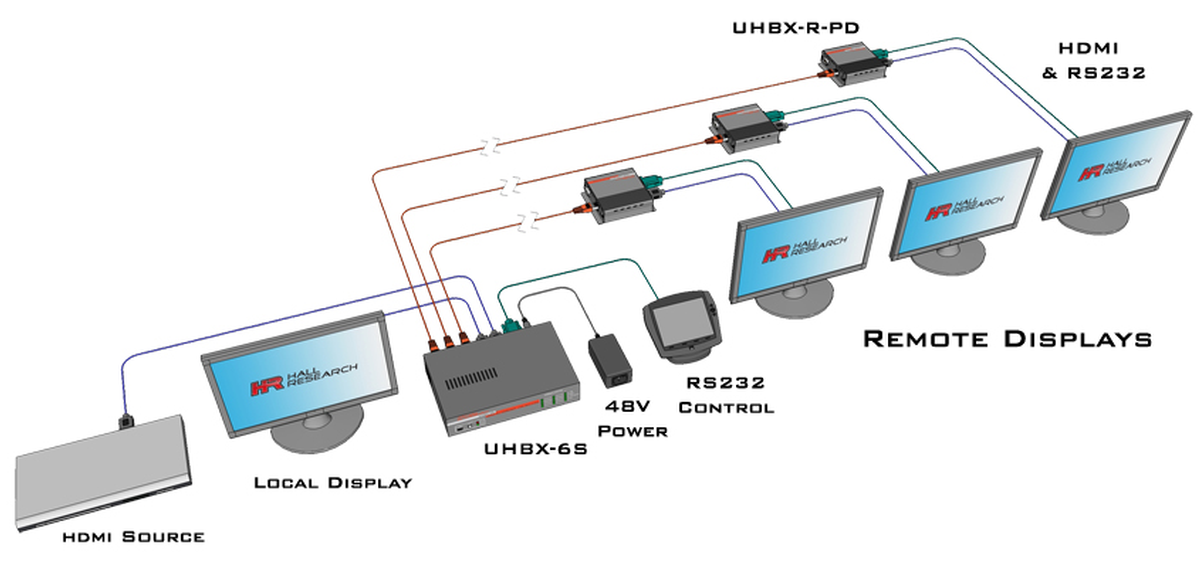

The Hall Research UHBX-6S is a 1x6 HDMI and HDBaseT splitter that can extend HDMI video to 6 remote displays via HDBaseT. The HDBaseT outputs can extend 1080p signal up to 500' to Long Reach capable receivers. The UHBX-6S supports PoH and the compatible receivers are powered from the sender using PoH standard so no additional power supplies are necessary.

The HDMI output is to connect to a local display or to daisy-chain another splitter. A maximum of 7 splitters can be daisy-chained together. The Hall Research splitter supports HDCP, 3D, Deep Color and CEC along with 4K video (4K/30 4:4:4 or 4K/60 4:2:0).

The UHBX-6S offers advanced EDID management with an USB port that integrates the unit with 'Pass-Thru', 'Learn' and 'Emulate' features via the front panel switch. The RS-232 port can address and send independent commands to each HDBaseT output and remote displays that feature RS-232 interface.

If you need to expand your HDBaseT needs, the daisy-chainable Hall Research UHBX-6S offers you a solution!

Specifications

• HDCP and HDMI compliant
• Supports most HDMI and DVI resolutions
• Provides True EDID Management
• HDBaseT distance: Up to 328' using a single UTP cable
• Control: Front panel buttons, RS-232
• System Range: Up to 500' in Long Reach Mode (1080p), up to 328' in Standard Mode using UTP cables (depending on receiver type and cable quality)
• HDMI Support: Compliant with 12 bit color depth, 3D video
• HDMI Audio Specs: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
• Included Accessories: Universal Power Supply, HDMI cable, RS-232 M/F cable, USB-A to Mini USB cable, User Manual.
• Dimensions (HxWxD): 1.66" x 11.23", 6.59"
• Weight: 4.5 lbs
• Warranty: 3 years

Downloads

• Hall Research UHBX-6S User Manual (PDF)
• Hall Research UHBX-6S Software Guide (PDF)
• Hall Research UHBX-6S Technical Drawing (PDF)
