Hall Technologies UHBX-4X
4 HDMI HDBaseT 4K Transmitter with IR and RS-232 - 500'

Part #: UHBX-4X
Satisfaction Guaranteed!
MSRP: $2,150.00
Our Price: $2,042.50
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $45 Off!
Top UHBX-4X Specifications
  • 4 HDMI HDBaseT transmitter
  • Extends IR in both directions
  • Can issue RS-232 or IR commands to any output (requires compatible receiver)
  • RS-232 and IP control ports
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008

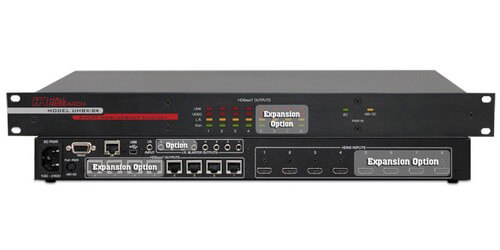

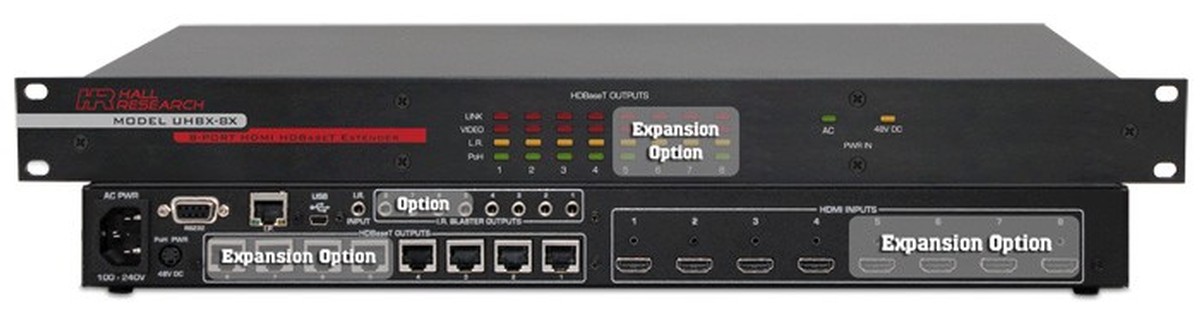

The Hall Research UHBX-4X is a 4 HDMI input and 4 HDBaseT output transmitter, it also can issue RS-232 and IR commands up to 500' for 1080P and 330' for 4K to a compatible receiver. The transmitter supports HDCP, 3D, Deep Color, CEC, and 4K resolutions for the latest in technology, all in a compact 1RU rack mountable chassis.  Set up and maintaining is easy since LED indicators on the front panel show Link Status, HDCP status, Long Reach and Power for each of the 4 outputs.

The UHBX-4X provides both IP (Ethernet), and RS-232 ports for control. Using these ports the user can address and send RS-232 or IR commands to any of the receivers to control the remote display. IR signals can also be extended in both directions. Besides being able to create IR commands by itself (via RS-232 or IP control ports), the UHBX-4X provides a jack for an IR detector cable. The IR received by the detector can be routed to any one or combination of outputs. 4 separate IR emitter ports are also provided on the rear of the UHBX-4X which can be used if a user connects IR detectors at each remote location.

The Hall Research UHBX-4X can send power to compatible receivers however an additional power supply must be purchased, part number 511-PS4812.  If the receivers are sending the power then no additional power supply is needed for PoH capabilities.  If you need more ports consider the 8 port UHBX-8X model.


  • Supports HDCP, 3D, Deep Color, CEC, and 4K (UHD) resolutions, 12-bit color depth
  • HDMI 1.4
  • Sturdy 1RU design with built in power supply
  • Can power compatible receivers through the cable using PoH (requires optional 511-PS4812 48v supply)
  • Front panel status indicators for power, link, video and more for each channel
  • Features locking HDMI connectors
  • Includes power supply
  • Rack ears are pre-mounted
  • Made in the USA
  • Dimensions: 1.75" H x 7.75" W x 19" L
  • Weight: 6.9lbs
  • Warranty: 3 years
