Hall Technologies UH-1BT-S
4K HDBaseT Lite Transmitter - 230'

Part #: UH-1BT-S
Satisfaction Guaranteed!
MSRP: $215.00
Our Price: $204.25
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $5 Off!
Top UH-1BT-S Specifications
  • HDBaseT Lite sender
  • Distance: 230' for 1080P, 190' for 4K or 230' for 4K using properly terminated shielded CAT6
  • Resolution: Up to 4K
  • Supports: 3D, EDID, HDCP, deep color
"Very nice folks to work with. Quick and good information"
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008

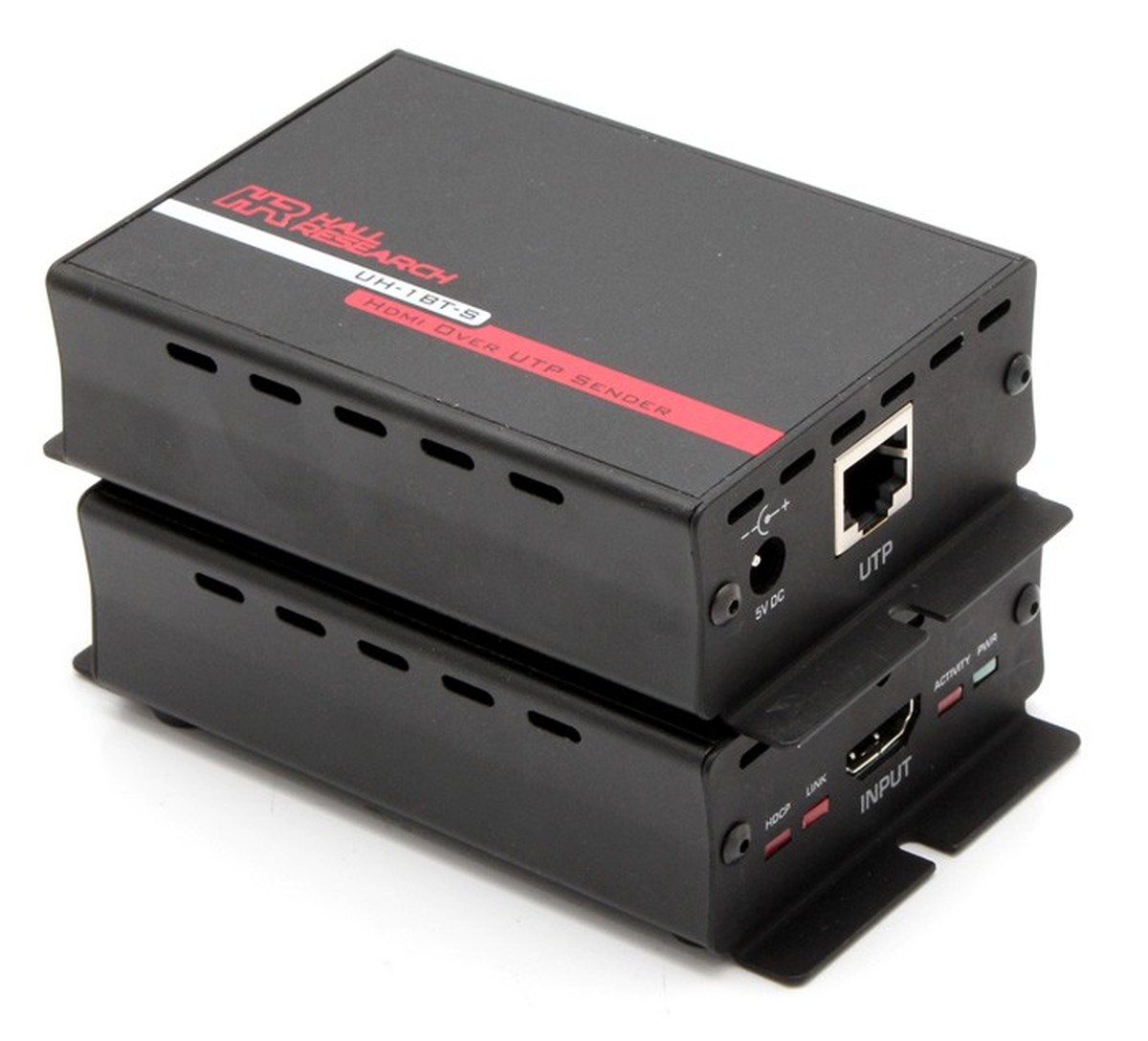

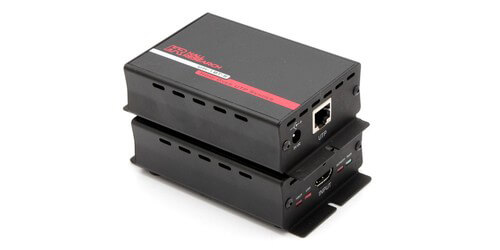

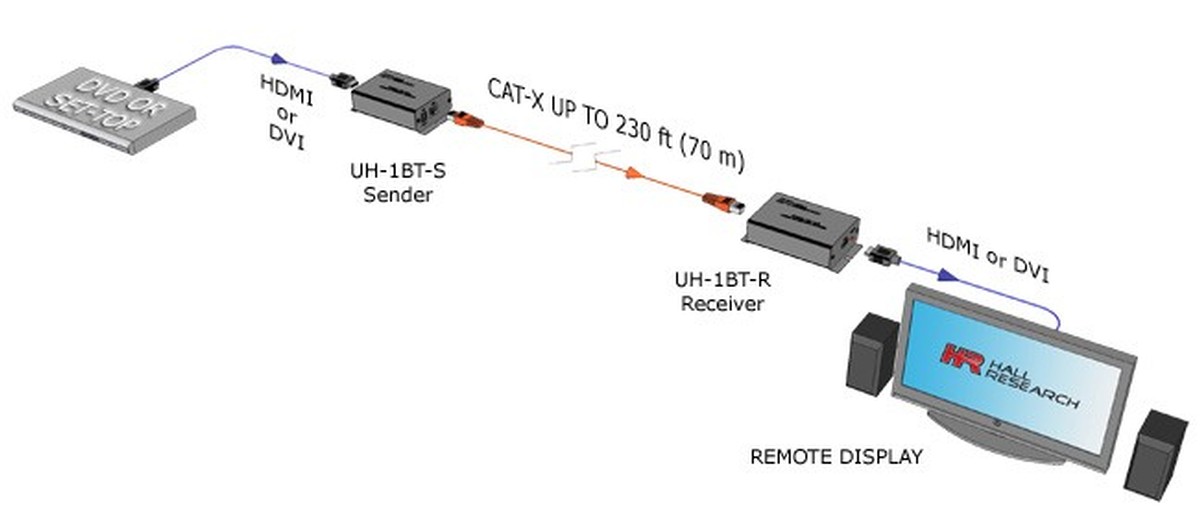

The Hall Research UH-1BT-S is an HDBaseT Lite transmitter that allows your to send your HDMI with embedded audio over Cat5e/6 cabling.  You can transmit your signal up to 230' with perfect clarity and no noise in the signal.  The sender supports the ability so send up to 4K resolution, it also supports deep color, HDCP compliance, and EDID and 3D pass through.

The Hall Research UH-1BT-S is an affordable and reliable means to send 4K video up to 230' in distance with no compression and no set up time, it is plug and play installation.


  • Secondary data channels such as: DDC, CEC, and HPD (Hot-Plug Detect) are also transparently extended
  • Compatible with all HDBaseT and HDBaseT Class B (HDBaseT-Lite) compliant products
  • Locking HDMI connector
  • Includes universal power supply
  • Warranty: 3 years
