Hall Technologies SW-HD-4
4x1 HDMI 4K Switcher w/ RS-232, IR, IP Control, Priority Switching

Description

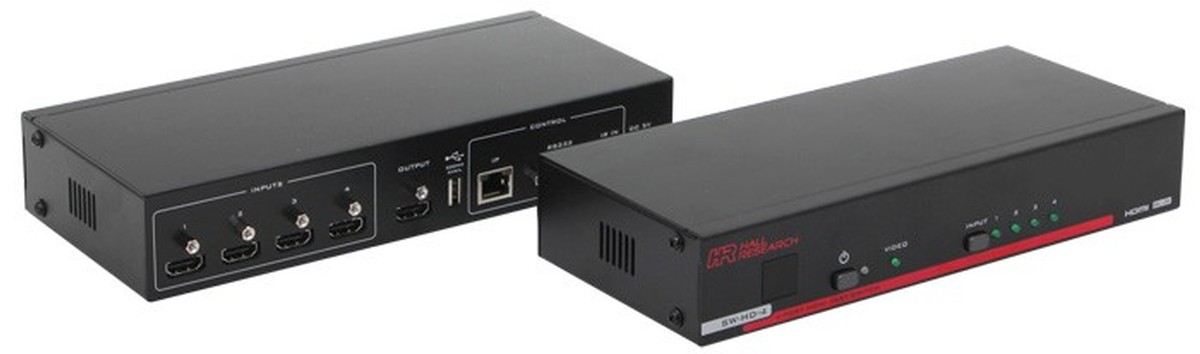

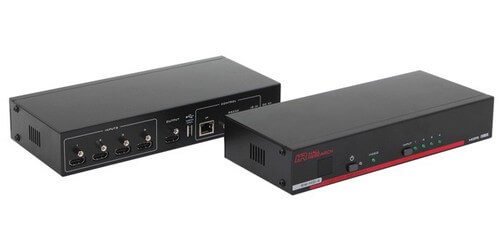

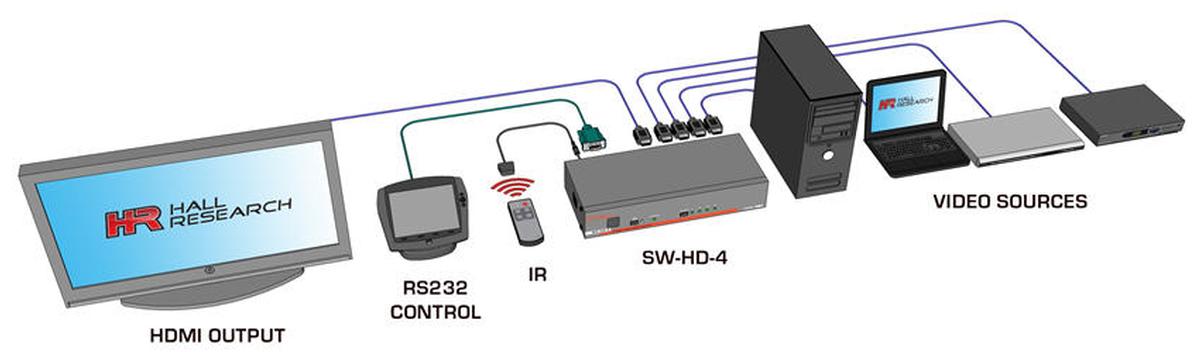

The Hall Research SW-HD-4 is a 4K Ultra High Definition 4x1 HDMI switcher, it features fast switching with a delay of roughly 2 seconds.  The switcher can be controlled via RS-232, front panel, IR, and over IP via Telnet or Web GUI.  The switcher also features priority auto switching, the SW-HD-4 scans all inputs and automatically selects the active input. Priority is based on position with #1 input having the highest priority (so if more than one input has video, in Auto mode, the input with lowest port number will be selected).  The switcher supports 3D, HD audio, and EDID pass through, and is HDMI 1.4, HDCP 1.1, and DVI 1.0 compliant.

The switchers HDMI ports support locking, use any HDMI cable that can be locked or Hall Researches C-HDMI line of locking cables.  The front panel features a lock button so switching or setting adjustments can't be accidentally changed.  The Hall Research SW-HD-4 can switch your 4K content and also includes an IR remote for easy use.

Specifications

• 3D and Deep Color Supported
• Priority auto switching
• Audio Standards: LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD and DTS-HD Master Audio
• Front panel LED status indicators
• HDMI 1.4, HDCP 1.1, and DVI 1.0 compliant
• HDMI cable locking
• Video Bandwidth: 3.0Gbps (single link)
• Dimensions: 9.75" W x 4.5" D x 2.0" H
• Weight: 1.8lbs
• Includes: IR remote
• Warranty: 3 years

Downloads

• Hall Technologies SW-HD-4 Manual (PDF)
