Hall Technologies SP-HD-2A
4K 2-Channel HDMI Splitter with Analog and Optical Audio Output
- Bandwidth: 10.2Gbps
- Video Standards: DVI, HDMI (12 bit color depth)
- 3D video and 4K/30
- HDMI Connectors
Description

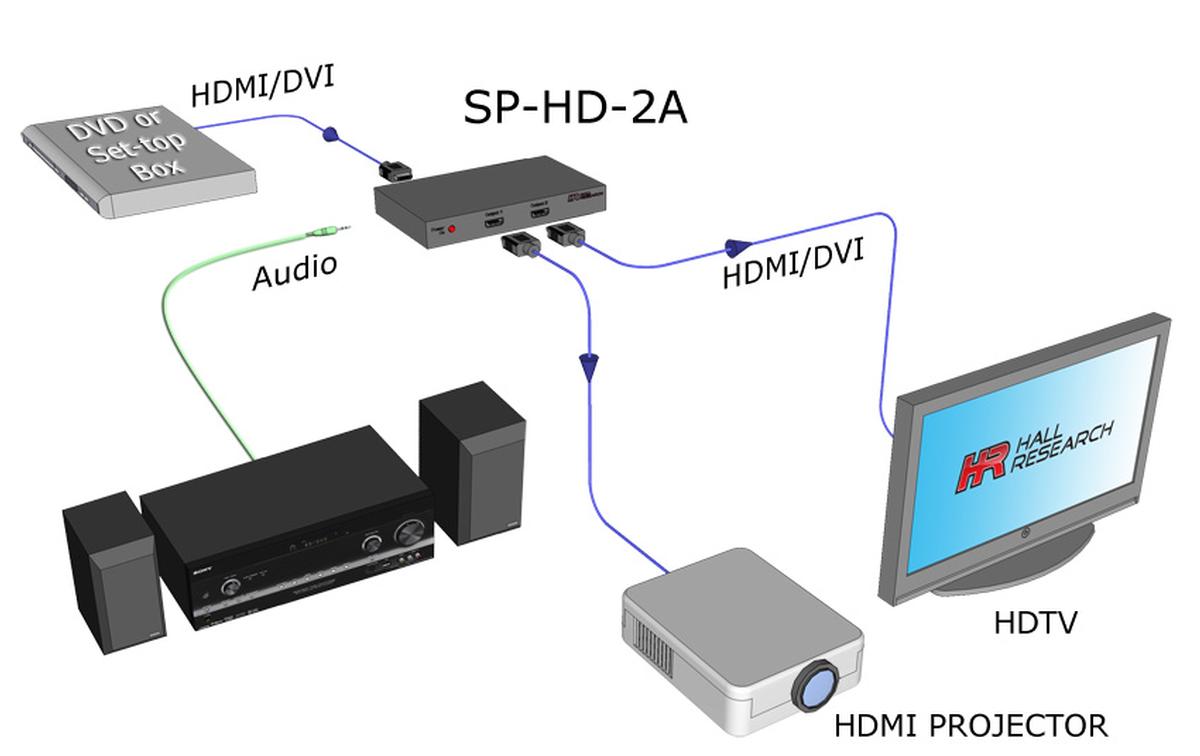

The SP-HD-2A by Hall Research is a 4K supported HDMI with analog and optical audio output Splitter. This compact 2-channel HDMI video splitter can produce two identical outputs of DVI or HDMI input sources for display on two outputs. It has the ability to support Full-HD (1080p) as well as 4K (UHD) video formats. In addition this device will extract audio from the HDMI input signal and output it as analog (L/R) stereo, and digital optical TOSLINK signals for connection to audio amplifiers, headphones, or other audio devices. The SP-HD-2A will emulate a display using EDID if no output display is connected, the source still outputs HDMI video and the splitter will extract and output the audio.

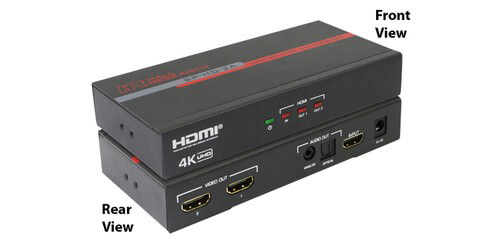

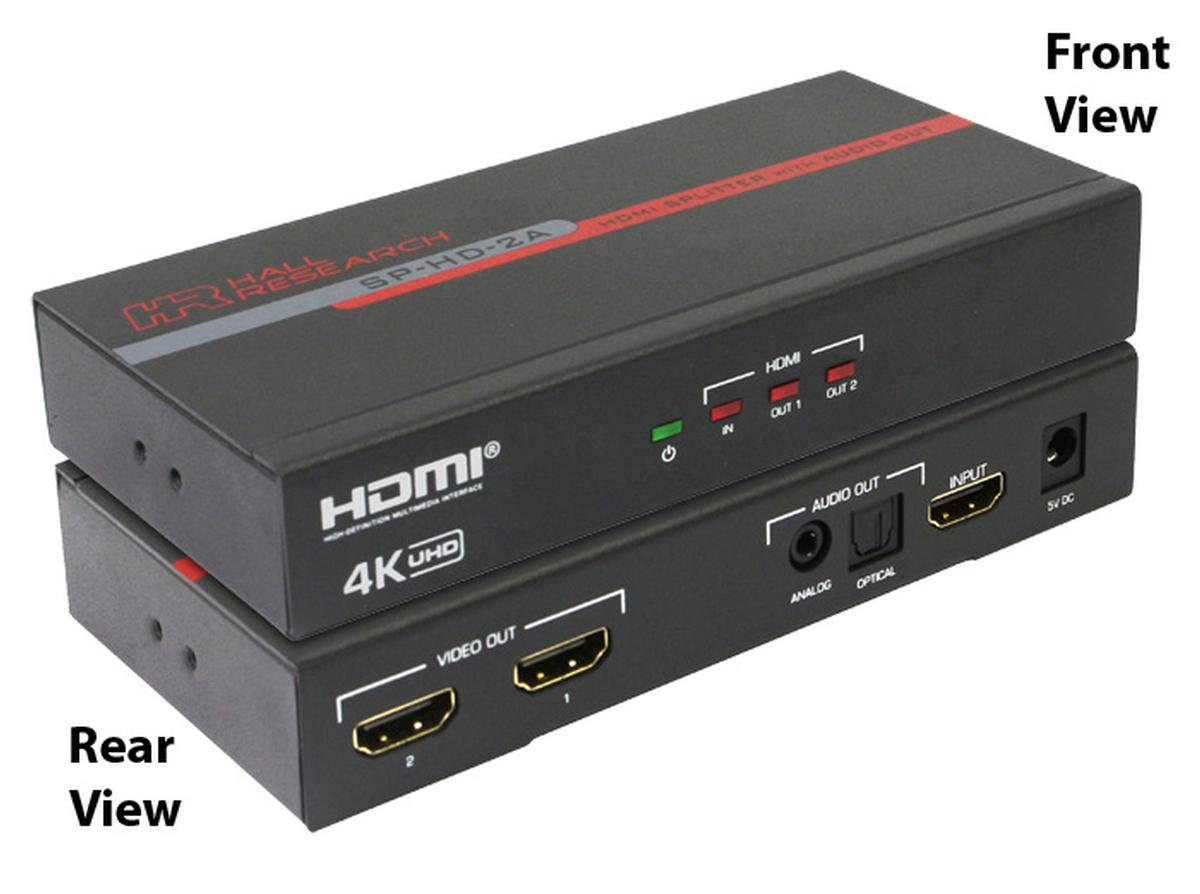

In addition the HDMI splitter supports PC & HDTV resolutions, VGA to UXGA and 480p to UHD. The front panel contains LED indicators for Power, Source Video, and Output Connections. An included bracket for surface mounting and plug and play installation allows for ease of use and initial setup., with included Universal power adapter with interchangeable AC plugs. Supports an array of audio formats including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
Specifications
- Resolution: DVI signal VGA (640x480) thru WUXGA (1920x1200)
- HDTV signal 480i through 4K/30
- Audio Formats: All HDMI Embedded Audio including:
- LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)
- Power Consumption: 2.2 Watts
- Warranty: 3 Years
