Hall Technologies EX-HDU
HDMI and USB Extender Kit over Cat6 - Audio, Integrated Control, IP
- Connectors: EX-HDU-WP Wall Plate:
- (1) HDMI Input (1) Type B USB Host PC Connection
- (2) Type A USB hub port Extension
- EX-HDU-R Receiver Unit:
-Chad R.
Description

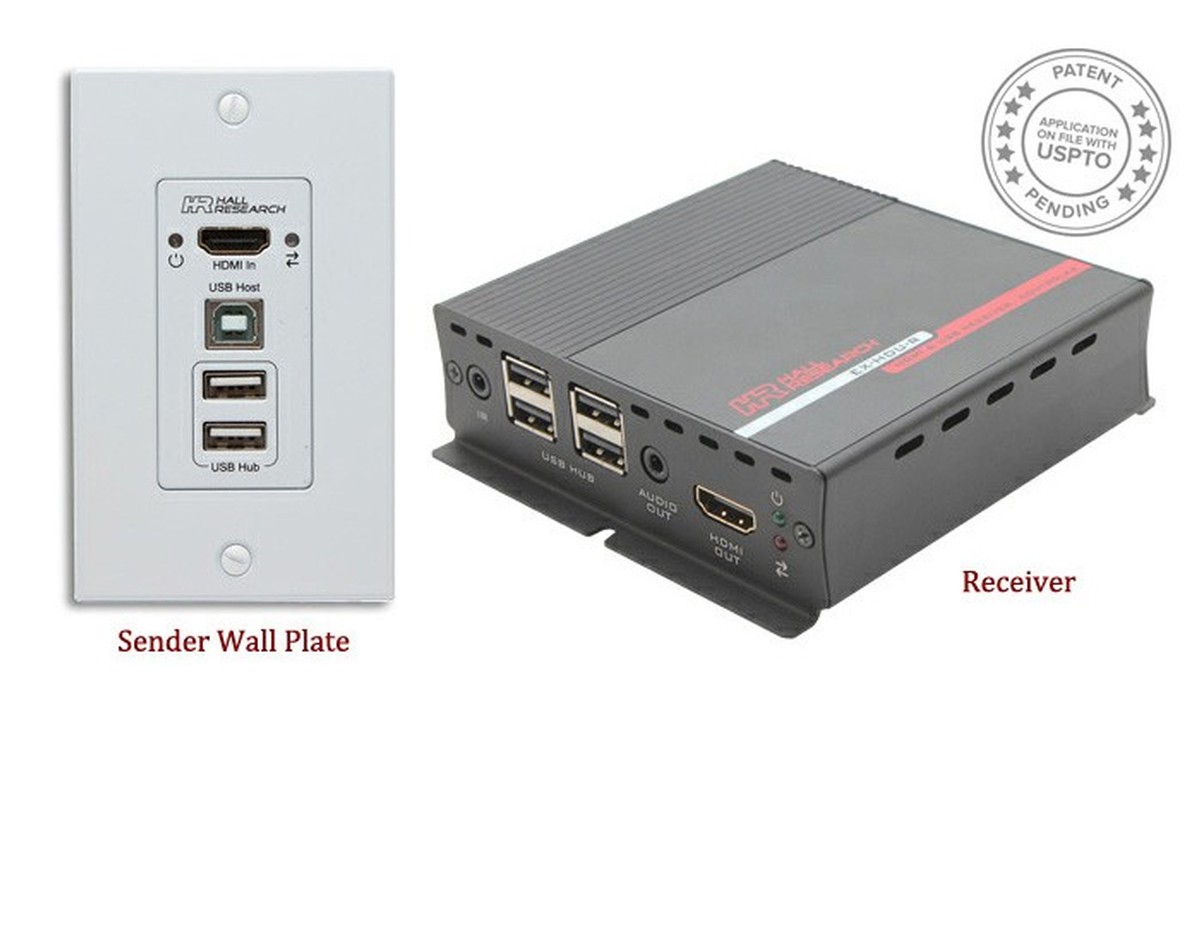

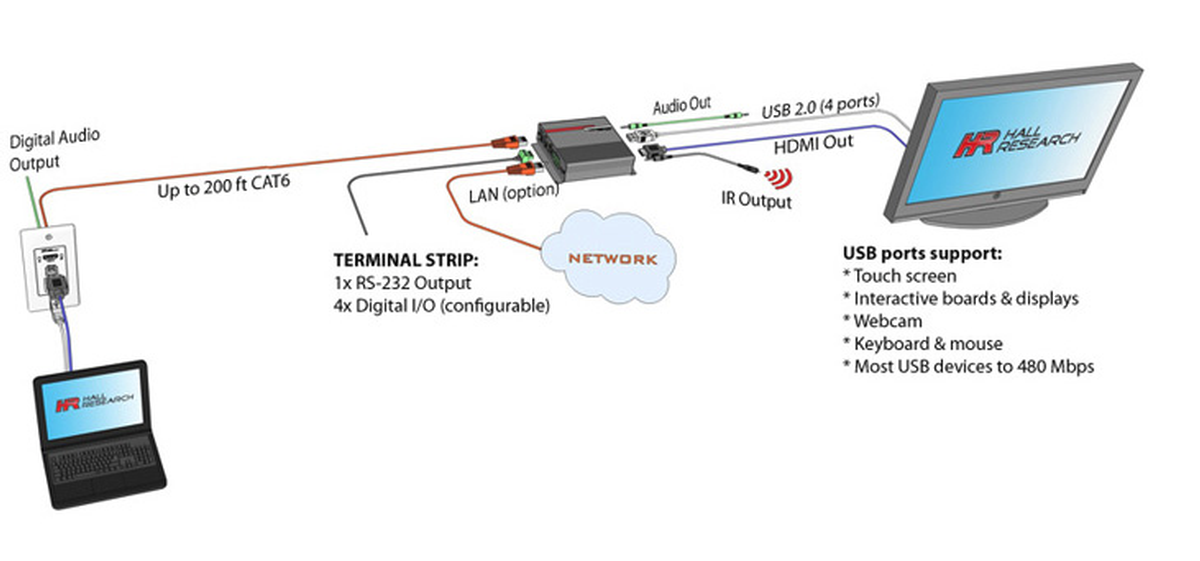

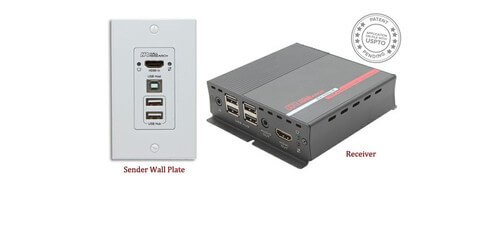

The EX-HDU from Hall Research is an ideal device to be used to extend HDMI video and USB data on a single Cat6 cable up to 200 ft (60 meters). This kit consists of a wall plate transmitter and receiver unit. It allows for HDMI audio extraction and provides both analog stereo and multi-channel digital audio. The EX-HDU also has the ability to control other equipment by providing programmable contact closure I/O, RS-232 output, IR output, and optional LAN interface with internal WebGUI and IP control. Making this an ideal kit for use in classrooms, huddle rooms, or medium sized conference rooms.

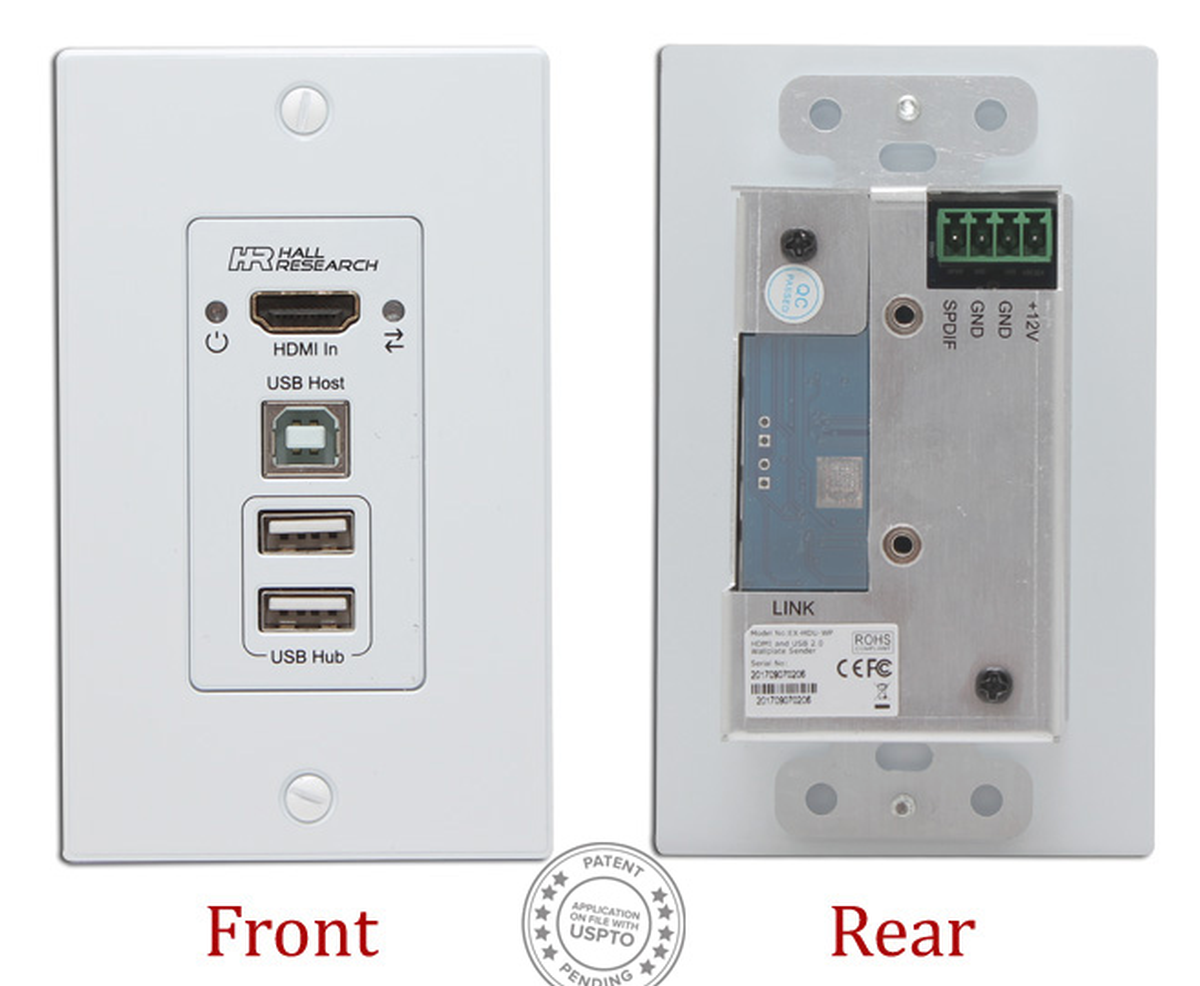

The wall-plate Sender gets its power from the Receiver via the same UTP cable and does not need a separate power supply. For convenience, the wall plate features a USB hub with two USB ports for connection of USB devices. The plug-and-play extender is compatible with all PCs, MACs, and Android Tablets and does not require driver installation. Simply plug the PC's HDMI and USB ports to the sender and make them available at the remote receiver.

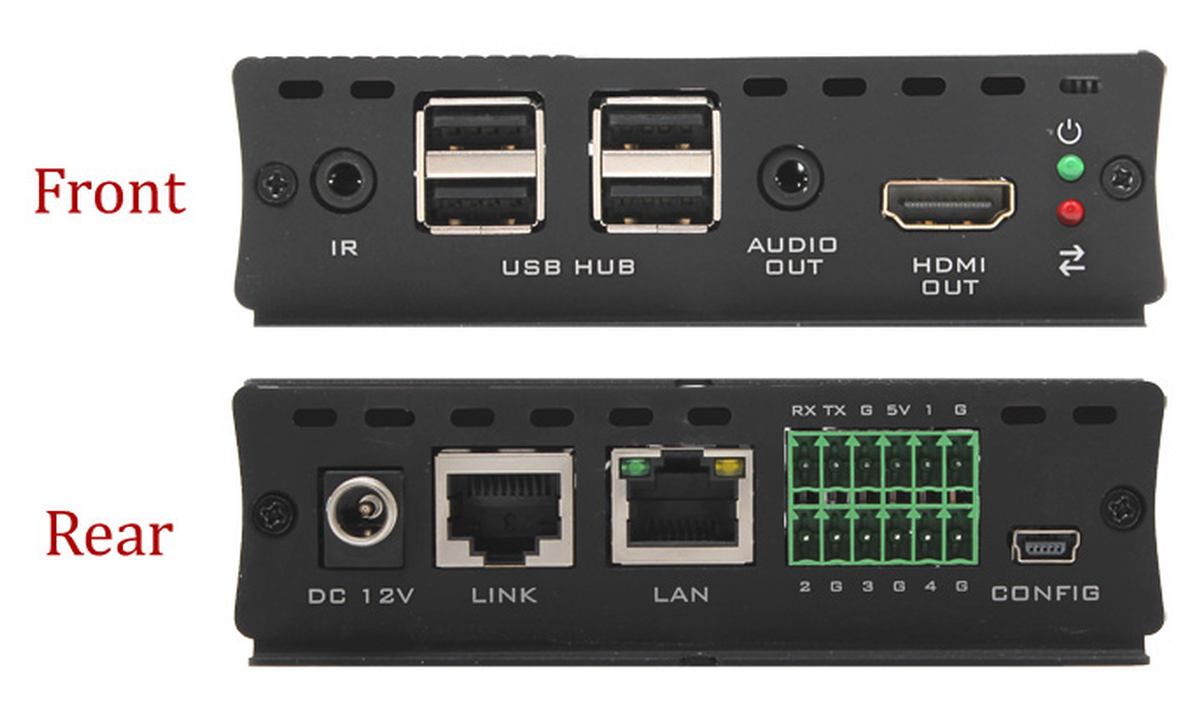

The Receiver provides HDMI video output, stereo audio output, 4 USB ports, IR output, and a terminal strip that has RS-232 output plus 4 programmable digital I/O.
Primary Features of the EX-HDU Kit:
- Extends HDMI + USB 2.0 to 200 ft (60 m) on one Cat 6 cable
- Wall plate sender has 2-port hub for connection to USB devices to the host PC
- Receiver provides HDMI, 4 USB ports, plus contact-closure I/O and RS-232 for display control
- HDMI Audio Extracted output (L/R analog) on Receiver
- Perfect for Interactive displays, Soft CODECs, and KVM extension
- Wall plate does not require separate power supply
Specifications
- (1) HDMI Output
- (4) Type A USB hub port Extension
- (1) Mini-B USB for configuration
- Additional Specs:
- Video Standards:DVI (Single Link), HDMI 1.4, HDCP 1.1
- Signal Type: TMDS
- Resolutions:DVI - VGA (640x480) thru WUXGA (1920x1200) HDTV - 480p thru 1080p60
- USB Standards: Compatible with USB 2.0 and all previous USB standards and data rates
- Audio Format: LPCM 2 Channel Audio (32-192kHz sample rate)
- Power Supply: 100 to 240 VAC, 47-63 Hz, External 12VDC
- Enclosure: Metal (Steel)
- EX-HDU-WP Dimensions: 2.60" H x 1.30" W x 1.80" D
- EX-HDU-R Dimensions: 1.18" H x 4.13" W x 4.57" D
- Weight EX-HDU-WP: 0.75 lb
- Weight: EX-HDU-R: 1.20 lb
- Warranty 3 years parts and labor
