DigiBird DB-VRC4H-360F
4K HDMI Video Wall Controller 360 Alignment

Part #: DB-VRC4H-360F
Satisfaction Guaranteed!
MSRP: $3,100.00
Our Price: $2,650.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top DB-VRC4H-360F Specifications
  • Supports 1 increments rotation of displays
  • One unit controls up to 4 displays of different size and resolution
  • Cascade multiple units to build large scale video walls
  • Auto bezel compensation
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008

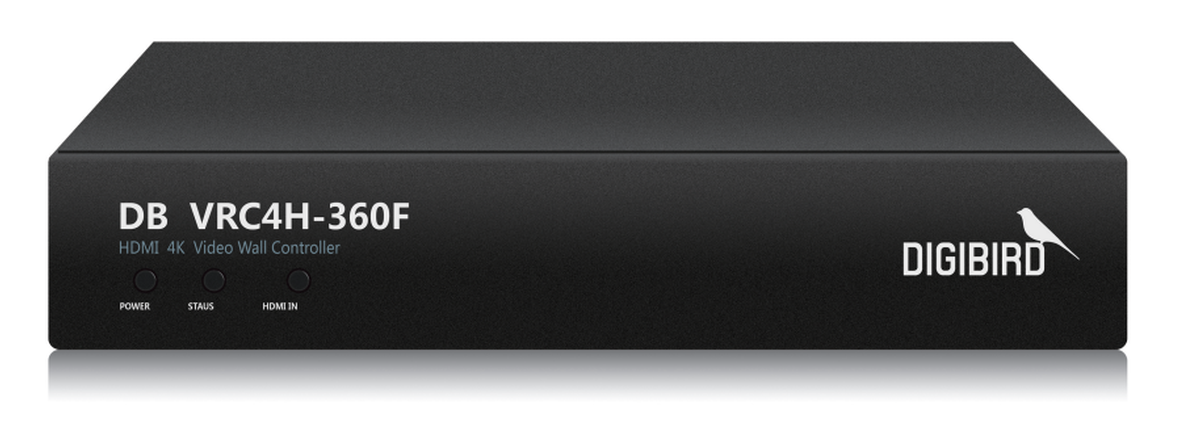

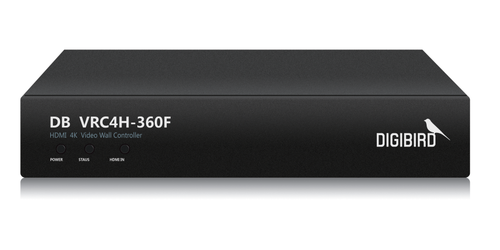

The DigiBird DB-VRC4H-360F is 1x4 HDMI, compact video wall controller. Each of its outputs can be rotated by 1° increments rotation. It is an ideal solution to build an eye-catching UHD video wall.

The VRC series Video Wall Controller is the simplest and most cost-effective solution to build an eye-catching and creative video wall. It is an ideal video wall solution for retail stores, shopping malls, restaurants, sports bars, hotel lobbies, trade shows and entertainment venues.


Primary Features:

  • Unlimited Creativity: Every 1° incremental rotation for each single screen.
  • Supports cropping, arbitrary zooming, duplicate, flip, bezel compensation, up/down scaling and 4K UHD capture.

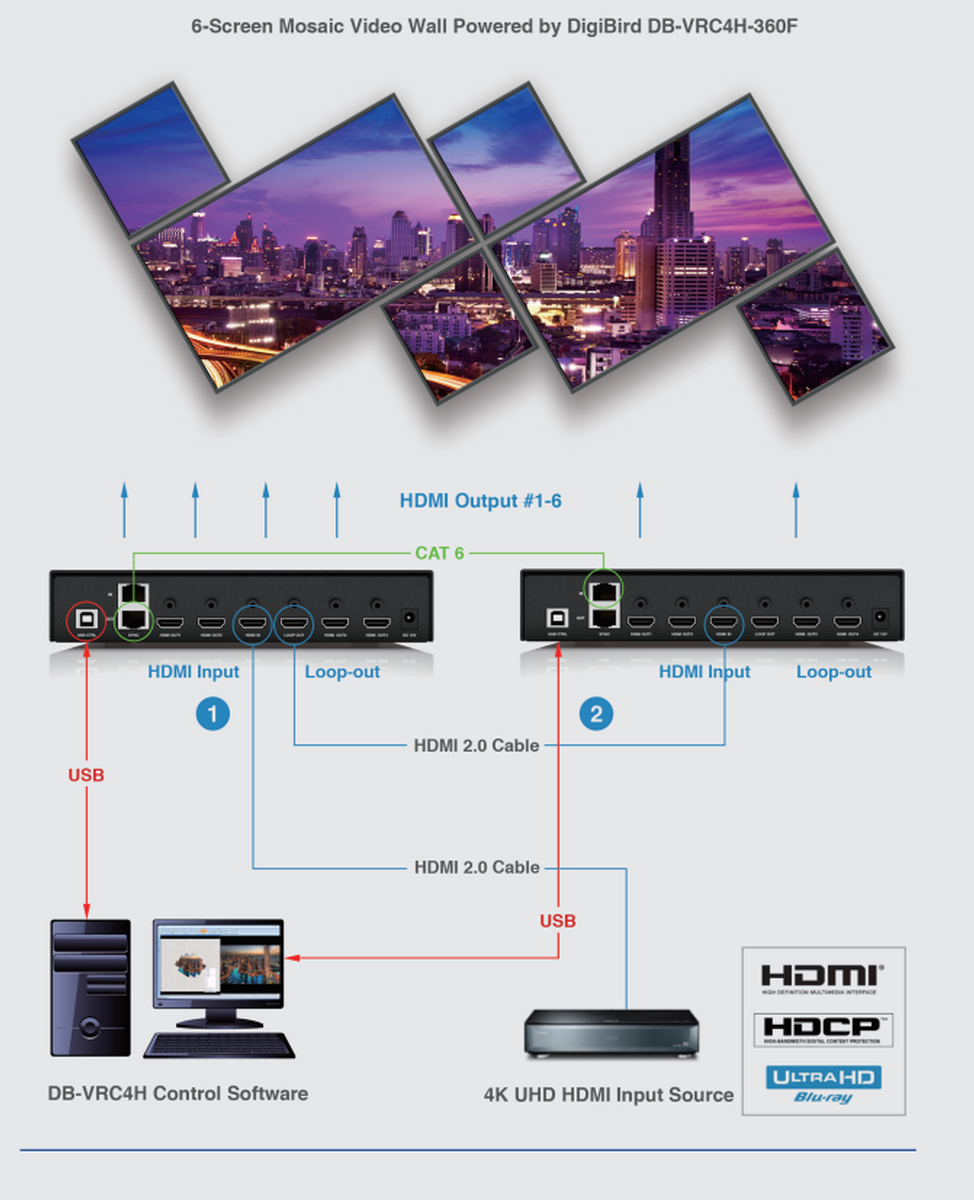

  • Cascading: Easy to be used for big video wall by the daisy chain cascading feature. Supports all monitors with multiple sizes and resolutions.
  • Easy to Use: The simplest design software, setup the video wall within 5 minutes. Without more IT technology background, save your training cost.
  • Content Cropping: Cropping any video content in any position to cut out the black edges or emphasize any details. Easy to make real full screen display without rendering the content.
  • Scenes Management: User defined presets. Flexible layouts and rapid retrieval of presets.
  • Bezel Compensation: With bezel compensation to display your video more synchronized.
  • EDID Management: Support EDID management.


  • Horizontal and vertical mirroring/flip
  • Number of Video Inputs: 1
  • Number of Video Outputs: 4
  • Number of Displays Controlled: 4
  • Input Resolutions (HxV) : 3840x2160/30Hz
  • Output Resolutions (HxV) : 1920x1080/60Hz
