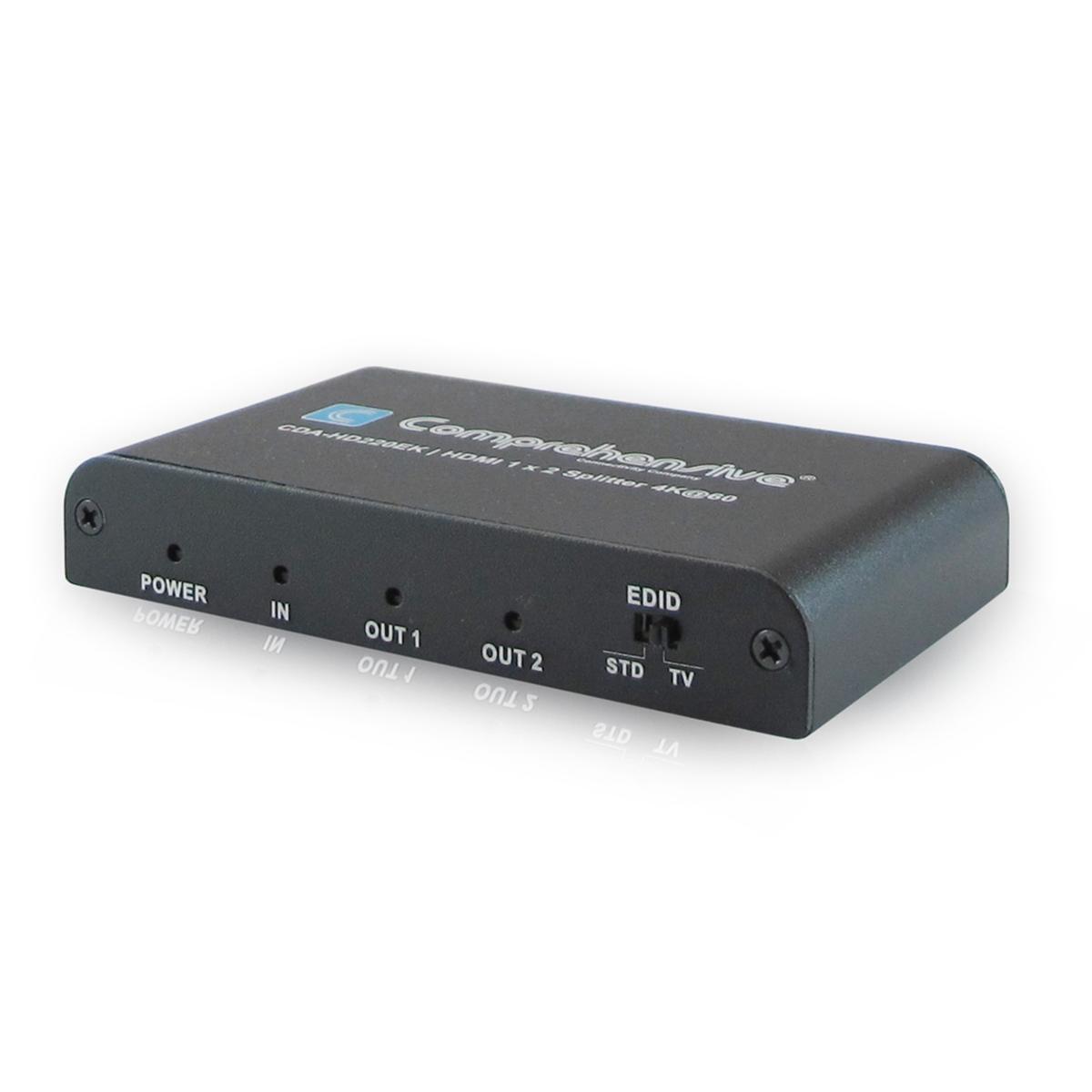

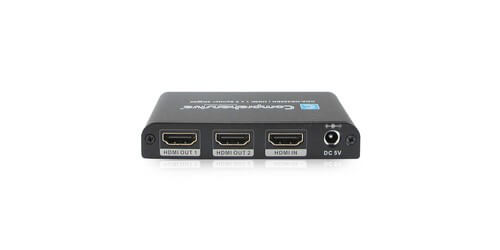

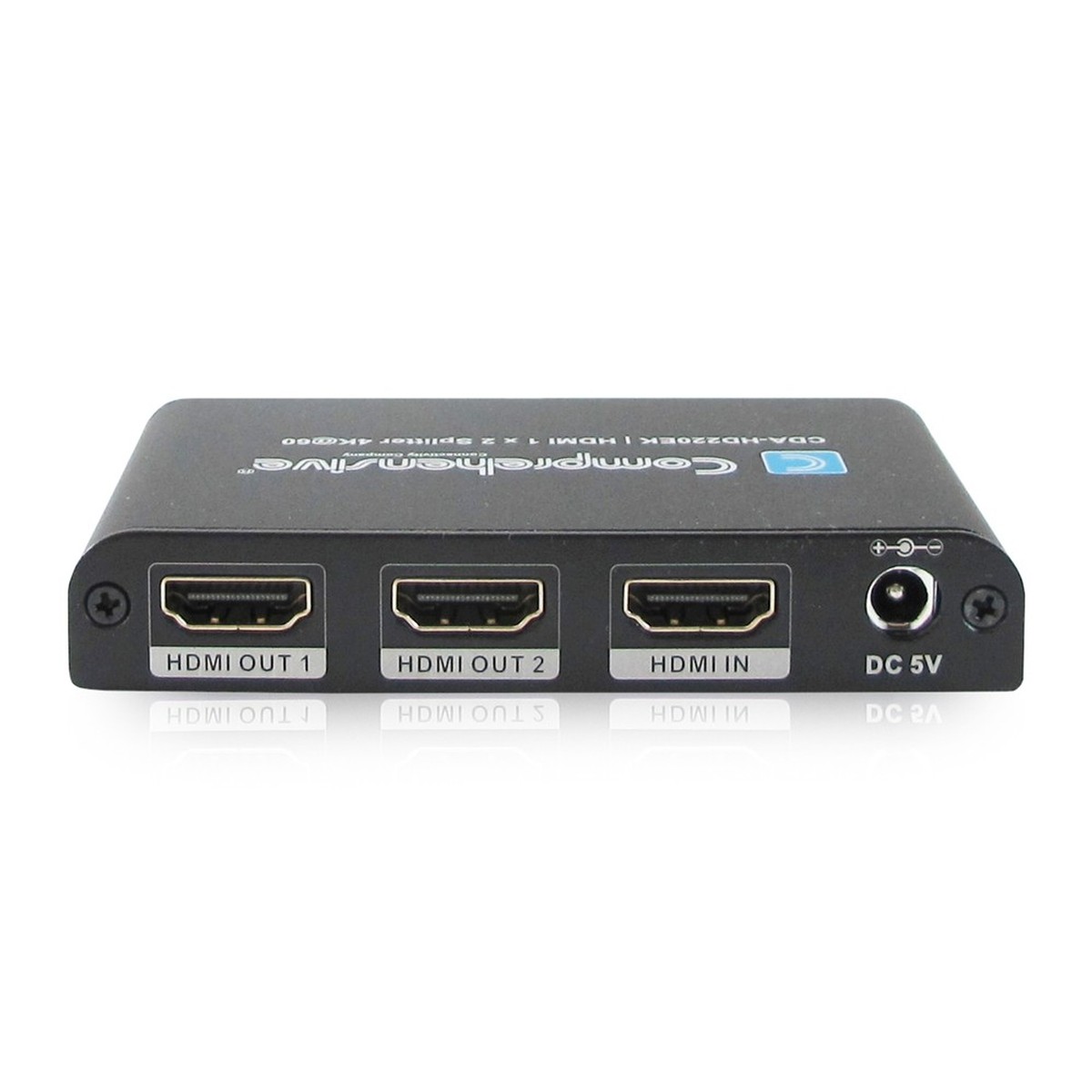

Comprehensive CDA-HD220EK
1x2 HDMI Distribution Amplifier, HDCP 2.2, 4K60, 10.2Gbps

Description

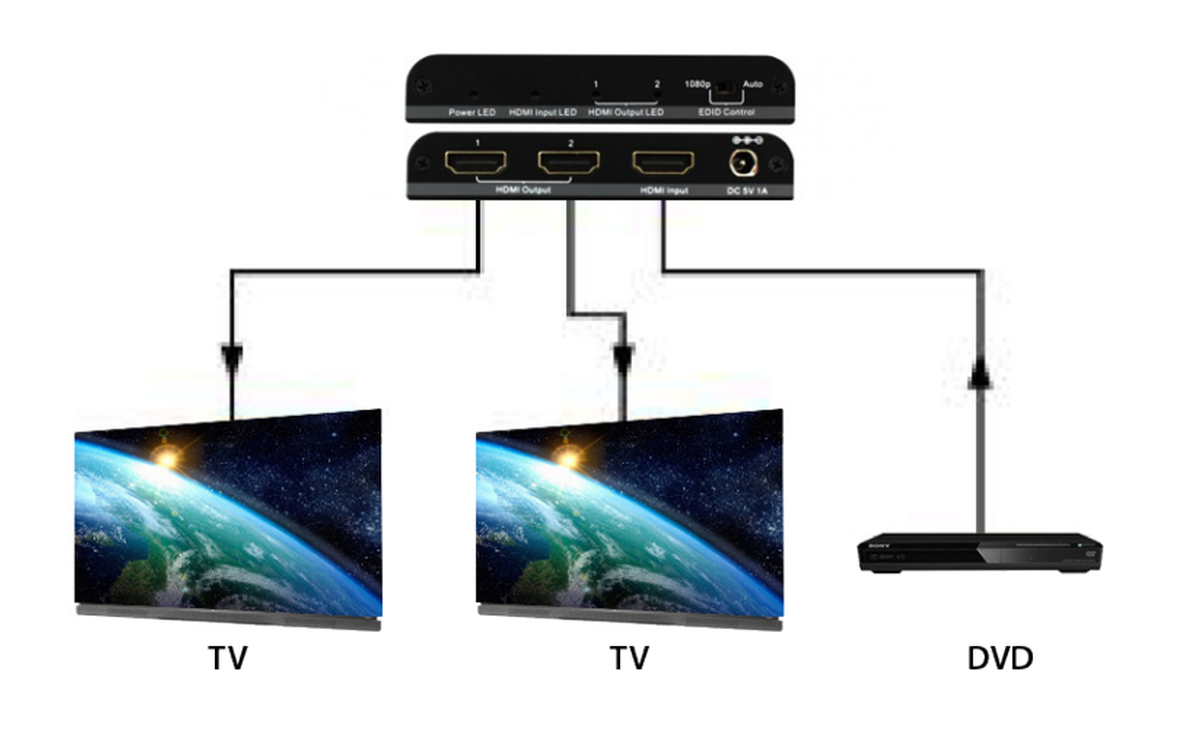

The Comprehensive CDA-HD220EK 1x2 HDMI Distribution Amplifier comes with high quality 4K60 resolutions, HDCP 2.2 compliance, and bandwidth speeds up to 10.2Gbps. It allows the user to connect and distribute one HDMI input simultaneously to two separate HDMI outputs. This splitter has Smart EDID control which provides the option to choose between STD (fixed) or TV (downstream) settings. The slim and compact design makes this metal enclosed unit an ideal solution in a variety of different settings. It is perfect for applications in lecture halls, conference rooms, as well as showroom and retail displays. This CDA-HD220EK distribution amplifier from Comprehensive is backed by a two year warranty.

Specifications

• Power Supply: 5V/1A DC
• Power Consumption: 1.5W(Max)
• ESD Protection: ~8kV (air-gap discharge) ~4kV (contact discharge)
• Chassis Material: Metal
• Silkscreen Color: Black
• Weight: 0.23 lb.
• Dimensions(WxDxH): 3.77" x 2.20" x 0.66"
• Included Accessories: Power Adapter, Operation Manual
• Warranty: 2 Years

Downloads

• Comprehensive CDA-HD220EK Specifications (PDF)
• Comprehensive CDA-HD220EK Manual (PDF)
