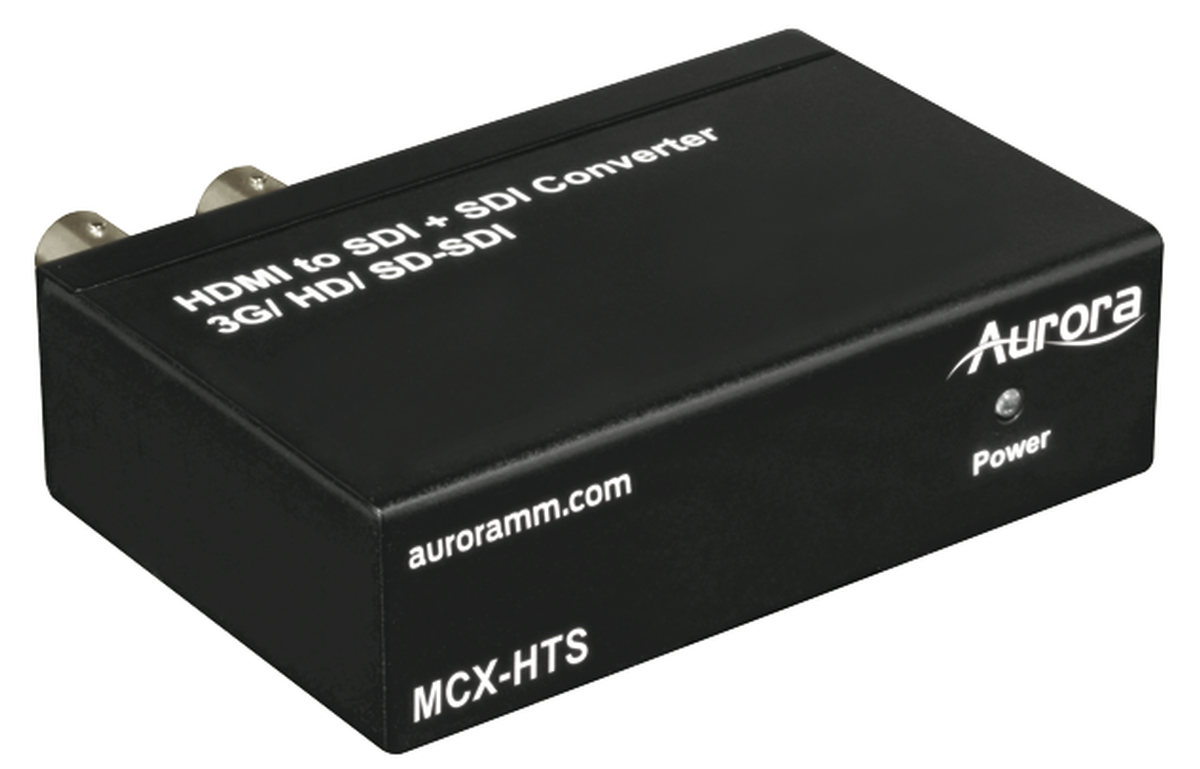

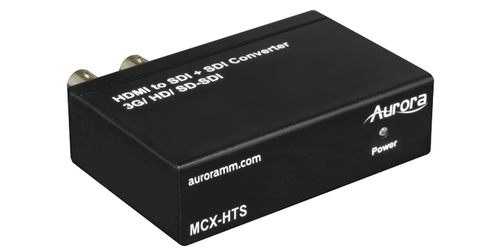

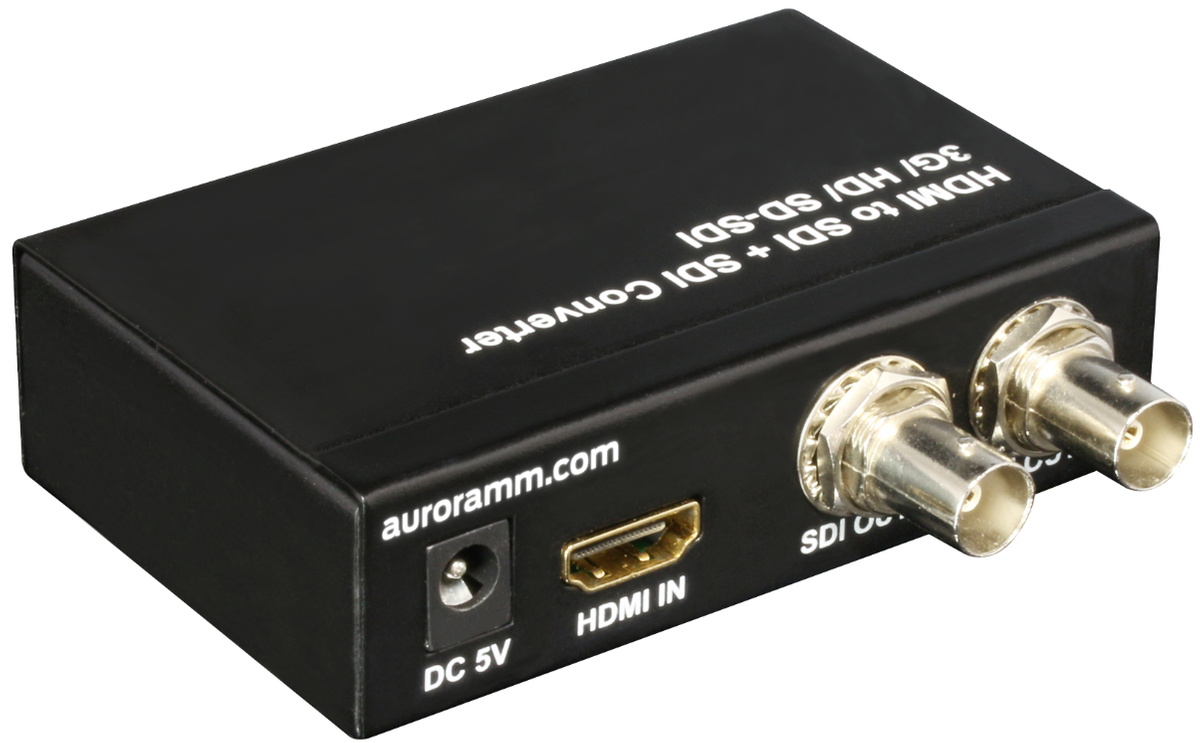

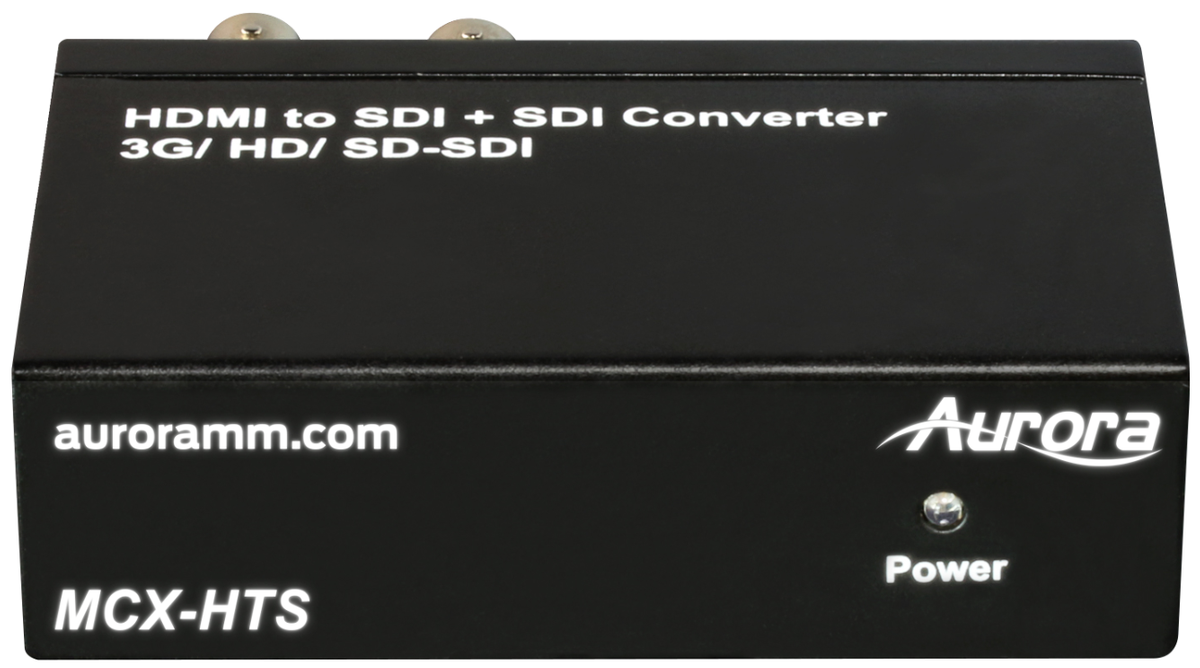

Aurora MCX-HTS-K
HDMI to SDI Converter

Description

Aurora's MCX-HTS-K is an HDMI to SDI converter: it takes an HDMI input and turns it into 2 3G/HD/SDSDI video outputs. These video outputs can then be extended up to 328 feet each when used over standard coaxial cable. For large-scale HD-SDI video distribution, outputs can be sent up to 656 feet over standard coaxial cable, and for SD-SDI video distribution, it can send signals up to 984 feet.

Dual SDI outputs enable scalability: connect an HDMI video source to a local SDI display and output an additional SDI signal to broadcasting equipment. Other key features of this converter include the following:

• 3G SDI to HDMI Conversion
• Dual SDI Outputs
• Resolution up to 1080p
• Auto detect resolution of SD-SDI, HD-SDI, and 3G-SDI
• Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth

Specifications

• SDI Distance: SD 100m, HD 200m, 3G 300m
• Input HDMI Distance: 30 feet
• Housing: Metal
• Dimensions [L x W x H]: 3.54" x 2.28" x 1.02"
• Weight: 5.856 oz
• Power Supply: 5V 2A DC
• Power Consumption: 5 Watts (max)
• Operation Temperature: 32~122F
• Storage Temperature: 14~170F
• Relative Humidity: 5~90% RH (no condensation)

Downloads

• Aurora MCX-HTS-K Manual (PDF)
