 Home > Auto Switchers -> Auto Switching Wall Plates -> Aurora -> DXW-2E-S2-W-4K 4K HDBaseT HDMI/VGA Wall Plate Kit, w/ Receiver - White

Aurora DXW-2E-S2-W-4K
4K HDBaseT HDMI/VGA Wall Plate Kit, w/ Receiver - White

Part #: DXW-2E-S2-W-4K
Satisfaction Guaranteed!
MSRP: $1,499.00
Our Price: $1,365.61
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top DXW-2E-S2-W-4K Specifications
  • This Kit comes with: (1) White DXW-2E Wall Plate, (1) DXE-CAT-RX2-4K HDBaseT Receiver, (1) PS0080-1 Power supply
  • DXW-2E Specs Connections: 1 HDMI, 1 VGA, 2 audio, 1 LAN
  • Provides auto switching and input select buttons
  • Distance: 330ft over CAT 5e/6/7 cable (1080p 60Hz 48bit),500ft over CAT 6 cable (1080p 60Hz 24bit), 600ft over one CAT 6a cable (1080p 60Hz 24bit)
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008


Aurora Multimedia's DXW-2E-S2-W-4K is a 4K UHD Wall Plate Kit with a HDBaseT 230' CAT Extender for HDMI and VGA digital signals. This Kit includes the DXW-2E 2 gang multi-input Decora style wall plate with HDBaseT CAT extension, and the DXE-CAT-RX2-4K HDBaseT extender, and the PS0080-1 Power Supply.

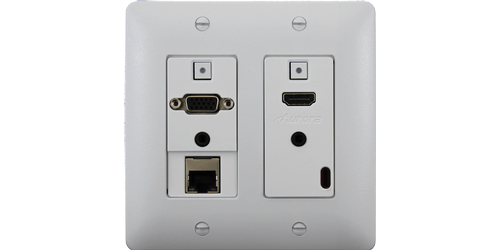

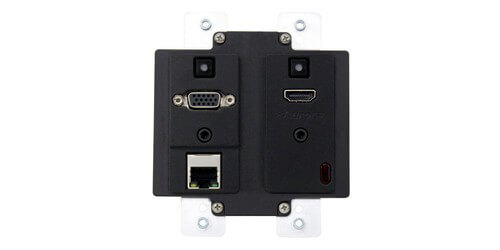

The Aurora DXW-2E is a wall plate that houses VGA, HDMI, and LAN connections. It takes all these signals as well as embedded audio and can transmit them up to 600' over HDBaseT via an Ethernet cable to a compatible receiver, not only does it send the signal but it even converts and scales the signal. The wall plate is even an auto switcher, it will always detect the last plugged in input and automatically switch on your display.

It features support for HD video, IR control, and can be powered locally with an optionally purchased power supply or via the receiver. Push buttons on the front allow for local control of devices if auto switching isn't required. If connected to a compatible receiver the LAN jack is a nice feature not having to have another wall plate for data.

LED backlights on the buttons always let you know which signal is active for ease of use. The DXW-2E is a highly attractive wall plate with auto switching, HDBaseT transmission, and LAN extension.

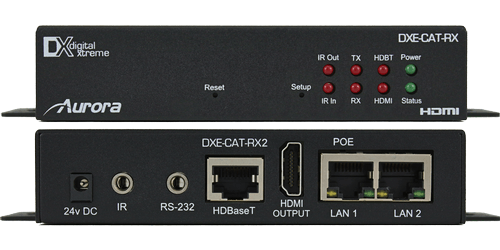

The Aurora DXE-CAT-RX2-4K is an HDBaseT receiver that can accept your video connection as well as power, Ethernet, bi-directional RS-232, and IR up to 600'. The receiver is HDCP compliant, supports 3d, resolutions up to 4K, and includes a mount for wall or rack mounting. A unique feature of this model is that it has a PoE port so power can be injected from a PoE switch. All the connections are on one side with LED lights on the front, the DXE-CAT-RX2-4K is easy to install..

This Receiver and Wall Plate both carry 3 year warranties from Aurora Multimedia, and the kit also comes with the PS0080-1 power supply.


  • Fits in standard two gang plate
  • Sends: HD video, IR, RS-232, Ethernet
  • Receives power from compatible receiver or local power supply (Included)
  • Supports 3D pass through
  • HDCP compliant
  • Color depth: 48bit
  • Size: 3.728" x 4.331" x 1.404" (1.04" Box Depth)
  • Includes: Wall plate cover
  • Warranty: 3 year limited
  • DXE-CAT-RX2-4K HDBaseT HDMI receiver
  • Receives: Power, Ethernet, bi-directional RS-232, and IR
  • Distance: 330ft at 1080p 60Hz 48bit color depth, up to 600ft with CAT 6a shielded cable at 24bit color depth
  • Includes mount
  • HDCP Compliant
  • HDMI 3D Complaint
  • Bi-directional RS-232 & IR & LAN
  • LAN POE (Power-Over-Ethernet) can power both TX & RX without wall supplies
  • Supports 3d
  • 3 year limited warranty
  • PS0081-1 Specs 48v DC 24 Watt PoE Gigabit Power Supply Injector
  • Input Voltage: 90-254V AC 50/60Hz
  • Output Voltage: 48V DC
  • Output Current: 500mA
  • Power: 24 Watts
  • Connectors: 1- RJ-45 LAN, 1 RJ-45 PoE (PSE) Output
