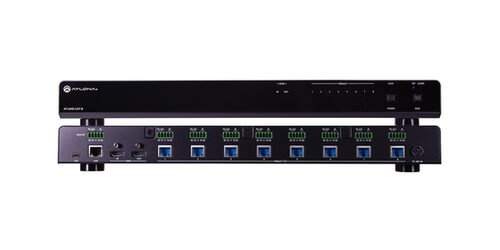

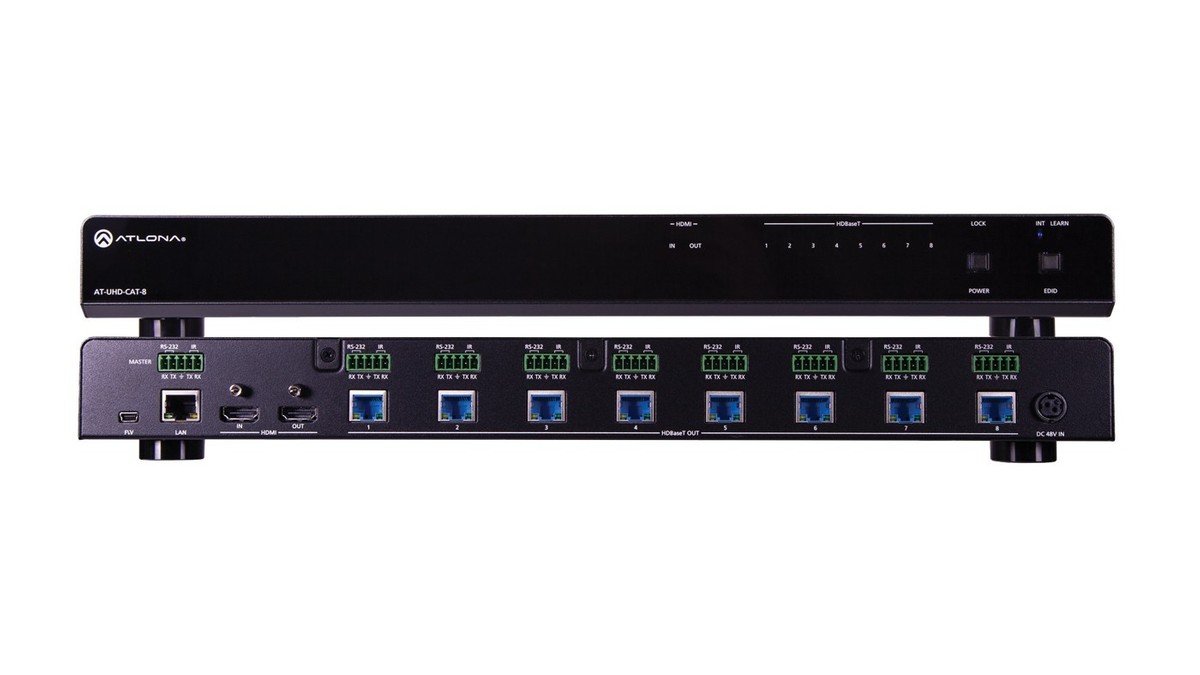

Atlona AT-UHD-CAT-8
1x8 4K HDBaseT Distribution Amplifier - HDCP 2.2
Part #: AT-UHD-CAT-8
This product has been discontinued
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top AT-UHD-CAT-8 Specifications
- Inputs: 1 HDMI
- Outputs: 8 HDBaseT
- HDBaseT distance: 230' for 1080P, 130' for 4K
- HDBaseT sends power to the receivers
"Great support and help from technical support!"
-Patrick S.
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

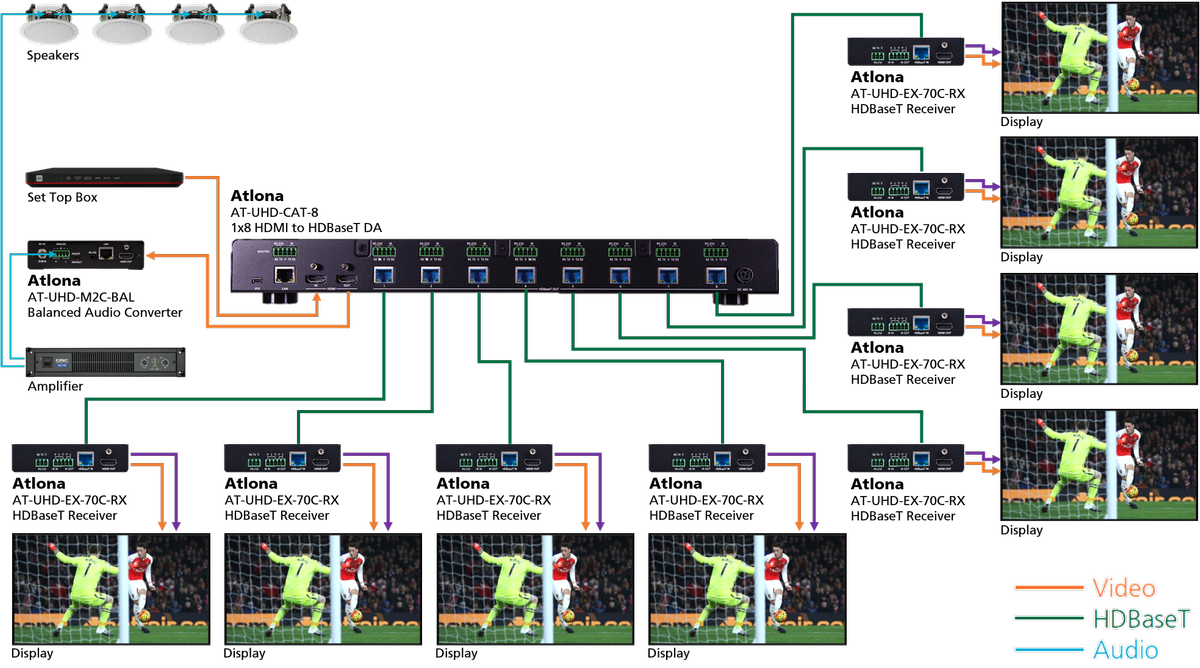

The Atlona AT-UHD-CAT-8 is a 1 HDMI input and 8 HDBaseT output 4K distribution amplifier, it will take your single source and send it out to up to 8 displays up to 230' away (130' for 4K). It also sends power to the receivers so they do not require a power supply simplifying installation. The distribution amplifier supports resolutions up to 4K60 4:2:0 with HDCP 2.2 compliance. The unit can be controlled via the front control buttons, CEC, IR, or RS-232.
The Atlona AT-UHD-CAT-8 is compatible with the sold separately AT-UHD-EX-70C-RX receivers. The unit is a perfect solution when you need to send your signals a long distance with the highest resolution.
Specifications
- Additional HDMI output to daisy chain multiple units together
- Max resolution: 4K60 4:2:0
- HDCP 2.2
- Color Depth: 8-bit, 10-bit, 12-bit
- Bandwidth: 10.2Gbps
- AMS ready
- Control: Front control buttons, CEC, IR, or RS-232
- Includes: International power supply, under table brackets, rack ears
- Dimensions: 1.73" x 17.24" x 10"
- Weight: 7.05lbs
- Warranty: 10 years
