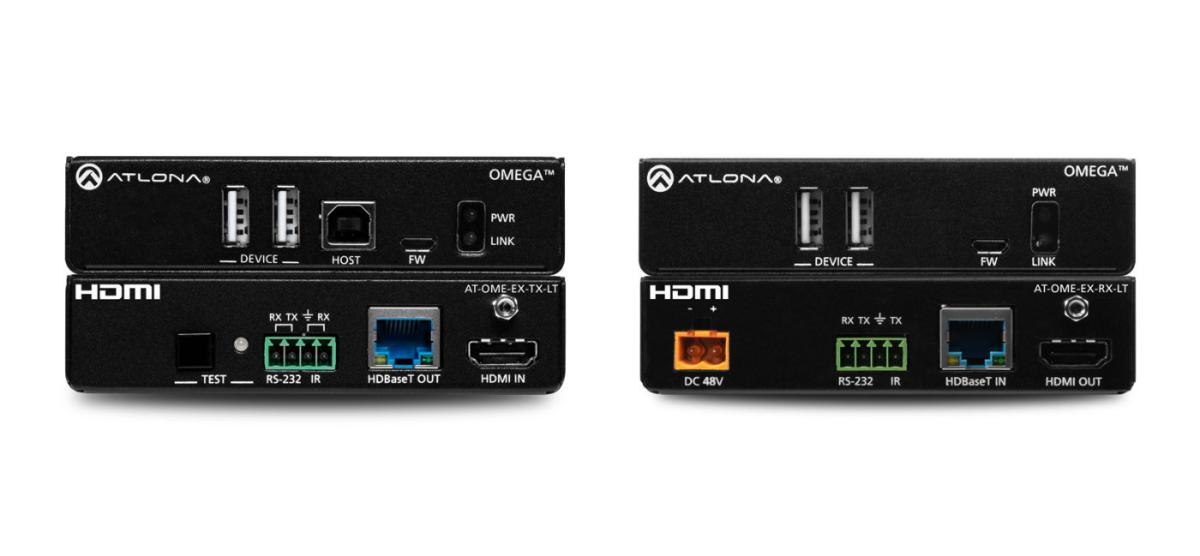

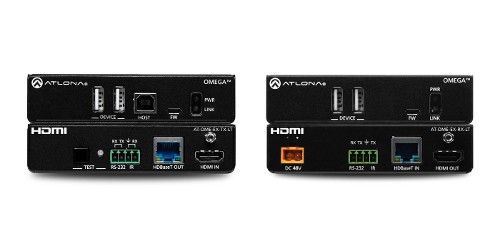

Atlona AT-OME-EX-KIT-LT
HDBaseT TX/RX for HDMI with USB
- Video: HDMI Specification, HDMI 2.0, HDCP 2.2
- Resolution / Distance: HDMI In/Out - up to 15' and 1080p up to 30', CAT5e/6 - 4K/UHD up to 115' and 1080p up to 200', CAT6a/7 - 4K/UHD up to 130' and 1080p up to 230'
- TMDS Clock: 300 MHz
- Color Space: YUV, RGB
Description

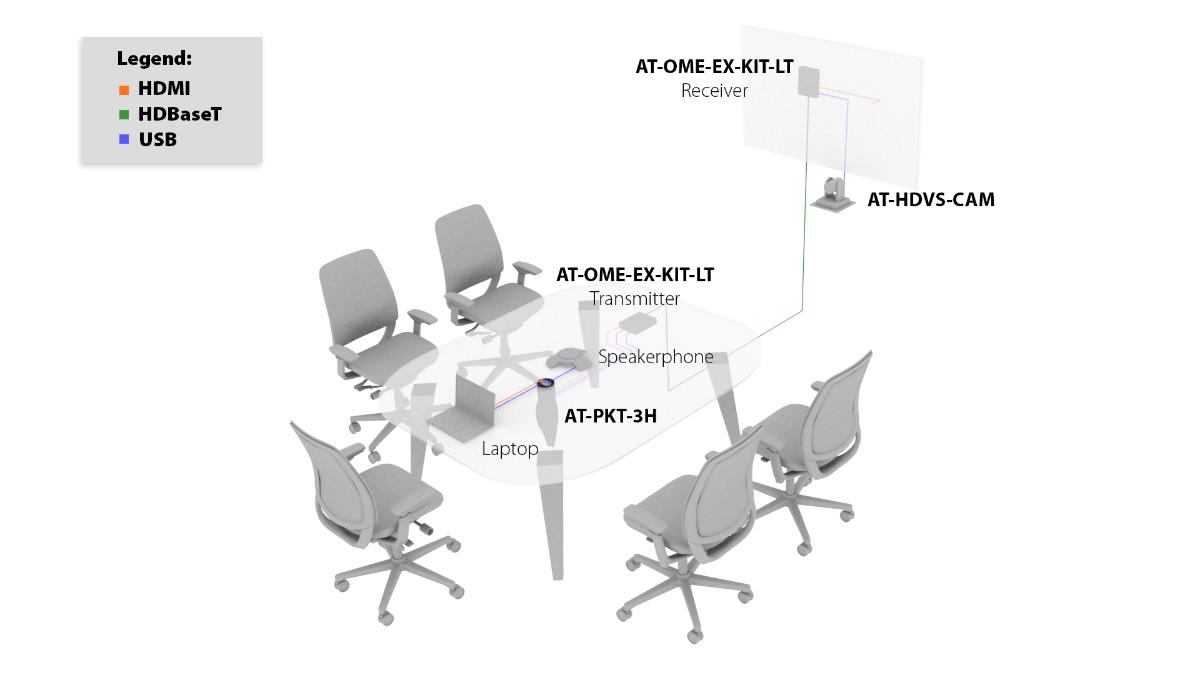

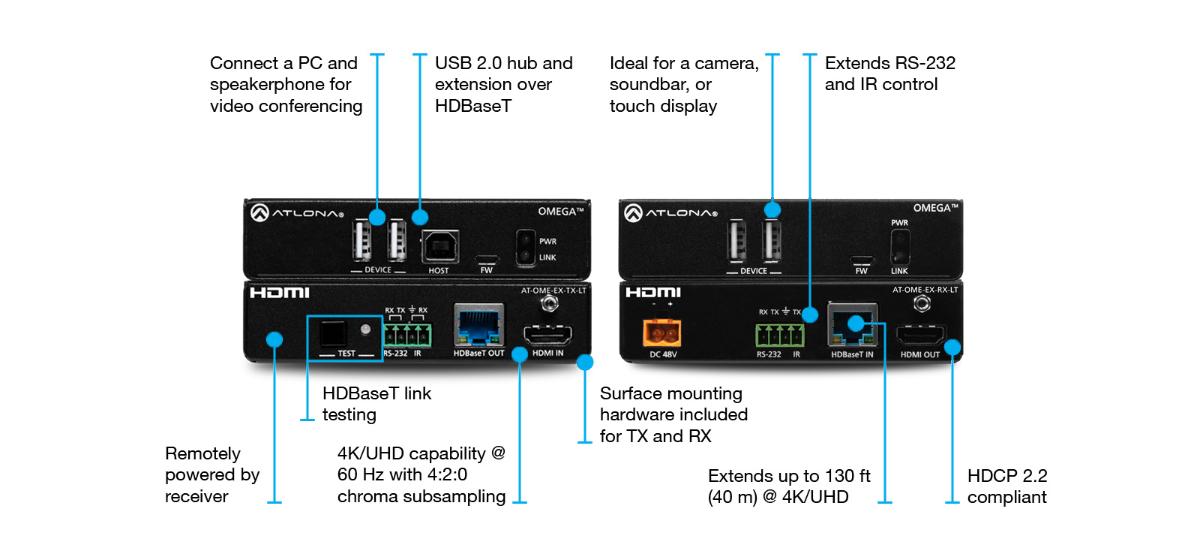

The Atlona AT-OME-EX-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60 video. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-KIT-LT is HDCP 2.2 compliant and extends IR and RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or display.
The OME-EX-KIT-LT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The receiver remotely powers the transmitter over HDBaseT. Also available with the OME-EX-KIT-LT is the ability to test the integrity of the HDBaseT cable link between the transmitter and the receiver.
Specifications
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- Audio Pass-through PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos , DTS , DTS-HD Master Audio , DTS:X
- Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Audio Bit Depth: Up to 24-bit
- USB Signal 2.0
- Maximum Data Rate: 120 Mbps
- Control: CEC Pass-through, RS-232 Pass-through from control system to sink device
- supports baud rates from 2400 to 115200, IR Pass-through from control system to sink device
- UHD/HD 4096 2160(DCI)@60(1)/30/24 Hz, 3840 2160(UHD)@60(1)/50/24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
- VESA: 2560 2048, 2560 1600, 2048 1536, 1920 1200, 1680 1050, 1600 1200, 1600 900, 1440 900, 1400 1050, 1366 768, 1360 768, 1280 1024, 1280 800 1280 768, 1152 768, 1024 768, 800 600, 640 480
- Power Consumption: 30.5 W (TX/RX), 13.5 W (TX), 17.0 W (RX)
