AMX HPX-AV102-MDP-R
MyTurn, Mini DisplayPort Retractable 4K60 HydraPort Cable

Manufacturer SKU: FG552-36
This product has been discontinued

Top HPX-AV102-MDP-R Specifications
  • Retractable 5' mini DisplayPort
  • Pigtail: 6' with HDMI on the end
  • Resolution: 4K60 (4096X2160)
  • Bandwidth: 18Gbps
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

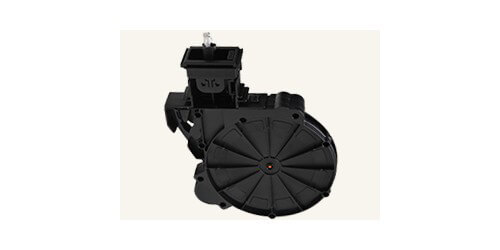

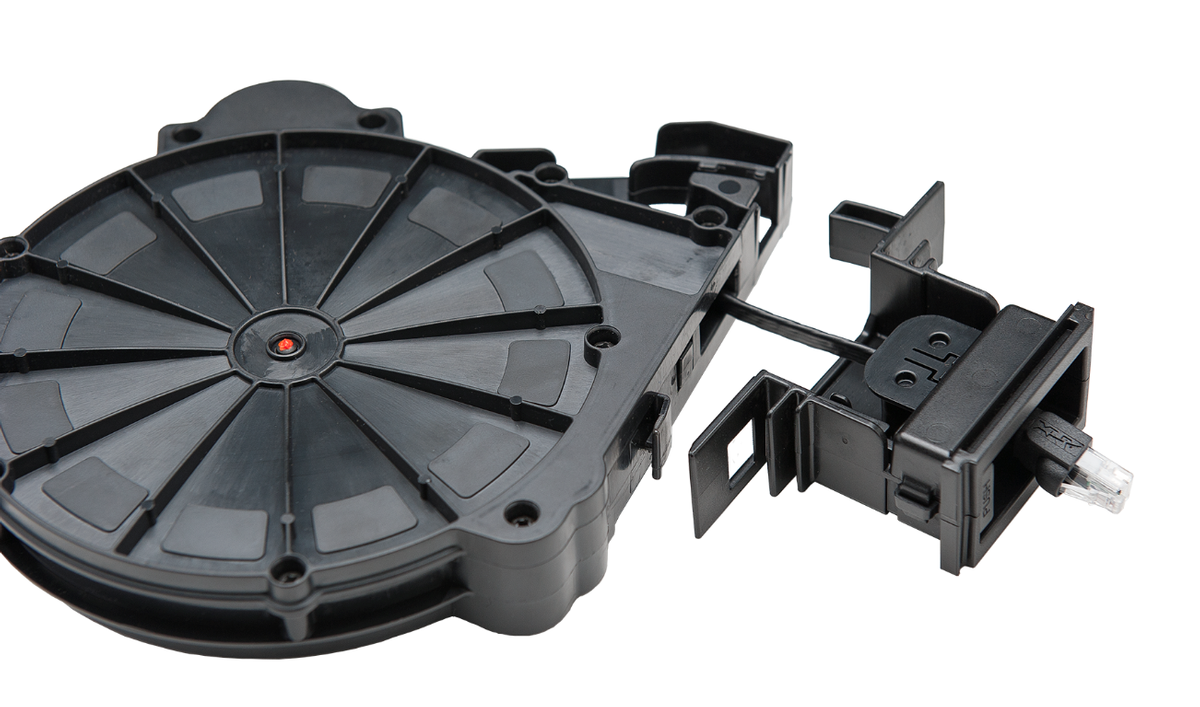

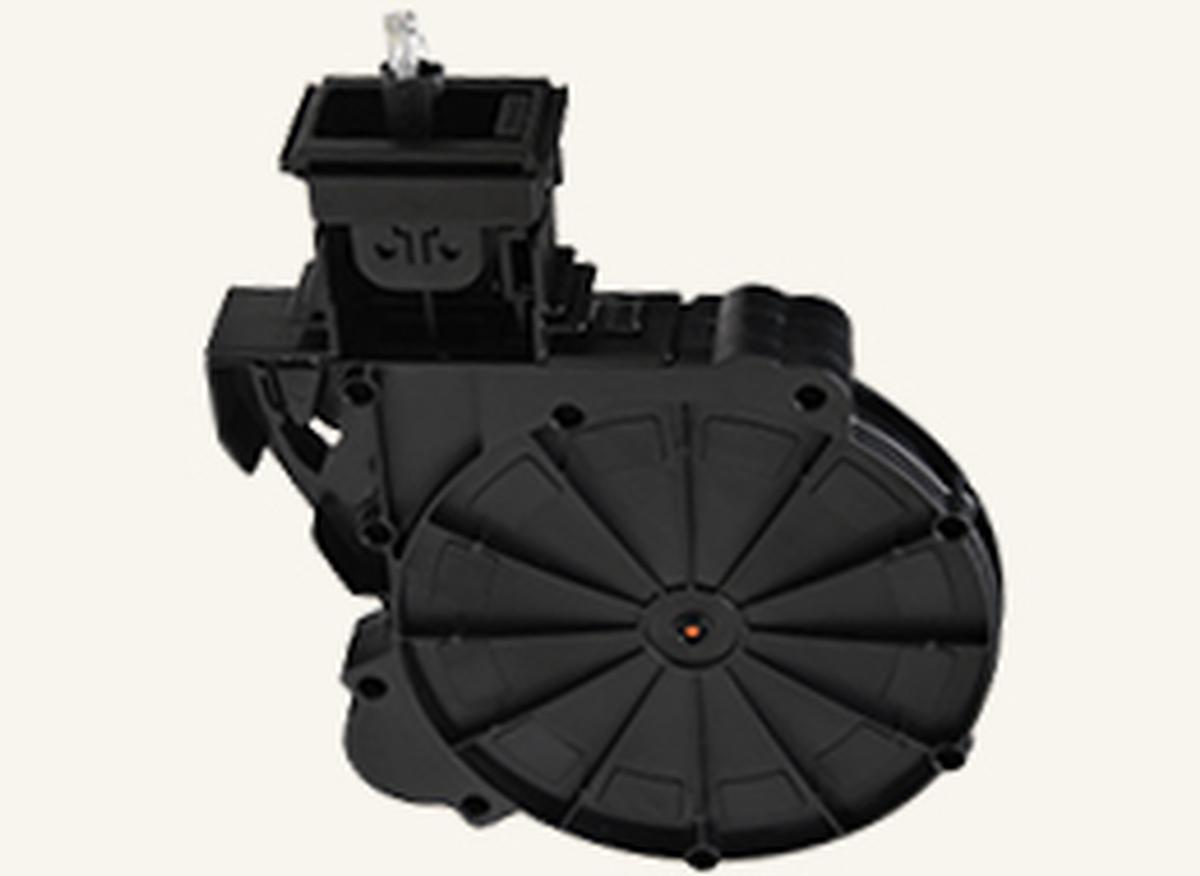

The AMX HPX-AV102-MDP-R is a retractable mini DisplayPort cable that is used in AMX HydraPort table boxes. The cable pulls out up to 5' but can be pulled out to any length under that.  The cable supports 4K60 resolutions and provides a compact easy to use solution that will always have a cable ready to use at your table.

The cable is MyTurn ready and when used with the HPA-MYT-TX MyTurn button provides 1 button touch to auto switch to the users screen on the rooms display.  To use clip the MyTurn button (sold separately) on the cable, and plug the receiver (sold separately) into the back I/O port on a Solecis SDX Digital Switcher or other AMX control device. Each receiver can accommodate up to 8 MyTurn buttons. If the receiver gets plugged into a Solecis SDX switcher then no programming is required, it is truly plug and play read to go.

The 6' pigtail length can be extended using the optionally purchased AMX EXTR-HDMI-PWR extender, it can extend your 4K60 signal up to 39'.

If you need help custom configuring a system please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

  • Deep Color and 3D Format Supported
  • MyTurn ready button ready

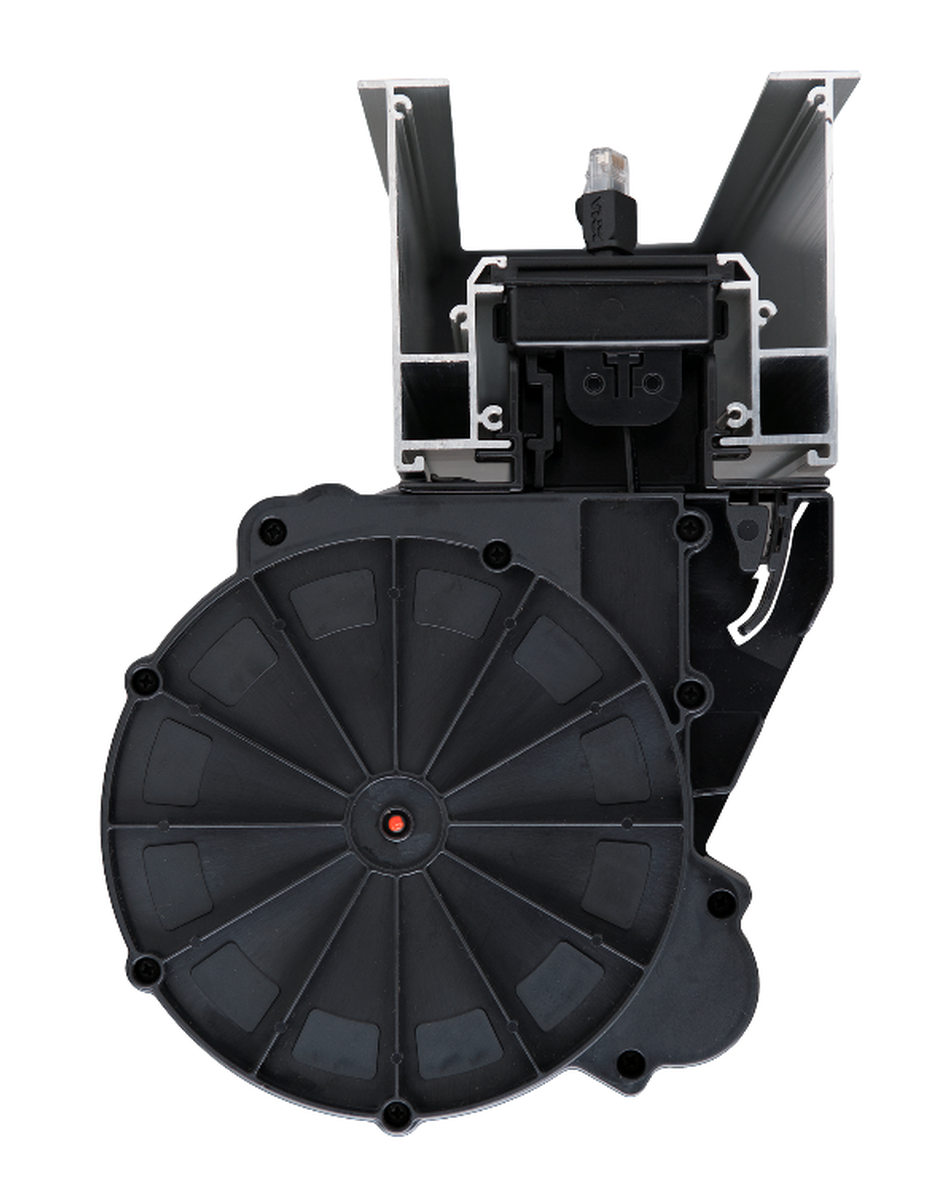

  • Clips into HydraPort table boxes
  • Warranty: 3 years
