Altinex TNP530-1HDMI1CAT6
Pop Up AV Box w/ 2 Power & Retractable HDMI and CAT6

Part #: TNP530-1HDMI1CAT6
Satisfaction Guaranteed!
MSRP: $1,035.00
Our Price: $963.50
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $7 Off!
Color Choice:
Top TNP530-1HDMI1CAT6 Specifications
  • Connections: 2 power, 2 Cat6, 2 USB, 1 retracting HDMI, 1 retracting Cat6
  • Cables: Power: Single 9', Cat6: 6' female to male, USB: 6' Type A female to male
  • Retractable cables: The 1 HDMI and 1 Cat6 are male and pull out 4', the pigtail on the other side is 4' male
  • Color: Black anodized aluminum or silver anodized aluminum
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008

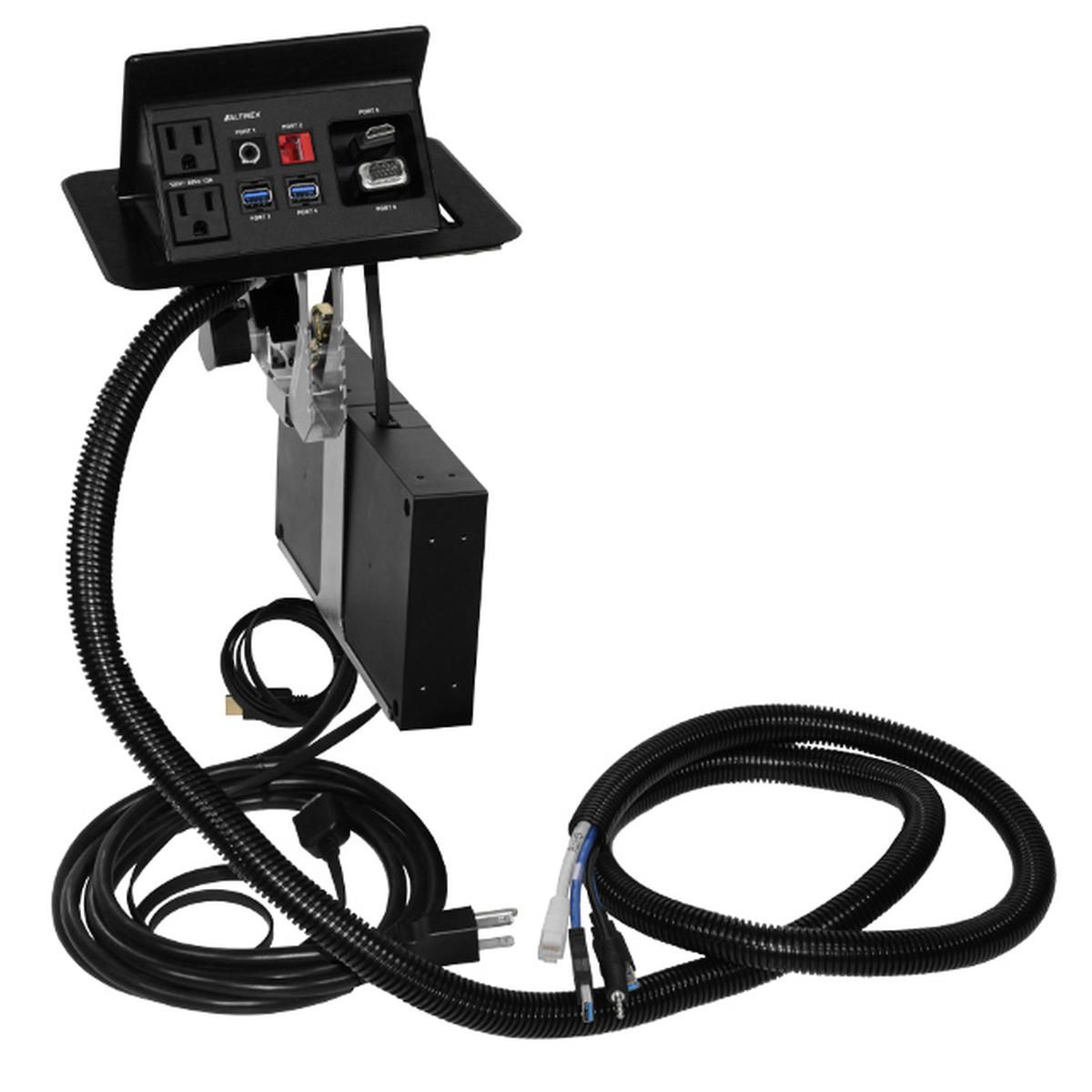

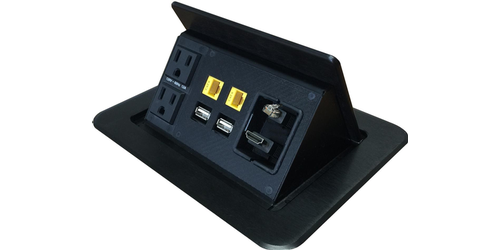

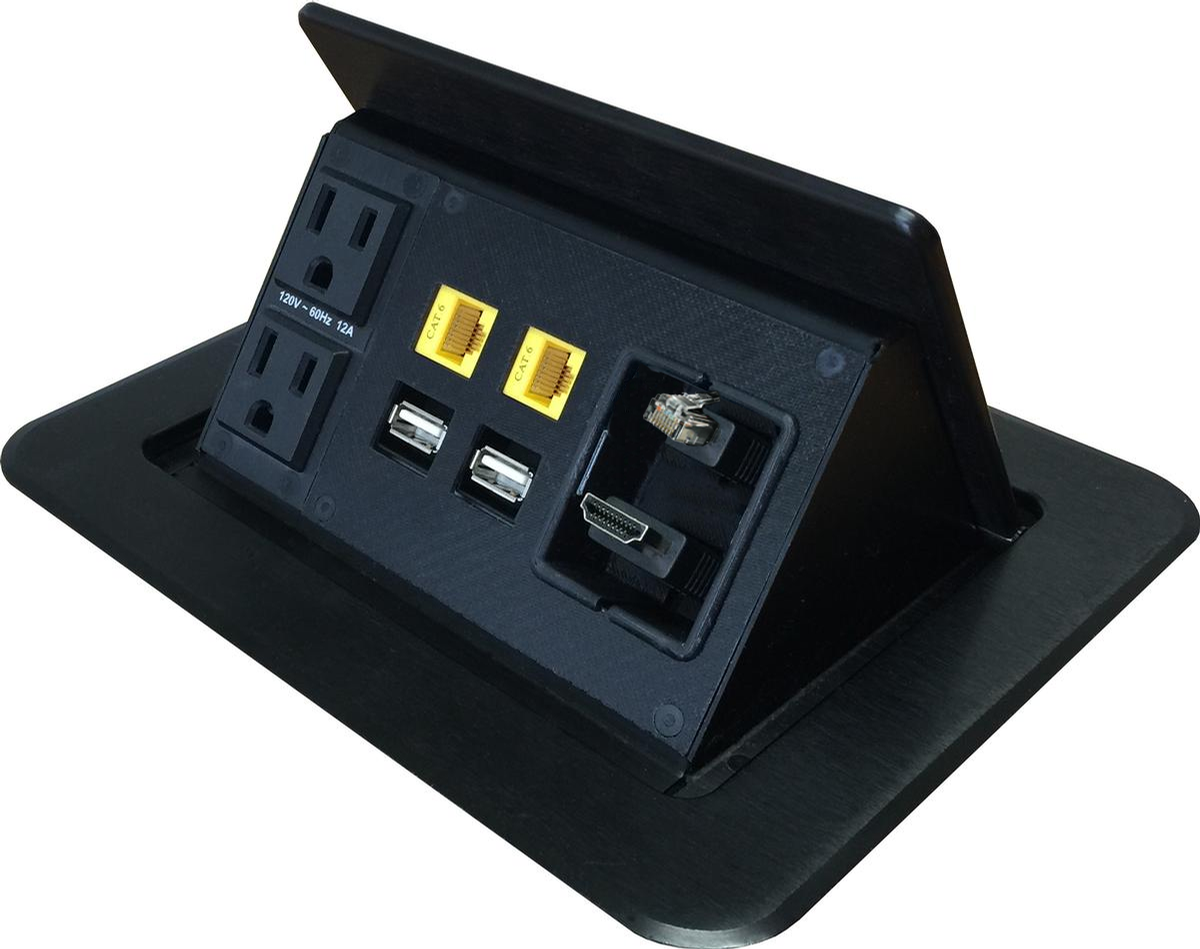

The Altinex TNP530-1HDMI1CAT6 is a tilt up table box that pops up out of your table when pressed exposing your connections consisting of; 2 power, 2 Cat6, 2 USB, 1 retracting HDMI,  and 1 retracting Cat6. The HDMI and 1 Cat6 connection are retractable, this is the worlds first pop up table box to have retractable cables.  The HDMI and Cat6 connections pull out up to 4' when needed, when you are finished they retract back into the box and out of the way.  You will always have your video connections ready to use and will never have to look for a cable.

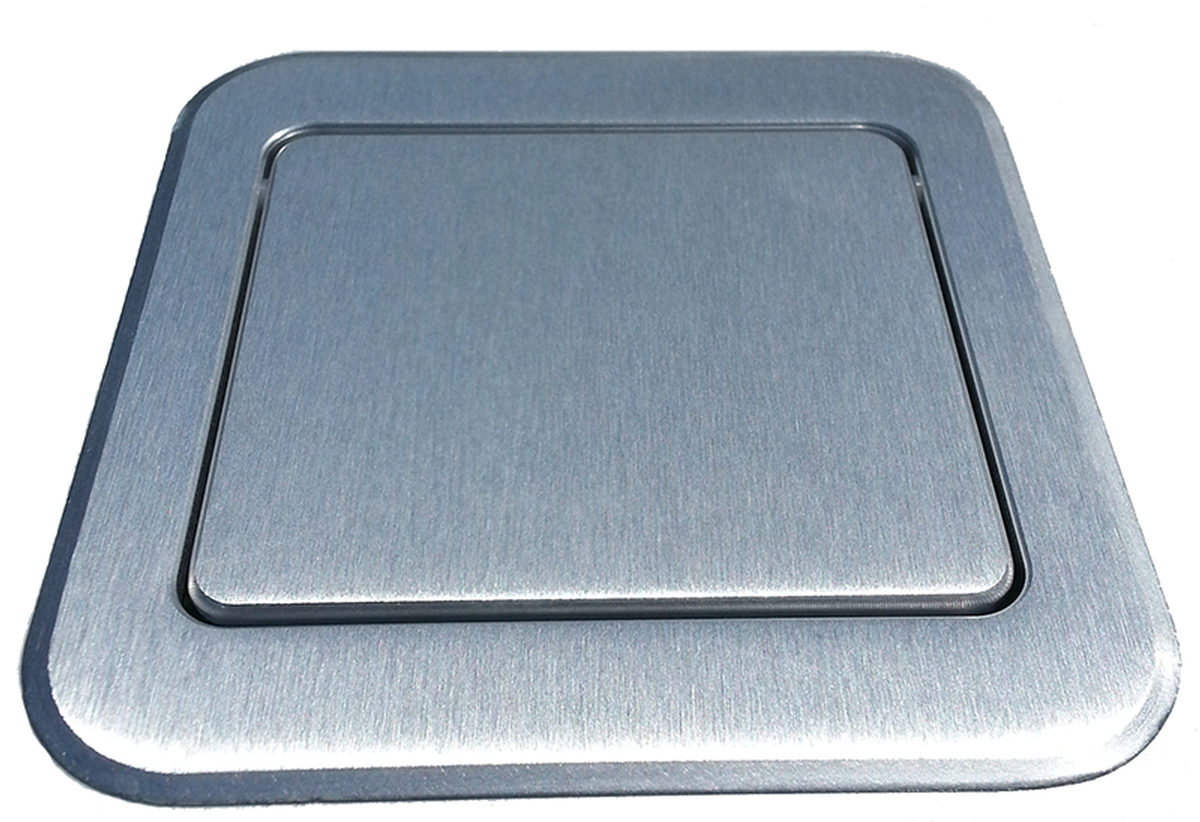

The box is always flush in your table and comes in a beautiful long lasting black anodized aluminum or silver anodized aluminum.  To open all you do is press the top and a leaf spring pops the unit up, to close simply press down till it latches.

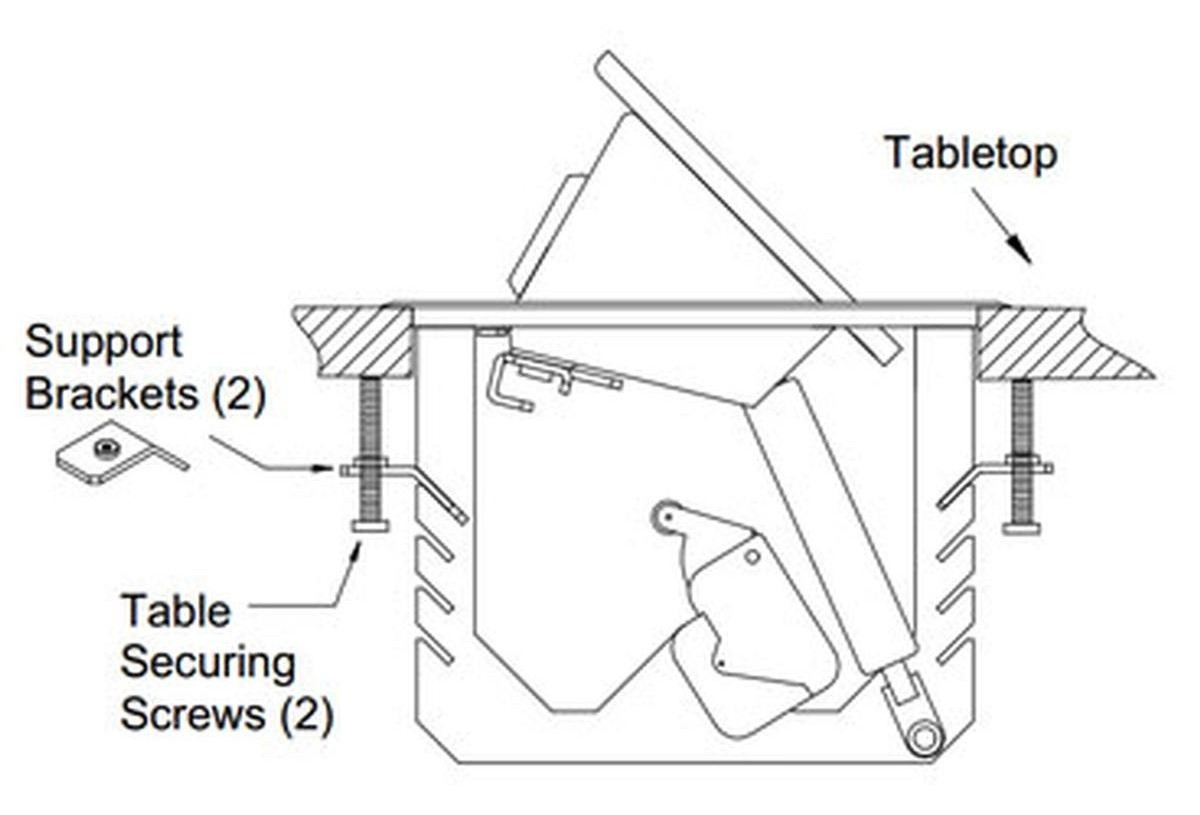

To install cut your hole and drop in, secure to the underside of the table with the included mounting hardware. The Altinex TNP530-1HDMI1CAT6 is the first pop up box to have retractable cables for the ultimate presentation table box.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.


  • Bezel dimensions: 7.86" x 6.53"
  • Cutout dimensions: 7.46" x 6.13"
  • Table thickness: .75" to 2.5"
  • Depth under table: 11.4" with retractors installed on bottom of unit
  • UL and c-UL listed
  • Mounting hardware included
  • Warranty - Table box: 10 years, retractable cables: 3 years
