1080p Full 3D Projector, HDBaseT, 16:9, DLP Technology, 5500 Lumens
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
The Optoma EH515T 1080p ProScene full 3D lamp projector. Being a feature rich professional Pro A/V model, this is an ideal projector for corporate and business class environments for presentations, training sessions, and marketing type applications. This unit boasts a very nice 5500 Lumens brightness, uses 16:9 HDTV aspect ratio, a contrast ratio of 10,000:1, and over 1.07 Billion displayable colors. Using DLP technology this 365W lamp based EH515T will provide accurate colors and great contrast for both dark and white images and has a lamp life of 3000/4000 hours. This device is equipped with a variety of inputs, including HDMI built-in MHL technology, that allows you to connect to a wide variety of HD devices, such as a smart phone or tablet, to share content, documents, and video to be presented onto the big screen. This version is very similar to the EH515 model, with the addition of built-in HDBaseT that is ideal for long cable runs in the install environment. Allows for transmission of uncompressed HD video, audio, Ethernet, and controls using a standard LAN cable up to 330'.
Other primary features of the EH515T Lamp-Based projector include: Full HD, Four corner correction, High Contrast, Full 3D, AMX compatibility, Integrated Speaker, Eco AV mute, Pure Shift, USB Power, Image Stacking, Horizontal and Vertical Lens shift and Keystone, 1.8x zoom ratio, and Brightness matching. Full HD (1280 x 720) has more than twice the resolution of HD Ready and is compatible with HDTV broadcasts and high-definition media to project impressive full 1080p images and video in their original digital brilliance. Four corner correction is an amazing function on this device as it allows the projector to be placed in multiple positions, other than the typical straight on view. This works by allowing you to individually warp each corner of the image to create a perfectly square image which is ideal for image stacking, uneven walls, or where projector placement is awkward and needs to be installed at an angle.
Being High Contrast it will add more depth to you image, making for brighter whites and ultra-rich blacks, images will truly come alive and text will appear more crisp and clear to aid in business meetings or educational settings. Full 3D is easily achieved and this projector can display true 3D content from practically any 3D source, to include 3D Blu-ray players, 3D broadcasting, or next gen gaming consoles, and it supports for 144Hz rapid refresh to provide ultra-smooth flicker free images. Auto Power off will automatically turn the projector off after a set period of time if not being used to help maintain lamp life and energy savings, and with the specially designed energy saving lamp mode, you can reduce the power consumption bu up to 70% to help reduce cost of maintenance and save on lamp life. Brightness matching makes it so multiple units can be used together with a stepped lamp dimming power mode, to make sure if using two projectors for digital signage or events that both projectors will create one seamless image.
There are an array of control options for this model, including an extensive set of RS-232 commands to allow for a simple and easily managed device using any RS-232 control system. Alternatively, you can use LAN control or a wired remote connection. The LAN control works through the compatible RoomView software (not included) which allows you to power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer. With LAN control you can also control and alter projector settings using the simple web browser. Through the Wired remote connection, you have the ability to control all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector, which can be an invaluable asset when using multiple units during live events.
When needing a high-quality very well rounded full 3D projector for your office, conference room, house of worship, or educational training environment, the EH515T from Optoma is a great low cost solution that will meet and exceed all your projection solution needs. Comes with a 3 Year warranty on the machine, and 1 year warranty on the Lamp itself.
- Lamp Based Projector
- Display Technology: Single 0.65 WXGA Chip with DLP Technology
- Max. Resolution: 1080p (1900 x 1080)
- Brightness: 5500 Lumens
- Aspect Ratio: 16:9, 4:3, Auto
- Contrast Ratio: 10,000:1 (full on/full off)
- Displayable Colors: 1.07 Billion
- Lamp Life: 3000/4000 Hours (Bright/Eco)
- Lamp Type: 365W

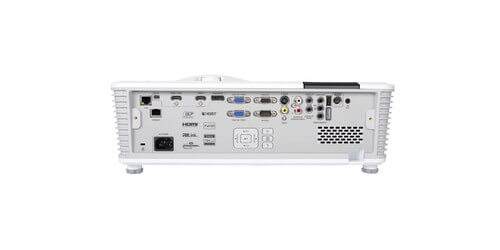

- I/O Connectors: 1x HDBaseT, 1x Display port, 2x HDMI 1.4a + MHL, 2x VGA-In, 1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1x Audio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3D Sync vesa port, RS-232C, mini-USB service/ control, RJ45, AC power (3 pin)
- Full 3D Support
- USB Power: for use with an HDMI dongle for example Google Chromcast
- Projection Method: Front, rear, ceiling mount, table top
- KeyStone Correction: +- 30 Degree Horizontal
- Lens Shift: Vertical +-20 degrees / Horizontal +-10 degrees
- Throw Ratio: 1.2:1 - 2.16:1
- Projection Distance: 4.27' to 26.24'
- Image Size: 26.6" - 302.1"
- Optical Zoom: 1.8x Manual zoom
- Digital Zoom: 0.8 - 2.0
- Audio: 20W - 2x 10 Watt Built-in Speakers
- Control: RS-232 and Lan
- Remote Control: IR and Wired Control
- Noise Level: 28dB
- Power Supply: AC input 100 - 240V, 50-60Hz, auto-switching
- Included Items: EH515T projector, AC power cord, VGA cable, remote control, batteries, multilingual CDROM user's manual, basic user manual, and warranty card
- Security: Kensington lock port, security bar and password protection
- Weight: 13lbs
- Warranty: 3 year Optoma Express Service & 1 year on Lamp
