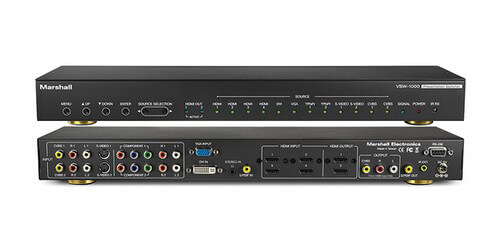

4K Multiformat Presentation Switcher: HDMI, DVI, VGA
Introducing the Marshall VSW-1000 4K Multiformat Presentation Switcher with HDMI, DVI, VGA and Composite/Component input as well as HDMI output. This unit supports analog and digital conversion as well as scaling. Interlaced video inputs, such as composite, component, and S-Video, can be improved with the embedded advanced deinterlacer. Another advanced feature is that it also supports stereo analog audio and S/PDIF inputs into HDMI outputs. Which allows users to combine asynchronous audio and video into HDMI compliant AV signal for even longer range lossless transmission.
Additionally, this device is designed to make format conversion much simpler, with available video formats to common HDMI, VGA, and CVBS outputs. It prevents bottleneck issues, ensuring the users applications run smoothly. Audio support allows input video and audio to be HDMI ready. To control this device, the user can utilize the front panel push buttons or the IR remote control, both offer easy routing, scaling, and conversion of video. This product is backed by a one year warranty from Marshall.
Other Features of this Switcher Include:
- Supports noise reduction and video enhancement features (only for HDMI output)
- Over / Under scan adjustment (only for HDMI output)
- Video H/V mirror (only for HDMI output)
- Inputs: 2x YPbPr&L-R, 2x S-Video, 2x CVBS&L-R, 1x VGA, 1x DVI, 1x Stereo, 1x SPDIF, 4x HDMI
- Outputs: 2x HDMI, 1x VGA(Optional), 1x CVBS, 2x RCA
- Input Bandwidth: HDMI 225 MHz, DVI/ VGA 165 MHz, Component 74.25 MHz
- Output Bandwidth: 297 MHz
- S/PDIF & Stereo input supported
- 8-CH audio down-mix to 2-CH
- Y,Pb,Pr: 3x RCA (Video), 2x RCA (Audio)
- S-Video: 9 pin S-Video
- CVBS: 1x RCA (Video), 2x RCA (Audio)
- Control: IR Remote, RS-232, OSD control interface
- RS-232 firmware
- Power Supply: 5V 2A DC
- Power Consumption: 10W
- Weight: 3.6 lbs.
- Dimensions: 17.25" 1.8" 4.8"
- Included Items: IR receiver, IR remote, Installation software CD, User Manual, 2x Rack Mount Ears
- Warranty: 1 year
