Home > Wall Plates and Inserts -> Decora Inserts -> Liberty AV -> DL-1H1A1U-WPKT-W Wall Plate Single Decora HDBaseT Extender Set w/ Receiver

Liberty AV DL-1H1A1U-WPKT-W

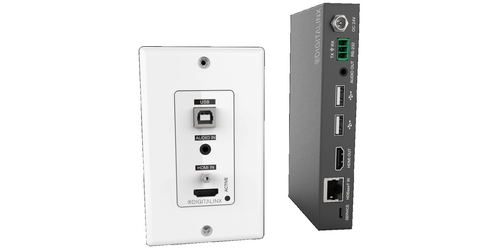

Wall Plate Single Decora HDBaseT Extender Set w/ Receiver

Satisfaction Guaranteed!
Part #: DL-1H1A1U-WPKT-W
Regular Price: $640.48
Instant Savings: -$64.04
Quantity: $576.44
Click for $10 Off!
Click to apply coupon!
0 out of 5 based on 0 ratings.

Description

Features and Benefits

  • HDMI up to 4k, 3.5mm audio, USB-B 2.0 High Speed Extension
  • Pass-Through 3.5mm analog audio passes audio independent of HDMI port
  • Extend USB2.0 High Speed

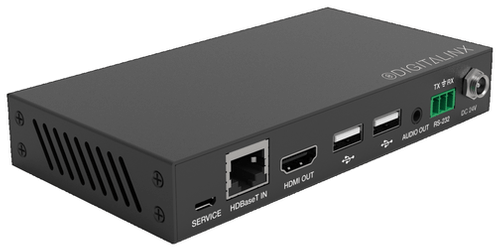

  • Box style receiver with HDMI, 3.5mm audio, and 2 USB-A ports
  • HDMI 1.4b, HDCP 2.2 and HDCP 1.4 compliant
  • Supports Video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
  • Supports all HDMI audio formats
  • Single cable 40m for 4K / 70m for 1080P
  • RS232 & CEC pass-through
  • Dedicated 3.5mm audio independent from the HDMI signal
  • Remote power from Receiver to wall plate transmitter

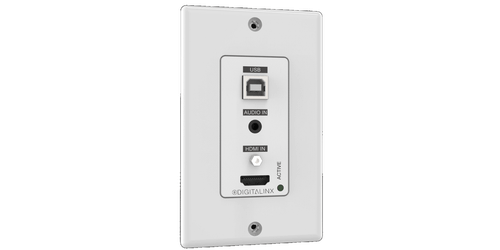

  • TX is standard US 1-Gang Decorator format

Specifications

  • VIDEO
  • Video Inputs (TX): (1) HDMI
  • Video Input Connector (TX): (1) HDMI type A
  • Input Video Signal: HDMI
  • Video Output (RX): (1) HDMI
  • Video Output Connector (RX): (1) HDMI type A
  • Output Video Signal: HDMI
  • Input Resolutions Supported: Up to 3840 x 2160 @ 60Hz, 4:2:0, 8bit color depth
  • Standards: Compliant with HDMI 1.4b & HDCP2.2
  • USB
  • Supported USB Standard: USB 2.0 High Speed
  • USB Data Transfer Bandwidth: 190Mbps
  • USB Port Type: (1) USB Type B (TX) / (2) USB Type A (RX)
  • AUDIO
  • Supported Output Formats (HDMI): LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master, Audio, DSD
  • Supported Output Formats (Analog): PCM 2.0
  • Audio Input / Output: Stereo analog
  • Audio Input / Output Connector: (1) 3.5mm TRS audio jack
  • Audio Output Impedance: 70 Ohms
  • Frequency Response: 20Hz~20K Hz
  • CONTROL
  • Control Port / Connector: (1) RS232 (TX) / 3 phoenix connector / (1) RS232 (RX) / 3 phoenix connector OTHER
  • System Bandwidth: 10.2Gbps
  • Operating Temperature: 0C ~ +40C
  • Storage Temperature: -20C ~ +60C
  • Humidity: 20% ~ 90%
  • Power Supply Input:100V~240V AC
  • Output: 24V DC 1A
  • Power Consumption: 9 watts
  • Dimension (W*H*D) TX: 4" x .1.2" x 1.8" Dimension (W*H*D) RX:: 5.5" x .9" x 2.9"
  • Weight: TX: 0.36 lbs / RX: 0.44 lbs
  • Warranty: 2 years
  • Certification: CE, FCC, RoHS
