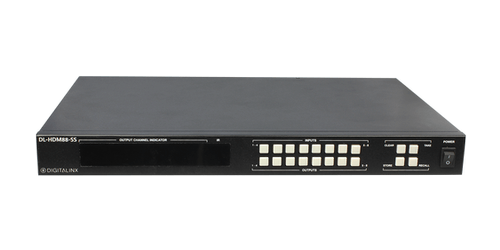

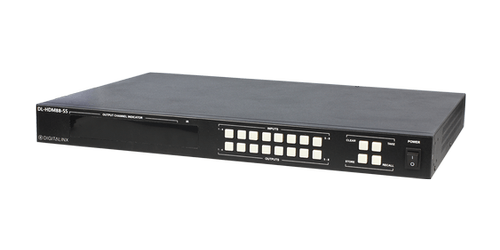

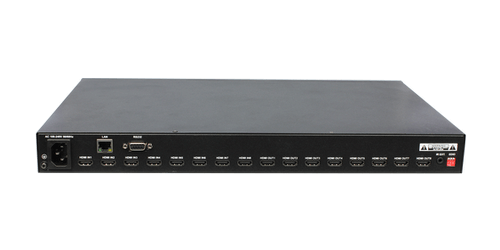

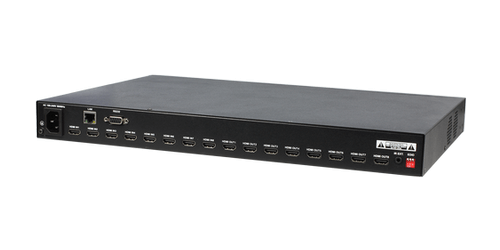

Liberty AV DL-HDM88-SS
8x8 4K HDMI Matrix Switcher - HDCP 2.2 & HDMI 2.0, 4K60 4:4:4
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
The Liberty DL-HDM88-SS is an 8x8 HDMI matrix switcher with 4K support, the matrix also supports HDMI 2.0 and HDCP 2.2 with resolution support up to 4K@60Hz 4:4:4 with HDR output support for each channel. There are 8 HDMI inputs and 8 HDMI outputs, the inputs and outputs can be controlled via the front panel, included remote control, IP, IR, and RS-232. Not only will the matrix route your video but it will also embed your HD audio including up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio.
The matrix features advanced independent DIP switch for EDID management. The DL-HDM44-SS offers HDCP handling, including the ability to turn input HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.
The Intelix DL-HDM88-SS is an affordable solution for your local 4K distribution needs, or connect optional purchased extenders for long distance distribution.
- 8x8 HDMI 4K matrix switcher
- Inputs: 8 HDMI
- Outputs: 8 HDMI
- Resolution Supported: Up to 4K@60Hz 4:4:4 8 bit
- Control: Front panel, included remote control, IP, IR, and RS-232
- HDMI 2.0
- EDID management
- Supports: 3D, HDCP 2.2
- Embedded audio: Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
- Includes: Installation Guide, IR Remote, IR Receiver, Rack Mounting Ears with Screws, US Power Cable, USB to UART Cable
- Passive HDMI distance: 5'
- Dimensions: 1.69 in x 17.20 in x 11.77 in
- Weight: 9.3lbs
- Warranty: 2 years
