Kramer AV VM-1120
1:10 (B) Audio Distribution Amplifier (XLRs)
- Inputs: 2 balanced stereo or 4 balanced mono audio on XLR (F) connectors
- Outputs: 10 balanced stereo or 20 balanced mono audio on XLR (M) connectors
- Grouped Audio Level Controls
- Dual Mode: Configure as 1:20 (mono) or 1:10 (stereo) DA
-Timothy J.
Description

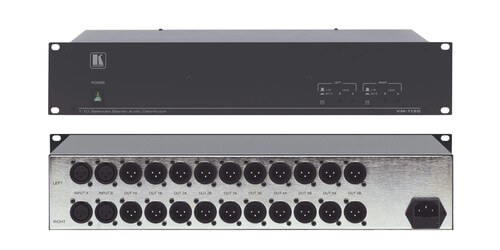

Kramer's VM-1120 is a 1x10 high-performance distribution amplifier for balanced mono audio signals on XLR connectors. This devices primary feature is that it can also be setup and configured as a 1:20 distribution amplifier for mono balanced audio signals. The VM-1120 is a ideal for audio duplication and production studios delivering undiminished quality duplicates, and in recording studios or broadcast studios for on-line signal distribution type applications.
The distribution amplifier has 2 balanced stereo or 4 balanced mono audio inputs on XLR (Female) connectors, and 10 balanced stereo or 20 balanced mono audio outputs on XLR (male) connectors. A bandwidth greater than 100kHz and a S/N ratio of 89.3dB. This unit also features grouped audio level controls, comes with a power cord (uses 230V AC power/115V AC in USA) and is backed by a 7 year warranty from Kramer.
Specifications
- Max. Output Level: 23.8Vpp
- Bandwidth: >100kHz
- S/N Ratio: 89.3dB
- CrossTalk: 78dB
- Controls: Level (x4): 0.7dB to +5.1dB, mode selector switches
- Coupling: AC (input), DC (output)
- Power Consumption: 230V AC, (115V AC USA), 15VA
- Included Accessories: Power Cord
- Size: Standard 19" Rack Mount 2U
- Warranty: 7 Years
