Kramer AV TBUS-6xl-KIT5
Table Well Box w/ HDMI, Data, DisplayPort and Retracting Lid

Description

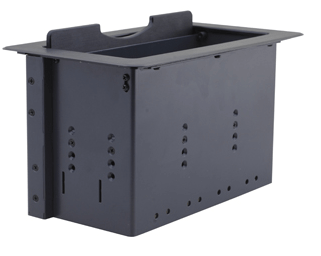

The Kramer TBUS-6xl-KIT5 is a table mount enclosure with a tilt up lid that can retract back down in the unit.   The lid also has a small pass through opening for cables, this allows cables to be plugged in with the lid closed.

The kit includes the most desired connections:  2 power with just one 6' cord, 1 HDMI, 2 data, and 1 DisplayPort.  All connections are F-F for ease of installing cables up to the backside of the connections.

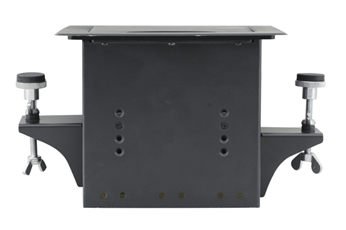

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Choose between black anodized aluminum and (silver) clear anodized aluminum.

Applications include: boardrooms, conference rooms, training facilities, lab tables, classrooms and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• The connections can be installed higher or lower in the box if you need cable storage
• Box dimensions: 9.6"W x 5.5"D x 5.1"H
• Table cutout: 8.85" x 4.85"
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-6xl-KIT5 Specifications (PDF)
• Kramer AV TBUS-6xl-KIT5 Manual (PDF)
• Kramer TBUS-6xl(B)-KIT5 Cutout Template (PDF)
• Kramer AV TBUS-6xl-KIT5 AutoCAD Drawing
