Kramer AV TBUS-1Axl-KIT8
Conference Table Multi-Connection Connectivity Box

Description

The Kramer TBUS-1Axl-KIT8 is a enclosure with a tilt up lid that includes all the most popular and most used power and data module connections for your conference room table. Not only does it include the most used connections but it also comes with a dual USB charging plate, the ports are 2A each so you can charge power hungry tablets at the same time.  The opening in the lid allows for cables to be plugged in with the lid closed!

Includes:  2 power with one 6' cable, 1 HDMI, 1 VGA, 1 audio, 1 passive A-A USB, 2 USB charging with power cable, and 1 RJ45 (Data). All connections are F-F so it is easy to plug into.

Choose between black anodized aluminum and (silver) clear anodized aluminum.

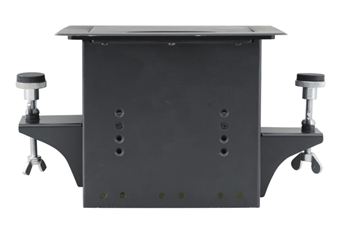

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Applications include: boardrooms, conference rooms, classrooms, training facilities, lab tables and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? Want a lid that provides wireless charging? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Box dimensions: 8.07"W x 6.69"D x 5.20"H
• Table cutout: 7.51in x 5.98in
• Works in tables up to 3" thick
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-1Axl-KIT8 Specifications (PDF)
• Kramer AV TBUS-1Axl-KIT8 Manual (PDF)
• Kramer AV TBUS-1Axl-KIT8 Additional Information (PDF)
