Key Digital KD-X222

HDBaseT HDMI CAT5e/6 Extender Tx & Rx Kit, HDR10, UHD 4K, HDCP 2.2

Discontinued Product
This product has been discontinued.
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
0 out of 5 based on 0 ratings.

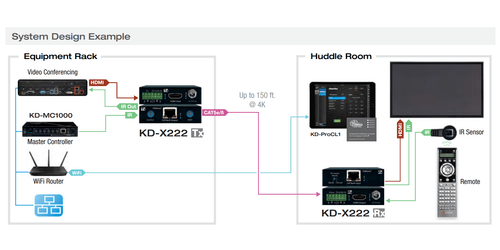

The KD-X222 HDBaseT HDMI Transmitter and Receiver Kit from Key Digital. This a high-performance range extension kit for transmitting UHD 4K/30 4:4:4 and UHD 4K/60 4:2:0 signals up to 150' using Key Digital's KD-CATSTP1X super CAT6A shielded cable, or up to 125' using a single third part CAT5e/6 cable. Equally 1080p/60, 3D signals can be extended up to 250' using Key Digital CAT6A cabling or up to 230' using a third party cable. In addition to carrying high-quality HDMI video and audio signals, the KD-X222 carries IR or RS-232 for controlling remotely located equipment or the RS-232 port can be used to control the KD-X222. Also this unit kit supports HDR10 (High Dynamic Range) so users can experience more life-like images through a greater range of luminance levels.

The KD-X222 Extender set is compatible with all HDMI and HDCP technologies up to HDCP 2.2 and HDMI technology such as 4K/UHD 4:2:0/8bit at 60f/s. Through Hot Plug Detection Control this extender enables the integrator to choose if active signal voltage is forced to connected input devices. Furthermore, the KD-X222 EDID internal library features 15 default EDID configurations and native EDID data from output/display devices connected via Rx.

Additional features of the KD-X200ProK include two channels of IR enable control to/from devices connected to the Tx and Rx units, with bi-directional control to and from the Tx and Rx unit on 3.5mm connector. There is support for standard 3D stereoscopic signal formats, and will support 12-bit Deep Color video / 8-bit color for 4K/UHD. With Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio, as supported formats of lossless compressed digital audio.

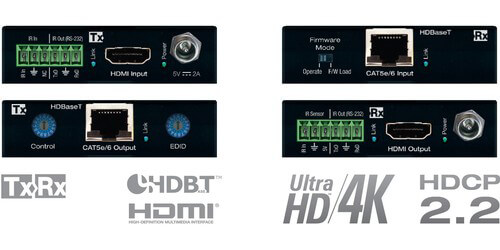

  • **This Kit comes with both a Transmitter and Receiver Unit**
  • Inputs Tx: 1 HDMI, 1 IR In
  • Outputs Tx: 1 CAT5e/6 UTP/STP, 1 IR Out /RS-232 Bi-Directional
  • Inputs Rx: 1 CAT5e/6 UTP/STP, 1 IR In
  • Outputs Rx: 1 HDMI, 1 IR Out /RS-232 Bi-Directional
  • 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit
  • Signal Extension Distances: Up to 150' @ 4K30(4:4:4) or 4K60(4:2:0) using KD-CAT6STP1X cabling & Up to 125' @ 4K30(4:4:4) 4K60(4:2:0) using third-party CAT5e/6
  • Signal Extension Distances Lower Resolutions: Up to 250' @ 1080p / 1920x1200 using KD-CAT6STP1X cabling & Up to 230' @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP cabling
  • HDCP 2.2 Compliant
  • HDR10 (High Dynamic Range)
  • 3D: Support for standard 3D stereoscopic signal formats
  • Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
  • Regulation: CE, RoHS, WEEE
  • Enclosure: Black Metal
  • Product dimension (each): 4.125" x 2.625" x 0.875"
  • Weight (each): 0.5 lbs
  • Included Power Supplies: 2 x KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head with screw-in connector
  • Additional Accessories: 2 x Mounting brackets, IR emitter, IR sensor
  • Warranty: 3 years
