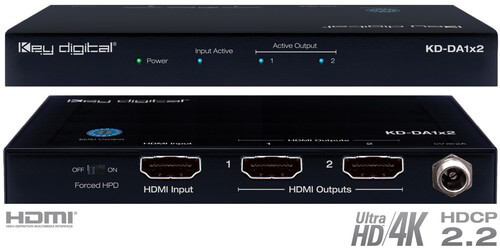

Key Digital KD-DA1x2
1X2 HDMI Distribution Amplifier, UHD/4K60 4:4:4, HDCP2.2, 10.2G
- Input: HDMI Type A, 19-pin Female
- Outputs: 2 x HDMI Type A, 19-pin Female
- Bandwidth: 10.2 Gbps
- Supported Resolutions: Ultra HD/4K 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
Description
Key Digital's KD-DA1x2 is an extremely high-performance 1x2 HDMI Distribution Amplifier that offers resolution support up to UHD 4K60 4:4:4. This device was designed to offer the best in quality, performance, and reliability, while providing a cost-effective HDMI distribution solution for smaller scale projects. The KD-DA1x2 provides one HDMI input to 2 HDMI outputs for a supreme distribution system without signal degradation. These distribution amplifiers will support all SD, HD, VESA, and Ultra HD/4K video standards including UHD/4K, 1080p/60, 1920x1200, 3D and support of HDCP 2.2 and HDR, with Deep Color Support up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit. With EDID Control there is a built-in internal library with 15 EDID handshakes in addition to native EDID data of output/display. Futhermore the Full Buffer System manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake. Supported lossless compressed digital audio formats include Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos.
The Key Digital KD-DA1x2 is a perfect choice when you want to have an easy set up distributing your HDMI UHD content, and with a 3 year warranty, you have the ultimate peace of mind knowing your purchase will be guaranteed for many years to come.
Specifications
- HDCP 2.2 Compatible
- Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
- HDR: Supports High Dynamic Range technology with EDID copy from HDR supporting display
- Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-type connector (Included)
- Advanced EDID Control
- Full Buffer System
- Supported Lossless Compressed Digital Audio Formats: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos
- I2C Communication: EDID and HDCP buffering from Display to Source
- CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
- Rack Mount: 1U, Full Rack Width (rack ears included)
- Warranty: 3 Years
