Intelix DL-AS21C
1 HDMI, 1 VGA with Scaling, 1 HDMI Out 4K Auto Switcher w/ CEC
- Inputs: 1 HDMI, 1 VGA, 1 audio
- Outputs: 1 HDMI
- HDMI resolution: Up to 4K (4096x2160/3840x2160 (4:2:0): 50/60 Hz) in and 4k out
- VGA scaling up to 1920x1200 with audio embedding on HDMI out
-Chad R.
Description

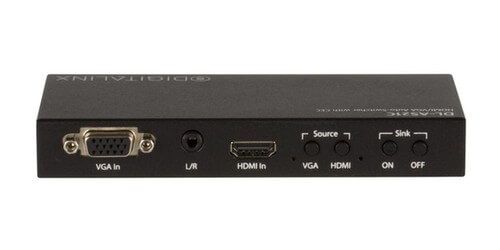

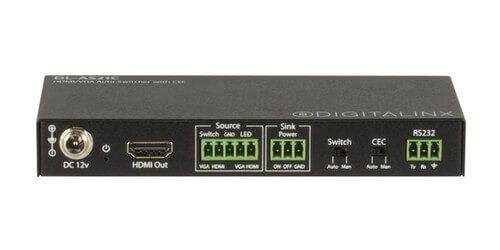

The Intelix DL-AS21C is an auto switcher that features 1 HDMI, 1 VGA, and 1 audio input. It takes your HDMI input and VGA input and sends it out via the 1 HDMI output, the audio from the VGA is embedded on the HDMI output. The HDMI input can accept 4K in and 4K out while the VGA can be scaled with an output of up to 1920x1200. The switcher can be set up in auto switch mode where it always detects the last plugged in input, it can also be manually controlled via the front buttons as well as RS-232, and contact closure.
The DL-AS21C also features integrated CEC, if used with a CEC display it can power on and off the display based on input detection of the switcher. Other features include EDID settings and EDID pass though, and the switcher is HDCP compliant.
The Intelix DL-AS21C is a useful and affordable solution to handle a single HDMI and VGA in any room, it is also easy to install under any table with the included brackets.
Specifications
- Control: Auto switching, front panel buttons, RS-232, contact closure
- EDID settings and EDID pass through
- Integrated CEC for display control
- HDCP compliant
- Embedded audio: PCM 2 channel, AAC 5.1
- HDMI distance: 16'
- Dimensions: 1.10 in x 13.78 in x 4.33 in
- Weight: 1.8lbs
- Warranty: 2 years
- Includes: Installation guide, power supply, AC adapter (US), three pole terminal blocks (2 ea), five pole terminal blocks ( 1 ea), mounting "L" brackets (2 ea), mounting screws (4 ea)
