Hall Research
4x4 HDMI 1080P Matrix Switcher with RS-232

Satisfaction Guaranteed!
Part #: HSM-04-04
Regular Price: $1,899.00
Instant Savings: -$94.95
Quantity: $1,804.05
Quantity Pricing
0 out of 5 based on 0 ratings.

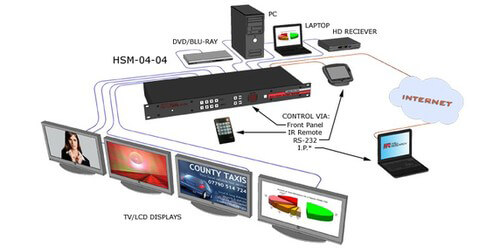

The Hall Research HSM-04-04 is a 4x4 HDMI matrix switcher, it features 4 HDMI inputs and 4 HDMI outputs.  The matrix allows you to select your input and then your output from the front panel, IR, or RS-232.  The front panel has a save and recall feature for commonly used routing patterns.  The matrix supports HDMI v1.4, 3D, HDCP, and includes EDID management.  The switcher also supports multi-channel lossless digital audio including both 5.1 and 7.1 Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.  You can send 1080P or a wide range of HD or PC resolutions for and of your routing applications.

When turned on the unit performs a simple LED test where all buttons and LED’s are gradually turned on over a few seconds. Then the matrix will recall the last routing pattern prior to being shut down and update the Routing Status LED Grid.  Hall Research provides reliable matrix routing for your HDMI distribution needs.


  • Inputs: 4 HDMI
  • Outputs: 4 HDMI
  • Control: Front panel buttons, IR (remote included), RS-232
  • Resolution: 480i, 480p, 576i, 576p,720p, 1080i, 1080p 8 or 12 bits per channel (24 or 36 bits aggregate)
  • HDMI input length: 50' or 25' at deep color
  • HDMI output length: 50' or 25' at deep color
  • HDMI v1.4
  • Supports 3D
  • HDCP compliant
  • EDID management
  • Audio: PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD
  • Warranty: 3 years
  • Dimensions: 1.69" H x 17.3" W x 7.68" D
  • 1RU rack mountable
  • Weight: 10lbs
  • Includes: IR remote control, power supply
