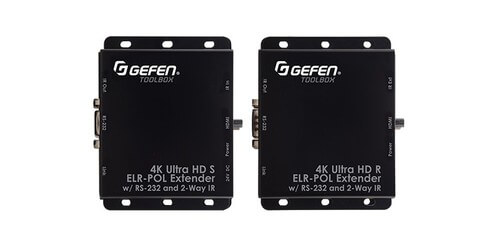

HDBaseT Kit, 4K, IR, RS-232, Power, HDCP 2.2 - 495'

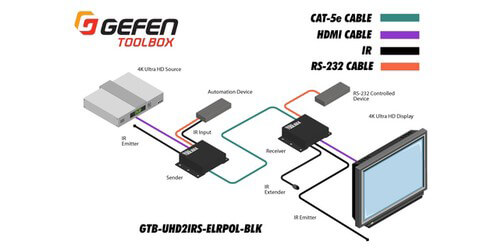

The Gefen GTB-UHD2IRS-ELRPOL-BLK is a sender and receiver HDBaseT extender kit that sends your 1080P, 2K, or 4K signal with embedded audio over a Cat5 cable. Besides sending video it can also send RS-232 control, IR, and power to the receiver over the same single Cat5 cable up to 495'. 1 power supply is included for receiver to power the other unit sending power over the Cat5 cable, this makes installation easy not having to find an outlet.
The Gefen GTB-UHD2IRS-ELRPOL-BLK supports HDCP 2.2 and 1.4, HDMI 2.0, multi-channel HD audio, and 3D, CEC, and lip sync pass through. This model supports all protocols of HDBaseT with all the features possible, send everything you need now and in the future with the Gefen GTB-UHD2IRS-ELRPOL-BLK.
- Technology: HDBaseT
- Sends: Video, HD audio, RS-232, IR, power
- Resolution: Up to 4K at 60Hz 4:2:0, 4:4:4 @ 30Hz
- Audio: LPCM 7.1 audio, Dolby TrueHD, and DTS-HD Master Audio pass-through
- 12-bit Deep Color
- Distance: Up to 495' using shielded Cat5e/6
- Supports: HDCP 2.2 and 1.4, HDMI, 2.0, multi-channel HD audio, and 3D, CEC, and EDID and lip sync pass through
- Dimensions (sender/receiver): 4.3" x 1" x 3.2"
- Includes: (1) Sender Unit, (1) Receiver Unit, (1) 6 ft. Locking HDMI Cable, (1) IR Emitter (EXT-IREMIT), (1) IR Extender, (1) 24V DC Power Supply
- Warranty: 2 years
