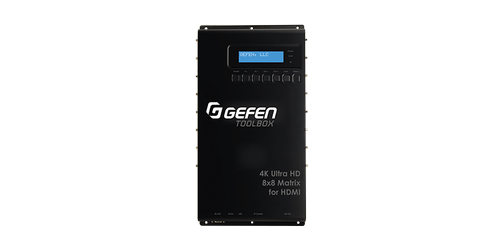

8x8 HDMI 4K Matrix Switcher w/ HDMI 2.0 & IP Control
The Gefen GTB-HD4K2K-848-BLK is a small 8x8 HDMI matrix switcher packed with features, it has 8 HDMI inputs and 8 HDMI outputs that are capable of resolutions up to 4K. The matrix switches fast and with no artifacts so there is no lag time switching your inputs and outputs. The matrix features 12-bit Deep Color, 3D, multi-channel audio, EDID, and support for HDMI 2.0 and HDCP 1.4. The unit can be controlled via the front panel push buttons, the included IR remote control, RS-232, or over IP using Telnet, UDP, or the integrated web server. The matrix is IP controllable, use Gefen's Syner-G software for quick and easy IP configuring and set up.
You can visually see your routing status with LED screen on the unit, as well as audio and EDID indicators. The unit is small in comparison to the competitors 8x8 matrix and can even be surface mounted. The Gefen GTB-HD4K2K-848-BLK is extremely affordable and a reliable way to distribute your large HDMI applications with fast switching.
- 8x8 HDMI 4K matrix switcher

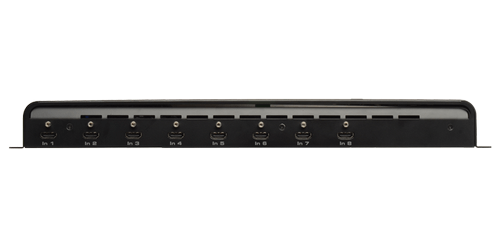

- Inputs: 8 HDMI

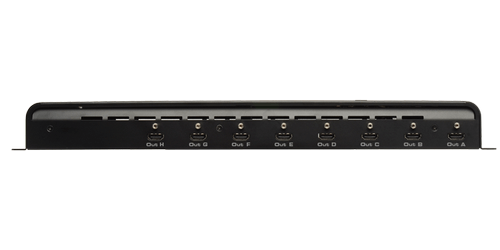

- Outputs: 8 HDMI
- Resolution: Up to Ultra HD 4K at 24Hz or 30Hz 4:4:4, 4K Ultra HD at 60 Hz 4:2:0 or 30Hz 4:4:4, 1080p Full HD, and 1920x1200 (WUXGA)

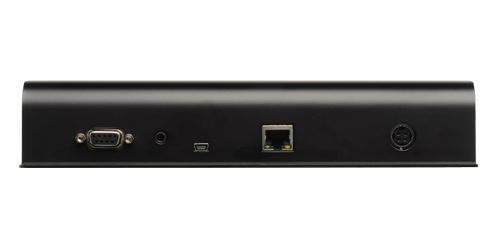

- Control: Front panel push buttons, the included IR remote control, RS-232, or over IP using TCP/IP or the integrated web server
- Audio: LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- HDMI 2.0 compliant
- HDCP 1.4 compliant
- DVI compliant
- Deep Color up to 12-bit at 1080P
- 3D and lip sync pass through
- EDID management
- LED indicator lights
- Fast switching technology
- Surface mountable
- Dimensions: 9.3" x 17.9" x 1.75"
- Weight: 3.9lbs
- Includes: Power supply, IR remote
- Warranty: 2 years
