Furman MIW-XT
15A In-Wall Power & Amp, Signal Bay, 15A Compliant Extension System
- AC Circuit:
- AC Outlets: 1
- Line Voltage: 120V, 60Hz
- Total Current Capacity: 15A
-Chad R.
Description

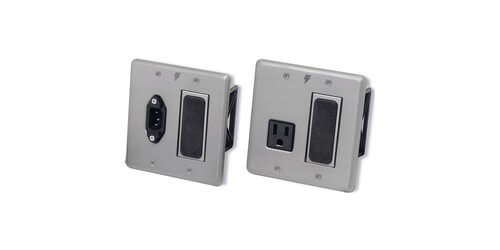

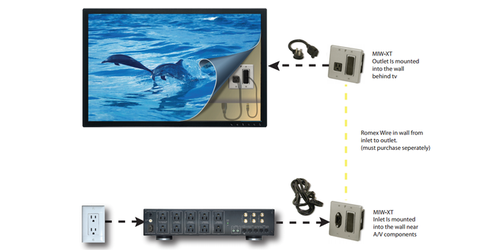

The MIW-XT 15A In-Wall Power & Amp - Signal Bay, 15A Compliant Extension System from Furman. These nickel plated steel faceplates extend noise free, safe power from Furman Power Management components to remote panel displays, ceiling mounted video projectors and powered sub-woofers.
With their ultra-thin profile, the brushed metal finish plates hide discreetly behind electronic equipment. The MIW-XT panels allow for neat, professional installation by leaving less than an inch clearance between the panels and the equipment. While the power and signal lines are tucked away in the wall behind the panel displays for a clean look that is code compliant.

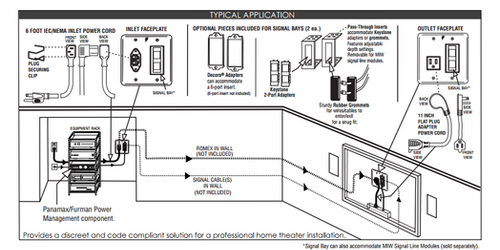

The signal bay on both Inlet and Outlet provides a wide variety of optional installation solutions by using Decora Adapters, Pass-Through Inserts, Keystone 2-Port Adapter, and MIW Signal Line Modules -- Sold Separately. Extend Connected Equipment Policy to remote equipment when used with Furman Power Management components.
*From the Manufacturer: Installation requires use of an outlet box or boxes that are NOT provided with the product. Product has been tested thoroughly to be compatible with the following outlet boxes: Plastic Boxes - Carlon SC200DV, Carlon B114R; Metal Boxes - Raco 8355, Raco 508 (hardware removed).*
Specifications
- IEC Power Inlet Cord:
- Length: 6'
- Connectors: IEC 320-C13 and NEMA 5-15
- Flat Plug AC Power Cord:
- Length: 11"
- Connectors: NEMA 5-15P and NEMA 5-15R
- Power Inlet Faceplate:
- AC Connector: IEC 320 C14
- Signal Line Protection not included
- Power Outlet Faceplate:
- AC Connector: NEMA 5-15
- Noise Filtration: Level 1
- Signal Line Protection not included
- Additional Specs:
- EMI/RFI noise filtration built into outlet receptacle
- Accommodates optional MIW Signal Line Modules (not included)
- CSA Certified for code compliant installations

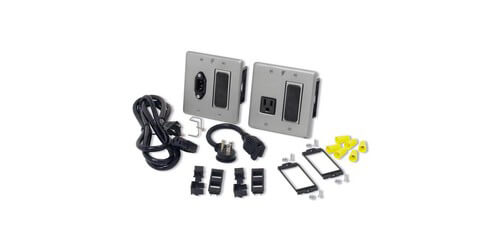

- Included: Inlet Faceplate, Outlet Faceplate, 6' IEC/NEMA Cord, Flat Plug Adapter Cord, Keystone 2-Port Adapters, Plug Clip, 6 Wire Nuts, and Decora Adapters
- Faceplates (WxHxD): 4.75" x 4.75" x 0.25" (Basic Dimensions Only. These do not include cords, plugs, module cable connectors, cables, wires, etc.)
- Assembly Behind Faceplate: 3" Depth
- Warranty: 3 years
