FSR SADA-6
1:6 Stereo or 1:12 Mono Audio Distribution Amplifier

Part #: SADA-6
Satisfaction Guaranteed!
MSRP: $299.00
Our Price: $278.37
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top SADA-6 Specifications
  • Input: 1 Stereo Balanced or Unbalanced on 1 Pluggable Screw Terminal 5 Conductor
  • Output: 6 Electronic Balanced on 4 Pluggable Screw Terminal 5 Conductor
  • Level Input (Max): +18dBm unity 12dBm boost (balanced or unbalanced)
  • Level Output (max): +24dBm in high impedance connection / +22dBm @600 ohms
"Very convenient and great customer support."
-Lynn Y.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

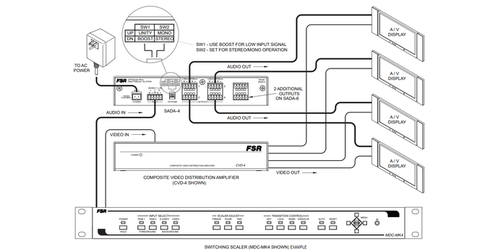

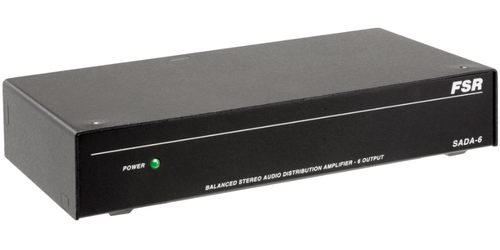

The FSR SADA-6 is a stereo audio distribution amplifier that is configurable for multiple output arrangements. This product can be either a 1x6 stereo audio DA, 2 - 1x6 mono audio DA, a 1x12 mono or 1 stereo into 12 mono audio. Both the inputs and outputs are balanced, and this unit can be operated in unbalanced mode as well. The outputs are short circuit protected, individually buffered and amplified.

The SADA-6 is a half-rack unit and two units can be rack-mounted side to side with an optional mounting bracket. Including a UL rated power supply, the FSR SADA-6 is a great add-on into your existing video distribution needs!

Specifications

  • Impedance: 50 ohm on balanced output
  • Power Consumption: 12VDC @ 400 mA
  • Included Accessories: DC Power Supply
  • Dimensions (LxWxH): 8.47" x 4.88" x 1.586"
  • Weight: Approx. 2 lbs
  • Warranty: 1 Year
