FSR IT-R4S
4 Relay Module with Serial Control
- Four high quality 5 amp relays
- Screw terminals for fast hookup
- RS-232 I/O Port Status LED Indicators
Description

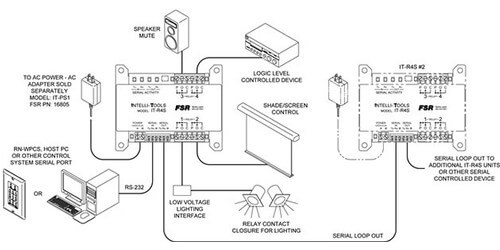

The FSR IT-R4S is a multi-purpose relay module allowing four internal single pole double throw relays to be controlled by an RS-232 port using a simple ASCII control protocol. Additional IT-R4S modules can be daisy chained to provide control of additional modules or other RS-232 devices. The IT-R4S passes RS-232 control data out to other RS-232 controlled devices via the unit’s serial output port. The IT-R4S is capable of supporting a wide variety of relay controlled devices making it an essential tool for AV and control system installations.
Use to control shades, screens, or anywhere relay switching is needed via RS-232 control.
The FSR IT-PS1 power supply is sold separately, one power supply can power up to 6 IT-R4S modules saving wiring headaches and money.
