FSR HV-600
HuddleVU 6 Stations, Distributed Tabletop Collaboration over HDMI
- Includes 6 table boxes, cables, switchers, and controller
- No software or programming required
- Automatically turns on the flat panel or projector when an HDMI cable is plugged in
- Perfect for conference rooms, classrooms, libraries, and training rooms
-Jeff A.
Description

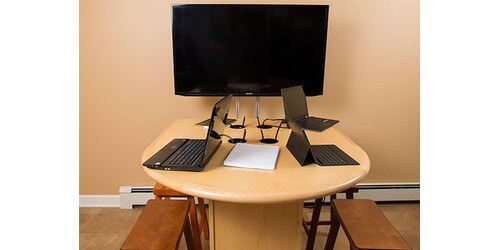

The FSR HV-600 is a 6 station group collaboration system, at the heart of the system are 6 table boxes. These table boxes consist of 1 power, 1 6' pull out HDMI cable, and 1 show me button. Each user around the table gets their own table box and their own show me button, when it is each persons turn all they have to do is press their show me button and they are presenting.

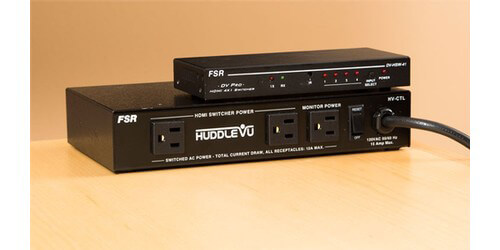

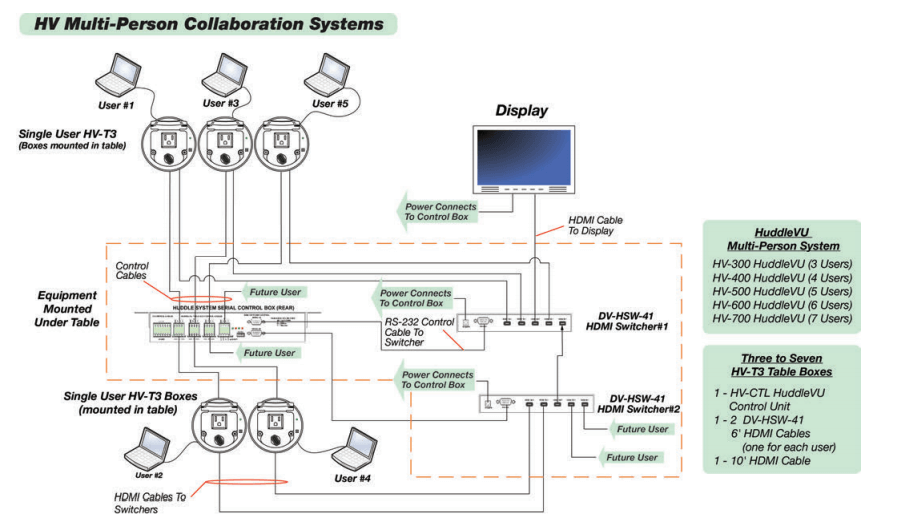

The system also includes a controller and an HDMI switcher, this makes installation easy and allows just 1 HDMI cable to be ran to your flat panel. To install cut the hole in your table, drop the box in, and secure with the included brackets. Run the 6' included RS-232 cables from the table box to the controller, run 1 included 6' RS-232 cable from the control box to the switcher, run the HDMI cables from the table boxes to the switcher, and run 1 included 10' HDMI cable from the switcher to your flat panel. The control box is the central power point for all your system components, the power from the display and the switcher plugs into the control box. If your panel is going to installed on your wall and not be at the table and you want the system to still automatically turn the TV on when an HDMI cable is plugged in, then you will need to add the optional IT-SACWP wall plate.
Specifications
- 9' power cable
