Eiki EK-511W
7500 Lumen, WXGA 3LCD Conference Room Projector, with Lens

Part #: EK-511W
Satisfaction Guaranteed!
This product has been discontinued.
Top EK-511W Specifications
  • Display Technology: 3LCD
  • Brightness: 7,500 Lumens Contrast Ratio: 2500:1
  • Native Resolution & Aspect Ratio: WXGA 1280 x 800, 16:10
  • Compatible with inputs up to UXGA and WUXGA
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008


Now featuring the EK-511W Conference Room Series 3LCD Projector, with Standard Lens. This high-end conference room projector features 7500 lumens of brightness, offers resolutions up to WXGA, and 2500:1 contrast ratio. It has the ability to support both analog and digital video inputs in all color standards up to 1080p. Boasting a high-contrast inorganic 3-panel LCD imaging engine and 10-bit color processing for superior color reproduction, users will enjoy amazing quality crystal clear imagines for their conference room needs. Eiki designed this projector with a simple computer system setting that includes a multi-scan system to conform to almost all computer output signals quickly and efficiently up to WXGA. A perfect projector for presentations with built-in functions that include digital zoom and focus, giving presenters the ability to focus on the crucial information during their presentations. As well there is a 10W audio output that allows you to make a presentation with any external audio equipment needed.

The Eiki EK-511W offers advanced projection technology that has been built for both durability and ease of use, as well as HDBaseT connectivity. The projector utilizes built-in multimedia features, a palette of 1.07 billion displayable colors, and matrix liquid crystal display technology. A wired LAN connection has been provided for control and monitoring. The standard lens that comes with this unit can create a brilliant image from 40 - 300" (diagonal) in size. With a throw distance of 3.9' - 55.9' this projector can be placed in a wide range of locations either close to the screen or at the back of the conference room. Furthermore there is Vertical and Horizontal keystone corrections with as well as normal, reversed, or inverted image orientations. The EK-511W offers amazing brightness, quality multimedia functions, and up to 4,000 hours of lamp life at a very economical price. Make impacting presentations, and wow your clients with the EK-511W from Eiki, a leader in projector technologies.


  • Imaging System: 0.76 in (19 mm) Inorganic LCD Panels x 3
  • Number of Colors: 1.07 billion
  • Lens Type: Power Zoom and Focus / Model: AH-E21010
  • Image Diagonal: 40 - 300"
  • Throw Distance: 3.9' - 55.9'
  • Image Orientation: Normal, Reversed, Inverted
  • Keystone Correction: Digital:V:+/- 30 degrees & H: +/- 15 degrees

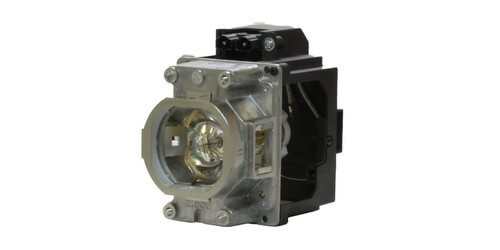

  • Lamp: 430W NSHA

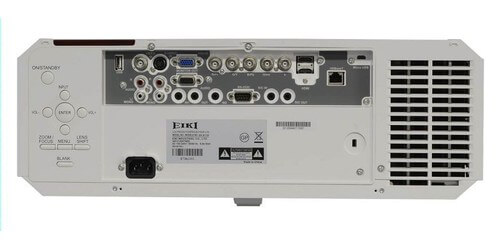

  • Inputs: VGA, RJ-45 (HDBaseT), 2x HDMI, 5x BNC (component), BNC (composite), S-Video, Micro-USB, USB Type A, 2x Mini stereo, 4x RCA
  • Outputs: VGA, Mini Stereo

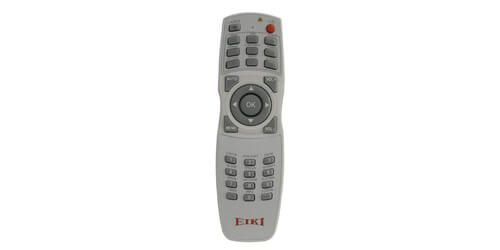

  • Control: Local, Remote Control, Wired Remote Control, RS-232
  • Sound System: Amplifier: Mono 10 Watt, Speaker: 1.46 in (3.7 cm) x 1 (Mono)
  • Lamp Life: 4,000 / 3,000 hours
  • Maximum Pitch: Up to 360 degrees
  • Weight: 22.7lbs
  • Cabinet Size (HxWxD): 7.0 x 18.6 x 16.2"
  • Included Accessories: Quick Start Guide, VGA Computer Input Cable (Dsub15 to Dsub15), 10' Detachable Power Cord, Wireless/Wired Remote Control (with 2 AA Batteries)
  • Warranty: Projector - 3 year or 6,000 hours (whichever comes first) / Lamp 500 Hours or 6 months
