Comprehensive CHE-HDBT322
Pro AV/IT HDBaseT Tx & Rx Kit, CAT5e/6/7, Dual HDMI Out, 330'

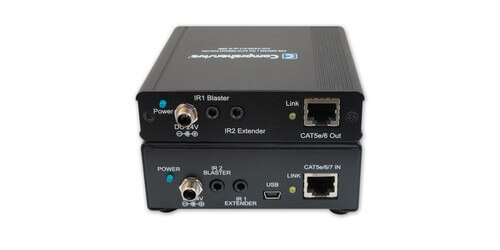

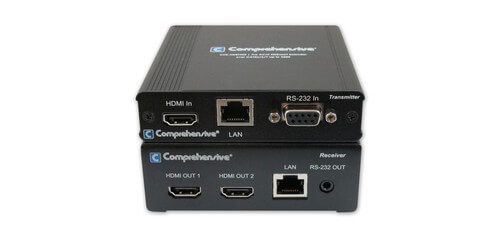

- Transmitter Inputs: 1x HDMI, 1x Shielded RJ45 (LAN), 1x 3.5mm Stereo mini-jack (IR), 1x 9pin Dsub (RS-232)
- Tx Outputs: 1x Shielded RJ45 (HDBaseT), 1x 3.5mm Stereo mini-jack (IR)
- Receiver Inputs: 1x Shielded RJ45 (HDBaseT), 1x RJ45 (LAN), 1x 3.5mm Stereo mini-jack (IR), 1x USB Mini B (Service)
- Rx Outputs: 2x HDMI, 1x 3.5mm Stereo mini-jack (IR)
-Patrick S.
Description
The CHE-HDBT322 Pro AV/IT HDBaseT, Dual HDMI Out, Transmitter and Receiver Kit from Comprehensive relays audio and 4K30 video signals over a single Cat5e, 6, or 7, up to 330 feet away. This device is manufactured with full 5Play convergence, which allows transmission of audio, video, control (IR/RS-232), Ethernet (LAN serving), and PoE (Power over Ethernet). With LAN serving connection and external digital and analog audio capability that gives users the convenience of additional audio connection.
The local transmitter in this kit can power the included remote receiver by way of PoE with 24V, which provides the user with more flexibility for installs. This CHE-HDBT322 Extender Kit from Comprehensive is an ideal solution for settings such as home theaters, showroom and retail displays, conference presentations, and lecture halls. These durable metal enclosed units are easy to install and come backed from Comprehensive by a two year warranty.
Specifications
- Video Bandwidth: 340Mbps/10.2Gbps
- HDMI: 3D, 4K@30Hz support, HDCP, and DVI compliant
- HDMI outputs: Dual simultaneous
- Transmission: Simultaneous uncompressed data over a single CAT5e/6/7 cable
- Distance: up to 330'
- HDBaseT 5Play convergence: uncompressed high-def Video/Audio, LAN serving, PoE and RS-232/IR
- High-def audio support: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- PSU: 24V/1.25A
- Tx Dimensions(WxDxH): 3.9" x 4.4" x 1.5"
- Rx Dimensions(WxDxH): 4" x 4.2" x 0.9"
- Included Items: HDBaseT Extender with Dual HDMI Outputs Tx & Rx, 1x IR Receiver, 3.5mm Phone Jack to RS-232 Cable, Operation Manual
- Weight: 1.17 lbs
- Warranty: 2 Years
