 Home > Distribution Amplifiers -> HDMI -> 1X2 -> Comprehensive -> CDA-HD220EK 1x2 HDMI Distribution Amplifier, HDCP 2.2, 4K60, 10.2Gbps

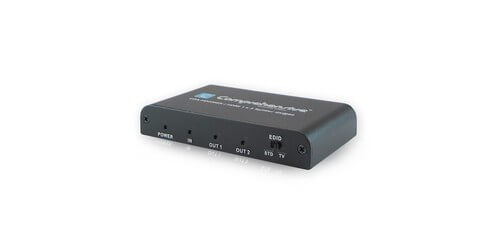

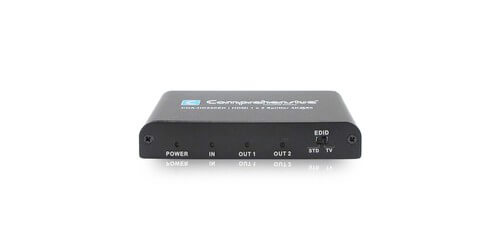

Comprehensive CDA-HD220EK
1x2 HDMI Distribution Amplifier, HDCP 2.2, 4K60, 10.2Gbps

Part #: CDA-HD220EK
Satisfaction Guaranteed!
MSRP: $199.99
Our Price: $159.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top CDA-HD220EK Specifications
  • Inputs: 1x HDMI
  • Outputs: 2x HDMI
  • Video Resolutions: 480i to 4K60 (YUV420)
  • Video Bandwidth: 300MHz/10.2Gbps
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

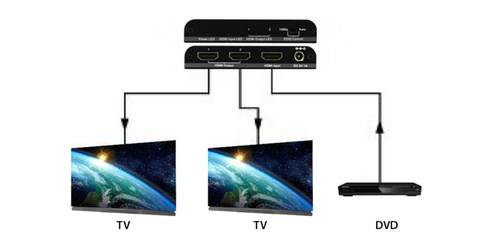

The Comprehensive CDA-HD220EK 1x2 HDMI Distribution Amplifier comes with high quality 4K60 resolutions, HDCP 2.2 compliance, and bandwidth speeds up to 10.2Gbps. It allows the user to connect and distribute one HDMI input simultaneously to two separate HDMI outputs. This splitter has Smart EDID control which provides the option to choose between STD (fixed) or TV (downstream) settings. The slim and compact design makes this metal enclosed unit an ideal solution in a variety of different settings. It is perfect for applications in lecture halls, conference rooms, as well as showroom and retail displays. This CDA-HD220EK distribution amplifier from Comprehensive is backed by a two year warranty.

Specifications

  • Power Supply: 5V/1A DC
  • Power Consumption: 1.5W(Max)
  • ESD Protection: ~8kV (air-gap discharge) ~4kV (contact discharge)
  • Chassis Material: Metal
  • Silkscreen Color: Black
  • Weight: 0.23 lb.
  • Dimensions(WxDxH): 3.77" x 2.20" x 0.66"
  • Included Accessories: Power Adapter, Operation Manual
  • Warranty: 2 Years
