BTX CD-MX915HH
MaxBlox D-SUB Termination Half-Hood for CD-MX Series Connectors
- Exclusively for MaxBlox D-Sub Connectors
- Hood can be applied pre or post termination
- All Hardware Included
- PC Board Snaps in to hood for security and alignment
-Gregory W.
Description

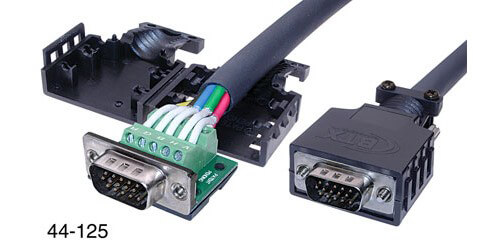

The CD-MX915HH is a MaxBlox Series Half-Hood that was designed to be exclusively used with the HD15 and DB9 d-sub connectors. This Half-Hood is perfect for high density applications where side by side mounting of the solder-less MaxBlox connectors is required. When this hood is used in conjunction MaxBlox connectors, the connectors simply slide, snap and lock into the hood without the use of tools. Optimized for use in any A/V application where VGA or RS-232 controls are used, the HD15 and DB9 connectors are manufactured by BTX with genuine Phoenix Contact terminal blocks, the industry standard for reliability. The half-hood is ideal for use in closing DB9 and HD15 (VGA) connectors after termination, as well as systems control field installation and maintenance This product being able to be applied pre or post termination is used for cable or panel mounting type applications.
Specifications
- Upper hood half removed for view and access to wires
- Warranty: 5 Years
