Home > Distribution Amplifiers -> HDMI -> 1X2 -> AVPro Edge -> AC-DA12-AUHD-GEN2 Full 4K60 4:4:4 (Up to 18 GBPS) Distribution Amplifier

Full 4K60 4:4:4 (Up to 18 GBPS) Distribution Amplifier

Part #: AC-DA12-AUHD-GEN2
Satisfaction Guaranteed!
Our Price: $201.31
0 out of 5 based on 0 ratings.
Free Shipping* | Low Price Guaranteed | Authorized Dealer


The AC-DA12-AUHD-GEN2 from AVPro Edge, a new world in Distribution Amplifiers, and belonging to the first true 18Gbps DA family. For the High End Integrators out there this an amazing time for high-bandwidth signals, and for HDMI 2.0a, and HDR support. Featuring true 4K60 at 4:4:4 support and in the future the potential for up to 8K, you will finally be able to bring this technology to your installs, and actually distribute it, with proper HDMI handshaking.

The AC-DA12-AUHD-GEN2 offers the highest available bandwidth, ensuring, even at higher resolutions, maximum stability and performance in distributed HDMI systems. A part of the advanced EDID management on board is the ability to choose from 16 different settings, including Cascade Mode. Cascade Mode gives you the option to string together multiple display devices through their inputs and outputs now turning this 1X2 in a potential 1X50 AUHD distribution amplifier. Being designed for cascading this DA relieves all concerns of making several "hops" in your system, enabling "cascade mode" gives true plug-and-play compatibility.

Whether there is a need for 18Gbps and HDR support ensuring military grade stability, wanting to split signals in your Bar & Restaurant to watch the "Big Game", or have a low cost method for Airports, Rails, and Subway signage, the AC-DA12-AUHD Distribution Amplifier will give you the confidence knowing you have a high-quality stable distribution that can be cascaded for extended distances and with additional outputs, meeting all your company or customers needs.

Other great features in this cutting edge Distribution Amplifier is the ability to amplify a signal from any source up to a 18Gbps, Ultra low-profile design, locking power connector, various supported audio formats, and RS-232, IR, Ethernet controlled. This DA also carries the ability to maintain the integrity of HDR by being 100% compatible.

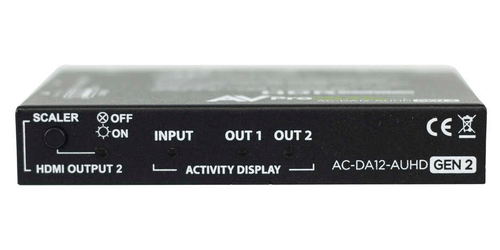

The GEN2 model now features a scaler to one HDMI output, and a toslink audio breakout.


  • 4K60 4:4:4 Support (with future potential up to 8K Support)
  • 1 HDMI Input
  • 2 HDMI Outputs
  • 18Gbps Bandwidth
  • HDMI 2.0a - HDR - HDCP 2.2
  • Full HDR Support & Compatibility
  • Advanced EDID Management
  • Ultra Low-Profile Design
  • Control: RS-232, IR, Ethernet
  • Supported Audio: PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Cascade Functionality: Ability to continually link along connections from inputs to outputs of the displays for long runs turning this into a 1x50 AUHD DA potentially
  • Locking Power Connector
  • 10 Year Warranty
