Avenview HBT-C6IR-SET

HDBaseT Point to Point Extender Set with IR and Ethernet

Satisfaction Guaranteed!
Part #: HBT-C6IR-SET
Your Price: $249.00
0 out of 5 based on 0 ratings.

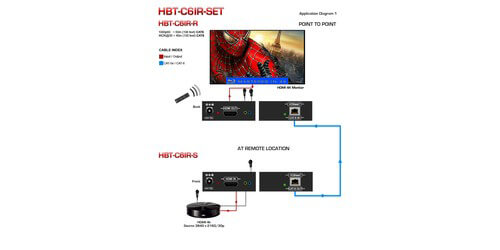

The HBT-C6IR-SET from Avenview is a high-performance HDBaseT point-to-point extender set with Ethernet and Bi-directional IR. This unit was designed to extend your UHD 4K Full HDMI and Bi-directional IR signals up to 130', and 198' for 1080p via the very cost effective CAT5e/6 cable. This system comes with both a Receiver and Transmitter and through HDBaseT technology this system will allow HDMI video and audio, as well as IR control signals to be sent down a single cable. Video and audio signals will maintain their same pristine signals and not be affected, as well as HDCP protection being maintained. Supported Lossless multi-channel audio formats include DTS-HD Master Audio, Dolby TrueHD. Making this a perfect solution when there is need for transmitting quality HDMI 4K signals over longer cables runs to your high-end flat panel display or 4K monitors.

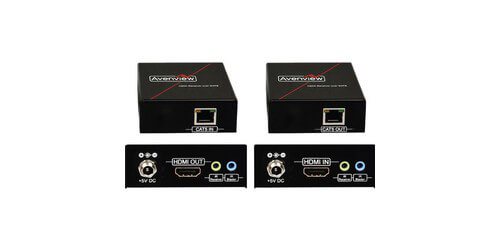

The HBT-C6IR-SET Kit comes with a sender (transmitter) that is designed to capture the input HDMI/DVi video/audio/data signals with IR control packets, a receiver which equalizes the transmitted HDMI signal and reconstructs the IR signals to the appropriate device for control, plus 2 power adapters, an IR Blaster, IR receiver, users guide, and is backed by  a 3 year warranty from Avenview.


  • The HBT-C6IR-SET comes as a kit with both a receiver and transmitter
  • Support Resolutions: Up to UHD 4K30
  • HDMI Transmission Range: Full HD 1080p: 198' on Cat5e/6 & UHD 4K 3840 x 2160@30: 130' on Cat5e/6
  • Transmitter Inputs: HDMI, 3.5mm, mini-USB
  • Transmitter Outputs: RJ-45 HDBaseT, 3.5mm Receiver Inputs: RJ-45 HDBaseT, 3.5mm, mini-USB
  • Receiver Outputs: HDMI, 3.5mm
  • Video Bandwidth: 10.2Gbps
  • HDCP Compliant
  • CEC support to control supported devices for common user controls via HDMI
  • Audio Support: Lossless multichannel audio formats (DTS-HD Master Audio, Dolby TrueHD)
  • HDMI Compliance: HDMI with HDBaseT Technology Lite Version
  • Support bidirectional IR signals 20 kHz to 60 kHz
  • Auto-equalization built in to ensure quality video and audio is transmitted
  • Mounting: Wall or 1 RU rackmount
  • Package Contents: 1 x HDM-C6IR-S, 1 x HDM-C6IR-R, 2 x Power Adapter, 1 x IR Blaster, 1 x IR Receiver, 1 x User Guide
  • Warranty: 3 Years
