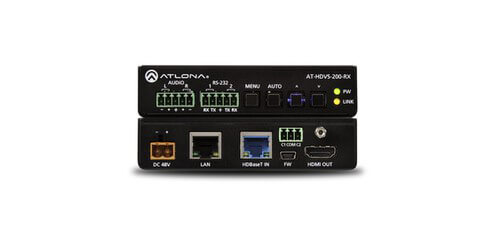

Atlona AT-HDVS-200-RX
HDBaseT 1080P Scaler and Receiver w/ Ethernet and Audio Out
- Inputs: HDBaseT
- Outputs: HDMI, analog audio
- Max resolution: 1080p at 23.98/24/25/29.97/30/50/59.94/60Hz
- HDBaseT distance: 328'
-Lynn Y.
Description
The Atlona AT-HDVS-200-RX is a HDBaseT receiver and scaler, it can receive video with embedded audio from up to 328' away. It can also control a display via CEC, IP, and RS-232. When used with the AT-HDVS-200-TX, a connected display can be powered on and off with scaling up to 1080P. There is also a balanced analog audio integrated de-embedder so you can connect to a rooms audio system. A dry contact closure can trigger up or down screen movements for easy set up.
An easy to use Web GUI offers manual mode programming, CEC display control set-up, and status reporting of EDID and HDCP, as well as quick settings adjustments. When used with the AT-HDVS-200-TX the receiver will send power to the transmitter.

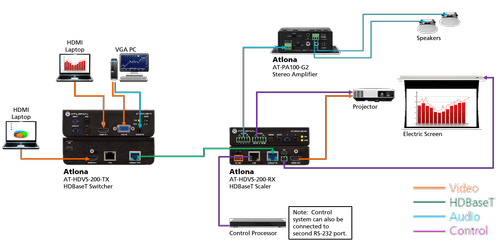

The Atlona AT-HDVS-200-RX is a perfect match with the Atlona AT-HDVS-200-TX to create a winning easy to use distribution system for a variety of settings.
Specifications
- HDMI in and out distance: 30'
- HDCP 1.4
- Control: Front panel buttons, RS-232, IP, and CEC
- Integrated audio de-embedder
- Dimensions: 1.5" x 5" x 4.02"
- Warranty: 10 years
