8-Port USB/PS2 Combo, VGA KVM with USB Peripheral Support

Satisfaction Guaranteed!
Part #: CS1708A
Your Price: $515.00
0 out of 5 based on 0 ratings.

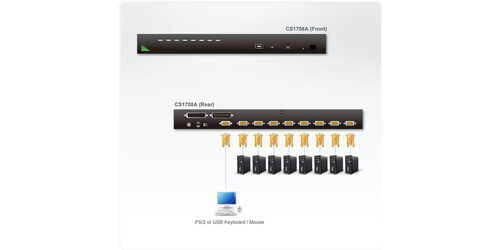

The ATEN CS1708A is a PS/2-USB KVM VGA Switch with Daisy-Chain Port and USB peripheral support. This unit has been designed to allow access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). The CS1708A has the ability to control up to 8 computers directly, however as many as 31 additional switches can be daisy-chained together so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally there is a front panel USB port that is available for each computer to access any peripherals connected to it on a one-at-a-time basis.

The CS1708A offers multi-platform support for Windows, Linux, Mac, and Sun platforms, as well as support for USB keyboard for PC, Mac, and Sun. This switch has the ability to auto-sense the stations position on daisy-chained installations, thus eliminating the need for manual dip switch settings; the front panel led indicates the stations position. For secure system access this switch comes with a two level password, that only allows authorized users to view and control the computers, with up to 4 users and one admin profile for each. Finally the CS1708A comes equipped with ATEN's Video DynaSync Technology that stores the consoles monitor's EDID for optimal display resolutions hand shaking.

  • Computer Connections: 8 Direct, 256 via daisy-chain
  • Port Selection: OSD, HotKey, Pushbutton
  • Console Port Connectors: SPHD-18
  • KVM Port Connectors: 8x SPHD-15/17
  • Daisy Chain Ports: DB-25 Male, DB-25 Female
  • USB Port: USB Type A
  • Emulation: Keyboard / Mouse: PS/2, USB
  • Video Resolution: 2048 x 1536, DDC2B
  • Scan Interval 1 - 255 Seconds (Default: 5 secs)
  • LED Indicators: Online, Selected, Station ID, Power
  • Switches: Port Selection, Firmware Upgrade Recovery
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Front accessible USB port allows each computer to access USB peripherals
  • Video DynaSync: stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB / PS/2 keyboard and mouse emulation
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast Mode - operation simultaneously performed on all selected computer
  • Power Consumption: DC 5.3V, 5 W
  • Dimensions (LxWxH): 17.21 x 6.3 x 1.73"
  • Weight: 5.86lbs
  • Included Accessories: 2x Custom KVM Cable Sets (2L5201P / 2L5201U), Console Cable, Firmware Upgrade Cable, Foot Pad Set(4 PCS), Power Adapter 6', User Manual, Quick Start Guide
  • Warranty: 3 Years
