Home > KVM -> KVM Switches -> PS/2 - USB -> 1X16 -> ATEN -> CS1316KIT 16-Port USB/PS2 combo KVM Switch w/ 16 USB cables


16-Port USB/PS2 combo KVM Switch w/ 16 USB cables

Satisfaction Guaranteed!
Part #: CS1316KIT
Your Price: $700.00
0 out of 5 based on 0 ratings.

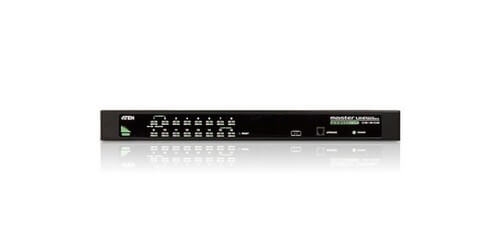

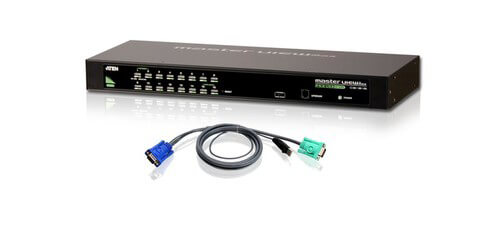

The CS1316KIT from ATEN is a 16-Port KVM VGA Switch with 16 USB KVM Cables, that allows users to access and control up to 16 computers from a single USB-PS/2 console (keyboard, monitor, and mouse). This device also offers IT professionals to daisy-chain up to 16 additional switches that would expand the control to 256 computers from a single console. This switch provides dual interface support for both USB and PS/2 connections for the console and computers. Another great feature built-in to the CS1316KIT is through ATEN's exclusive Video DynaSync technology that eliminates boot-up display problems and optimizes resolution when switching between ports. USB keyboards for PC, Mac, and Sun are all supported.

Additionally the CS1316KIT provides auto PS/2 and USB interface detection, superior video quality resolutions up to 2048x1536 (DDC2B), an auto scan feature for monitoring user-selected computers, as well as multi-platform support for Windows 2000/XP/Vista, Linux, Mac, and Sun. Computer selection is achieved simply via the front panel pushbuttons, hotkeys, or through the multilingual on-screen display (OSD) menu. Security of the device has been provided through the use of a two level password security, where only authorized users view and control computers; up to four users and an administrator with a separate profile for each. The switch is hot-pluggable so computers can be removed or added without power down the switch to save in installation time or adding removing computers quickly.

  • Computer Connections: Direct 16, max 256 (via cascading)
  • Console Port Connectors: 1 x SPHD-18 Male

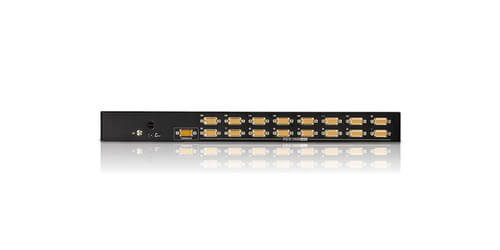

  • KVM Ports: 16 x SPHD-15 Female
  • Port Selection: OSD, Hotkey, Pushbutton
  • Switching Ports: 16 x Pushbutton
  • LED Indicators: 16 Orange for Online Status / 16 Green for Selected / 1 Dark Green for Power
  • Emulation: PS/2 & USB
  • Video Resolutions: 2048 x 1536, DDC2B
  • Scan Interval: 1-255 Seconds (Default: 5 secs)
  • Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable: add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Power Consumption: DC 5.3 V, 5 W
  • Housing: Metal
  • Dimensions (LxWxH): 17.21 x 6.35 x 1.73"
  • Weight: 4.63lbs
  • Included Accessories: 1x Console cable, 1x Firmware Upgrade cable, 1x Foot Pad set (4 pads), 1x Power Adapter (6' AC Models), 1x User Manual, 1x Quick Start Guide, 1x Grounding wire
  • Included Cables: 4x 2L5201U, 8x 2L5202U, 4x 2L5203U
  • Warranty: 3 Years
