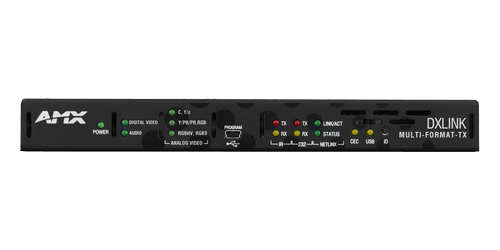

HDMI and VGA Auto Switcher with DXLink Out
The AMX DX-TX is a VGA and HDMI transmitter that will send your video, IR, USB, Ethernet, and RS-232 up to 328' over Cat5e/6 cable. The transmitter also acts an auto switcher, it detects the last plugged in input and automatically sends that to a compatible receiver or DXLink input. Not only does it send scaled video if using the VGA input but it also sends embedded audio. The unit includes a power supply if needed however it can also receive power over the twisted pair cable from a compatible DXLink device.
- Inputs: 1 HDMI, 1 VGA, 1 3.5mm steero, 1 S/PDIF
- Outputs: 1 DXLink
- Distance: Up to 328'
- HDCP compliant
- LED status indicators
- 3D pass through
- Dimensions: 1" x 8 3/4" x 5 1/5"
- Weight: 1.1lbs
- Warranty: 3 years
