 Home > Table Boxes -> Pop Ups -> Audio/Video and Power -> Altinex -> TNP530 Tilt Up Table Box w/ HDMI and VGA Retractable Cables

Altinex TNP530
Tilt Up Table Box w/ HDMI and VGA Retractable Cables

Part #: TNP530
Satisfaction Guaranteed!
MSRP: $1,050.74
Our Price: $830.60
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $7 Off!
Color choice:
Top TNP530 Specifications
  • Connections: 2 power, 1 Cat6, 1 audio, 2 USB, 1 VGA, 1 HDMI
  • Cables: Power: Single 9', Cat6: 6' female to male, Audio: 6' female to male, USB: 6' Type A female to male' Retractable cables: HDMI and VGA are male and pull out 4', the pigtail on the other side is 4' male
  • Color: Black anodized aluminum or silver anodized aluminum
  • Bezel dimensions: 7.86" x 6.53"
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

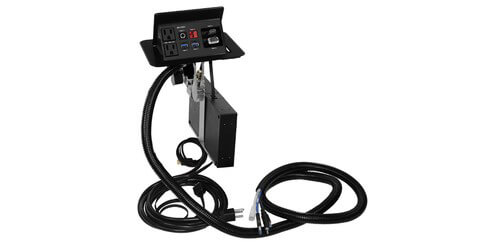

The Altinex TNP530 is a tilt up table box that pops up out of your table when pressed exposing your connections consisting of; 2 power, 1 Cat6, 1 audio, 2 USB, 1 VGA, 1 HDMI.  The HDMI and VGA connections are retractable, this is the worlds first pop up table box to have retractable cables.  The HDMI and VGA connections pull out up to 4' when needed, when you are finished they retract back into the box and out of the way.  You will always have your video connections ready to use and will never have to look for a cable.

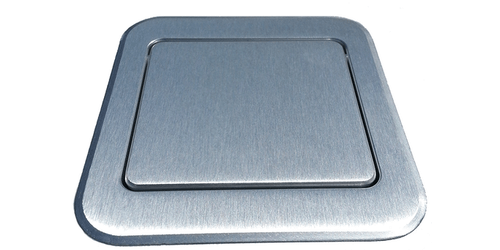

The box is always flush in your table and comes in a beautiful long lasting black anodized aluminum or silver anodized aluminum.  To open all you do is press the top and a leaf spring pops the unit up, to close simply press down till it latches.

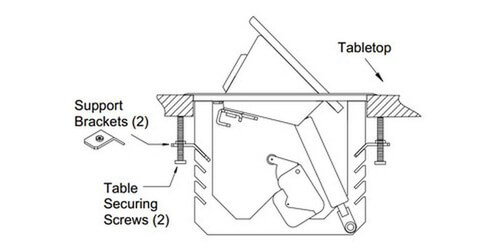

To install cut your hole and drop in, secure to the underside of the table with the included mounting hardware.  The Altinex TNP530 is the first pop up box to have retractable cables for the ultimate presentation table box.

The connections and retractable cables in this model are customizable for a flat price of $899, please call us at 888-999-3759, click here to email us, or via Live Chat to request a quote.

Specifications

  • Cutout dimensions: 7.46" x 6.13"
  • Table thickness: .75" to 2.5"
  • Depth under table: 11.4" with retractors installed on bottom of unit
  • UL and c-UL listed
  • Mounting hardware included
  • Warranty - Table box: 10 years, retractable cables: 3 years
