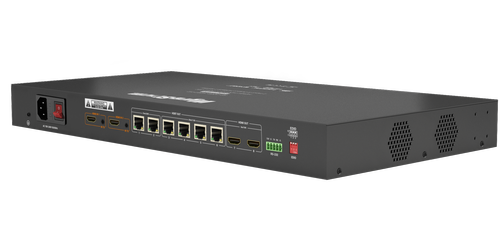

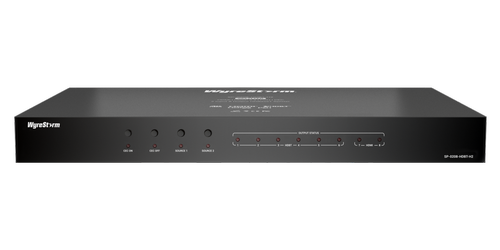

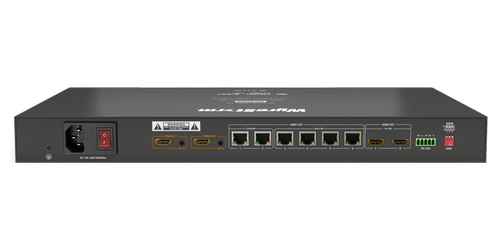

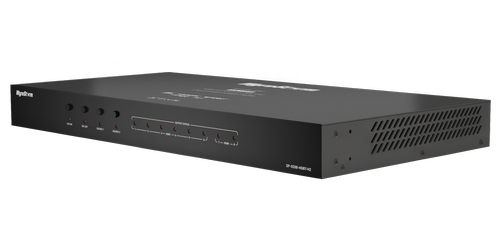

WyreStorm SP-0208-HDBT-H2

2X8 UHD 4K HDMI and HDBaseT Splitter - HDCP 2.2

Satisfaction Guaranteed!
Part #: SP-0208-HDBT-H2
For pricing & ordering information on this product:

-Please call us at 888-999-3759
-Click here to request a quote
-Contact us via Live Chat
0 out of 5 based on 0 ratings.

Now featuring the Wyrestorm SP-0208-HDBT-H2 2x8 4K HDBaseT Splitter with HDCP 2.2, 4K, PoH, and CEC. This compact mixed-transmission UltraHD splitter has been perfectly designed for multi-screen and signage environments, such as digital signage or retail type applications. This is achieved through its ability to provide three transmission options, the SP-0208 features dual HDMI inputs that can automatically or manually be switched to any 6 HDBaseT or 2 HDMI outputs. The SP-0208-HDBT-H2 utilizes four HDBaseT Class B and two Class A outputs. The Class B outputs can output 4K UHD signal content up to 115' and 1080p up to 230'. With the Class A outputs being able to transmit 4K UHD content up to 230' and 1080p up to 328'. The 2 HDMI outputs give users the ability to either cascade to another splitter, matrix or feed local screens for install options that are as powerful as they are versatile.

Control of the SP-0208 offers independent IR control of both its sources from HDBaseT zones and can be operated via front panel or RS-232, with support for major control systems, and of course, WyreStorm Enado control. Active-CEC also enables all compatible screens to be powered on or off at the touch of a button for added convenience. With PoH support this distribution amplifier allows all HDBaseT receivers to be powered direct from the splitter itself.

Key Features:

  • Dual HDMI input 4K UHD PoH splitter with automatic or manual switching
  • 4x Class B HDBaseT outputs transmit 4K UHD content up 35m/115ft and 1080p to 70m/230ft
  • 2x Class A HDBaseT outputs transmit 4K UHD content up to 70m/230ft and 1080p to 100m/328ft
  • 2x HDMI outputs can be used to cascade to another splitter, matrix or feed local screens
  • Compatible with latest HDCP 2.2 content and 4K/60 4:2:0 or 4K/24 10-bit HDR
  • Active-CEC enables all compatible screens to be powered on or off at the touch of a button
  • Compatible with latest HDCP 2.2 content and 4K/60 4:2:0 or 4K/24 10-bit HDR
  • PoH allows all HDBaseT receivers to be powered from the unit
  • Independent IR control of both sources from HDBaseT zones
  • Control via front panel or RS-232 with support for major control systems, including WyreStorm Enado
  • EDID settings enable manual adjustment of source transmission

Ideal applications of use:

The SP-0208 can also be used as part of a wider WyreStorm eco-system. Using Wyrestorms hybrid Active Optical cables to deliver high bandwidth 4K from HDMI outputs up to 30m/98ft direct to a screen, AVR, splitter or switcher. Use a WyreStorm EXP-CON-4K-DD to de-embed audio for a selected source. Expand HDMI outputs to devices using WyreStorm 0102 and 0104 splitters, connect multiple PoH devices, or connect HDBaseT outputs to HDBaseT inputs of a WyreStorm matrix to expand a system even further. How you use it is up to you. This is the perfect device for an economical and flexible method of distributing one or two sources to multiple displays over long, medium and short distances.

  • Inputs: 2x HDMI In: 19-pin type A
  • Outputs: 2x HDMI Out: 19-pin type A, 2x HDBT Out (Class A): 8-pin RJ-45 Female, 4x HDBT Out (Class B) 8-pin RJ-45 Female
  • Resolutions and Range: 4K up to 230' / 1080p up to 328' (Depending on Outputs, see spec sheet)
  • Output Video Encoding: HDBaseT Class A/B (Output Dependent)
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency: <1 frame 10 s (micro seconds)
  • Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
  • Color Depth: 1080p: 16bit | 4K UHD: 8bit | HDR @24p: 10bit BT.2020
  • Maximum Pixel Clock: HDMI: 600MHz | HDBaseT: 297MHz
  • Communication and Control:
  • HDMI: HDMI | HDCP 2.2 | EDID | CEC | DVI-D with adapter (not included)
  • HDBaseT: HDMI | HDCP 2.2 | EDID | CEC | 1-way PoH to receiver | IR (RX to Matrix)
  • IR: 2x IR TX 3.5mm (1/8in) TS Mono | Transmits via HDBaseT from Remote Zone
  • RS-232: 1x RS-232: 5-pin Phoenix | Switcher Control Only
  • Additional Specs:
  • Power Supply: 100~240V AC 50/60Hz
  • PoH (1-way): 48V 15.4W (each HDBT output)
  • Max Power Consumption: 75.21W
  • Rack Units: 1U
  • Dimensions (HxWxD): approx 17.33 x 8.67 x 1.72
  • Weight: 1.54lbs
  • Included Accessories: 1 x US AC Power Cord (AC 100 - 240V 50/60Hz), 1 x Euro AC Power Cord (AC 100 - 240V 50/60Hz), 1 x UK AC Power Cord (AC 100 - 240V 50/60Hz), 2 x IR Emitter, 1x 5-pin Phoenix Connector, 2x Mounting Brackets (Rack Ears), 1x Quickstart Guide
  • Warranty: 2 Years
