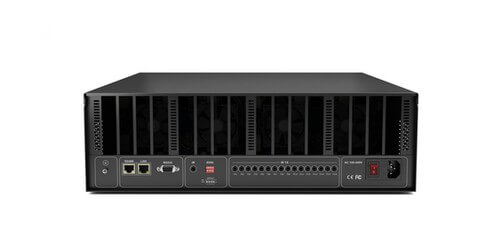

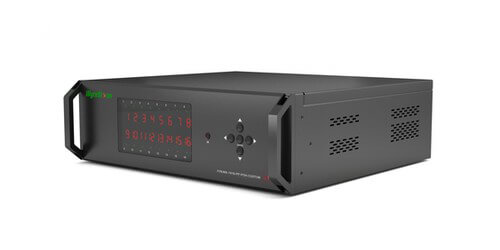

Modular 16x16 1080P Matrix Switcher with PoH
The WyreStorm MX-1616-PP-POH-CUSTOM is a modular 16 input and 16 output matrix switcher, purchase the sold separately input and output cards to achieve your desired connections. The matrix switcher can handle a maximum resolution of 1080P with 36-bit and deep color. It supports 3D pass through, is HDCP compliant, and offers EDID management. The unit can be controlled via the included IR remote control, front panel buttons, and IR and RS-232.
- Empty 16x16 chassis, purchase the cards (sold separately)
- Control: Infrared remote control, front panel buttons, local IR, IR call-back, and RS232
- Maximum resolution: 1080p 36bit Deep Color
- Distance: 16' HDMI, up to 230' using compatible output card and receiver and shielded Cat6a cable
- 3D pass through
- EDID management
- HDCP compliant
- HDMI v1.4
- Includes: Power supply, IR extension cable, (16) IR emitters, (16) IR receivers, IR remote control, mounting brackets, flash memory USB stick containing PC control software
- Dimensions: 17.3'' x 5.2" (3RU) x 15.5''
- Weight (un-populated): 29.8lbs
- Warranty: 5 years

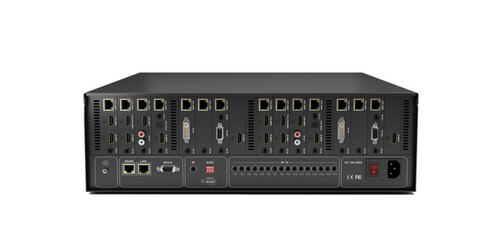

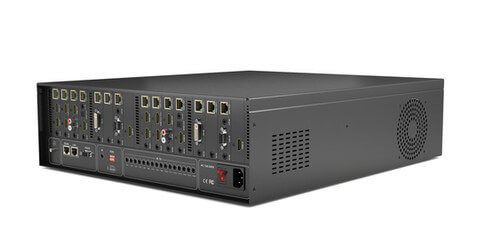

Please see list below of input and output cards that insert into the modular matrix switcher. If you need help with a configuration please contact us.
