WyreStorm MX-0404-QI

4 HDMI In x 4 HDBaseT Out Matrix Switcher, 4 Receivers, 131'

Satisfaction Guaranteed!
Part #: MX-0404-QI
For pricing & ordering information on this product:

-Please call us at 888-999-3759
-Click here to request a quote
-Contact us via Live Chat
0 out of 5 based on 0 ratings.

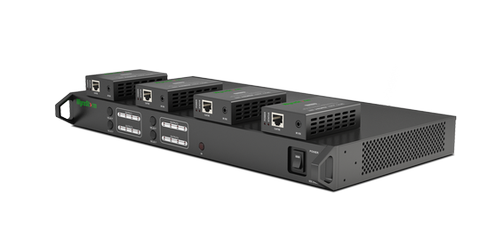

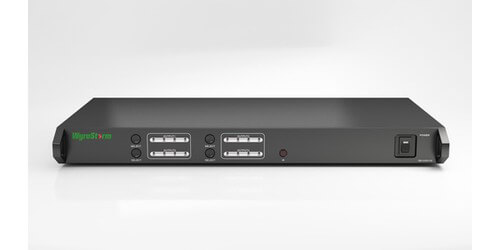

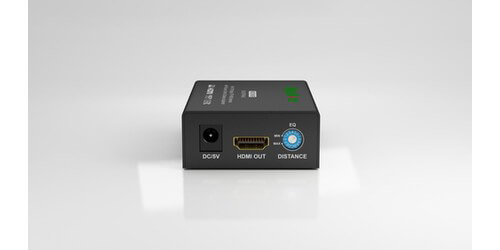

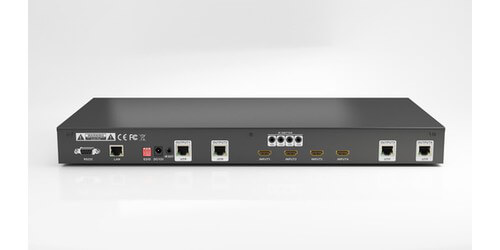

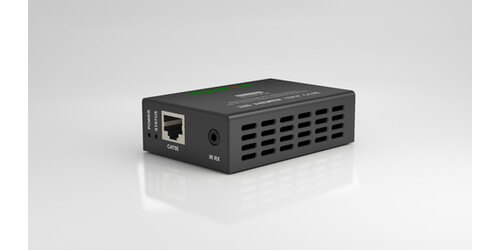

The WyreStorm MX-0404-QI is a 4x4 1080P matrix switcher kit that also includes 4 HDBaseT receivers. The matrix switcher features 4 HDMI inputs and 4 HDBaseT Lite outputs. You can not only send video but embedded HD audio and 2-way IR for a complete solution. The HDBaseT outputs can send all this to the included RX-1UTP-IR-40 receivers, up to 131' for a 1080P signal using Cat6a/7 cabling.  The matrix supports enhanced EDID management, 3D pass through, and is HDCP compliant. The matrix switcher can be controlled via the front panel, IR (includes remote control), RS-232, and LAN.

The MX-0404-QI is an affordable 4x4 matrix switcher and receiver combo. The matrix switcher is flexible with the ability to output via HDBaseT which covers a vast array of applications.

  • 4X4 matrix switcher with 4 HDBaseT Lite receivers
  • Inputs: 4 HDMI
  • Outputs: 4 HDBaseT Lite
  • Resolution: 1080P with 24 bit deep color
  • Sends: Video, HD audio and 2-way IR
  • Distance: Up to 131' for 1080P with Cat6a/7 or 197' with Cat5e/6
  • IR: 4 transmitter and 4 receiver
  • 1 LAN
  • Supports: HDCP, EDID, 3D Control: Front panel, IR, RS-232, and LAN
  • Matrix switcher includes: 4 IR receivers, 4 IR emitters, 1 IR RX extension cable, power supply, rack mounting brackets, remote control
  • Receivers include: Power supplies, mounting brackets, IR RX receiver
  • Dimensions: 17.3'' x 2.05'' x 9.25'' (rack mountable)
  • Weight: 4.4lbs
  • Warranty: 5 years
