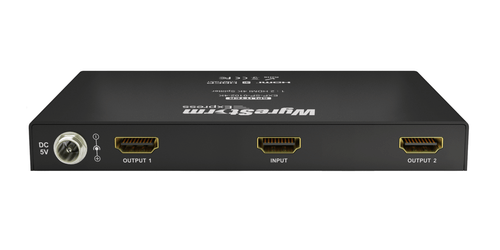

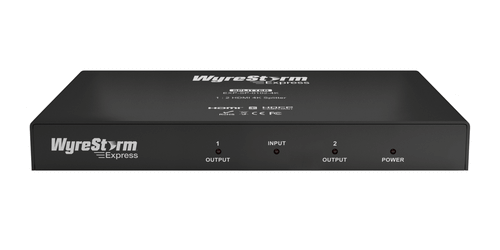

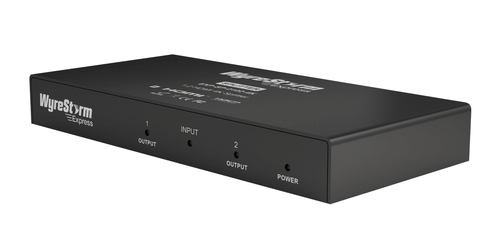

1X2 HDMI Distribution Amplifier - 4K Compatible
The WyreStorm EXP-SP-0102-4K is a 1 in and 2 out HDMI distribution amplifier, you can insert your single signal and output 2 identical signals. The distribution amplifier fully supports 4K 3840 (UHD) and 4096 (DCI) 2160 at 30Hz, with a 4K color palette of 4:2:2.
The device is easy to set up and is plug and play, it supports automatic EDID and HDCP device communication. Automatic HDCP and EDID management continuously negotiates and authenticates communication between connected devices, ensuring simultaneous distribution of source content to all outputs, while also maintaining signal integrity via internal equalization and amplification to output devices.
For true video and audio performance the unit features HDMI 1.4a specification supporting data rates up to 10.2Gb/s, full 3D, and Lip Sync. Systems can be further expanded by cascading multiple EXP-SP-0102-4K units to create larger distributions; with 4K transmissions cascaded twice and 1080p signals up to 12 times to the same model units for flexible, scalable solutions for residential and commercial applications.
The WyreStorm EXP-SP-0102-4K is an affordable solution to distribute your HDMI reliable over 1080P or 4K,
- 1x2 HDMI distribution amplifier
- Distance: 49' for 1080P and 33' for 4K
- Resolution 4K: 3840 (UHD) and 4096 (DCI) 2160 @ 30Hz with 4K color palette 4:2:2
- Resolution 1080P: 36bit Deep Color, 60Hz
- Audio: Multi-channel digital
- Compliancy: 3D, HDCP, EDID, HDMI 1.4a
- Locking power connection
- Cascadable: 2 times for 4K, 12 times for 1080P
- Includes: Power supply and mounting brackets
- Dimensions: 5.5" x .7" x 2.6"
- Weight: .57lbs
- Warranty: 5 years
