WyreStorm EX-70-G2
4K HDMI Extender, HDBaseT Kit, IR Control, HDCP 2.2
- Transmitter Input/Output: HDMI In / HDBT 8-pin RJ-45 female Out

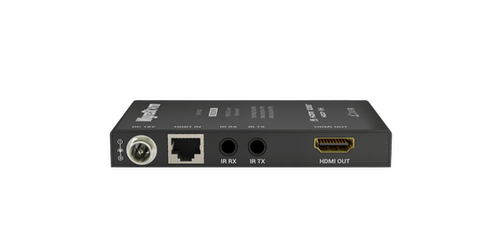

- Receiver Input/Output: HDBT 8-pin RJ-45 female In / HDMI Out
- Supported HDMI Cable Resolutions: Up to 4K/60 8-bit 4:4:4
- Bandwidth: 9.2Gbps
Description

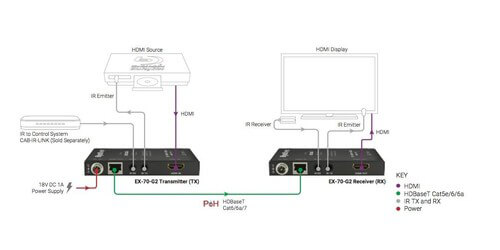

Featuring the WyreStorm Express EX-70-G2 HDMI Extender Kit. This high-quality range extender set features both transmitter and receiver units that allow for pristine point-to-point HDMI signal transmission via HDBaseT, with CEC pass-through. The EX-70-G2 system provides a cost efficient, easy installation format, that allows users to send 4K/60 quality video signals up to 115' and 1080p signals all the way out to 230'. It also features auto EQ, auto EDID management, support for two-way PoH (Power over HDBaseT) over a single Cat cable, all packaged in a super slim 15mm chassis that can be easily placed behind flush-mounted screens.
In terms of control, CEC support allows communication between devices for one-touch on/off commands and bidirectional IR enables both source and display to be controlled from either end, with connection to third party IR/control products possible by simply connecting a WyreStorm IR link cable (not included). Making this a perfect low cost system for use in residential systems, as well as in small business and restaurant type applications for digital signage or player high-resolution media content.
Primary Features of the EX-70-G2 Include:
- WyreStorm HDBaseT Extension System - both a transmitter and receiver
- 2ch PCM and multichannel audio supported up to DTS:X and Dolby Atmos
- 2-Way PoH TX or RX to be remotely powered from either end for flexible installation options that reduce potential points of failure from a system
- 2way IR pass-through
- Auto EQ and Auto EDID Management
- Supports CEC communication between devices
- 4K UHD transmissions with HDCP2.2 also supported up to 115ft
- Low profile, surface mount, 15mm chassis allows quicker, easier installation behind flush-mounted screens
Specifications
- HDCP 2.2 Compliant
- HD Resolution Range Using Cat6/7 Cabling: 1080p up to 114' on Cat6 / 230' over Cat7
- 4K Resolutions Using Cat6/7 Cabling: 4K/60 4:2:0 up to 114' on Cat6 / 230' over Cat7
- Output Video Encoding: HDBaseT Class B
- Color Depth: 1080p: 16bit | 4K UHD: 8bit
- Maximum Pixel Clock: 297 Mhz
- Communication & Control: HDBaseT: HDMI | HDCP 2.2 | EDID Pass-through | 2way PoH | 2way IR
- Ethernet: 1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Built-in Web UI | IP Control
- CEC Pass-through Capable
- Auto EQ & Auto EDID Management
- Power Supply: Input: 100-240V AC 50/60Hz | Output: 18V DC 1A
- PoH: 2-way | 19v Non-standard 13w PSE
- Power Consumption: 8.88W
- Dimensions (HxWxD): 0.6" x 4.3" x 2.5"
- Weight: 0.79lbs
- Included Accessories: 18V DC 1A Power Supply (US/UK/EU), Wide-band IR Emitters, Wide-band IR Receivers (30-50KHz), 4x Mounting Brackets (1pr for TX and 1pr for RX), Quickstart Guide
- Warranty: 5 Years
