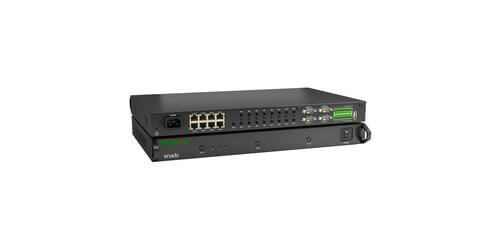

WyreStorm ENA-001-010

Enado Controller - 16 Port, IR/4-Port, RS-232, AV over IP

Satisfaction Guaranteed!
Part #: ENA-001-010
For pricing & ordering information on this product:

-Please call us at 888-999-3759
-Click here to request a quote
-Contact us via Live Chat
0 out of 5 based on 0 ratings.

Now featuring the Wyrestorm Enado Control Solution ENA-001-010 for AV over IP installations. This elegantly priced AV distribution control system combines powerful hardware with intuitive cross-platform software to create and end to end AV distribution and control system. This unit offers amazing performance and features all housed in one compact unit. It has been designed to offer users exceptionally high levels of functionality through advanced processors that deliver exceptional performance and control of connected devices including video, audio, lighting etc.. and power, while utilizing a unique software platform that scales the highest level. The Enado ENA-001-010 Controller features 8 high-speed Ethernet ports, 1 USB 2.0 port, 16 IR ports, with 1 3.5mm IR learner, 1 learning window and IR Blaster, and 4 RS-232 serial ports. With its extensive I/O to control devices through multiple IR, RS-232 serial, IP, contacts and relays, this is a perfect device for use in both small and large scale installations, for business, restaurants, high-end show rooms, home theaters, digital signage, retail market type applications.

By being a server based, centrally manage IP control system, the Enado eliminates the need to download and update individual App's and configuration files to every control device. Additionally the system can be programmed via simple web browser application and is designed to offer maximum control flexibility, thus eliminating the requirement for proprietary applications.

Straight out of the box, users will instantly enjoy the flexibility and scalability of this cross platform control solution that is compatible with any internet-enabled product from any manufacturer, with any broswer, and any operating system and screen size. In essence is enables control of an unlimited number of devices with no license fees. rather than using programming software, this device features elegant, pre-configured templates that makes integration with WyreStorm (and other) products a fairly straight forward solution. Furthermore this unit is BYOD (Bring Your Own Device), and is compatible with any platform on any webs on any web-enabled device from smartphones to tablets to computers. Get QR code and bookmarked device setup that’s effortlessly quick, simlpe and client-friendly.

With the powerful software able to run on any client device offering a web interface and the controller ideal for both professional and residential control, the WyreStorm Enado control solution offers the very best in installer and end-user experience.



Key Features:

  • Server based, centrally managed IP control system eliminates the need to download and update individual App’s & configuration files to every control device
  • Revolutionary remote management & access for installer & user
  • Fast, reliable, affordable control ideal for WyreStorm installations
  • On screen optional video integration function to facilitate visual control. Requires WS-EN-VID-IP-1 for each video feed (not included)
  • PC and Mac compatible
  • Full remote access, enables control and programming from any web enabled device including smartphones, tablets, Smart TVs

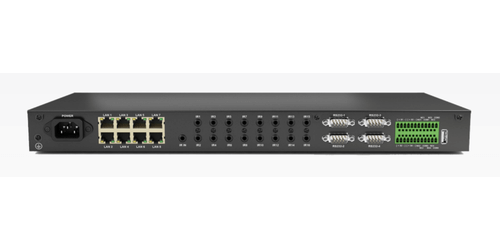

  • Network I/O's: 8x Ethernet Ports 10/100 (8023AB), 1x USB 2.0
  • Sensor Connectivity: 4 inputs, 4 outputs
  • IR Ports (3.5mm): 16
  • IR Learner: 1 x 3.5mm (rear), 1 x Learning window (front)
  • IR Blaster (front): Yes
  • IR Output Min/Max IR Frequency: 10k - 120k
  • USB Type: USB 2.0
  • Ethernet: 10/100
  • RS-232 Serial: 4 x DB9 Male
  • Sensor I/O: Input requires 12V Sleek, 1RU design allows for installation flexibility in a rack, cabinet or on a shelf
  • Extensive I/O to control devices through multiple IR, RS-232 serial, IP, contacts and relays
  • Instantaneous, intuitive control from a smartphone, tablet, TV, PC or Mac browser
  • Full remote access, enables control and programming from any web enabled device including
  • smartphones, tablets, Smart TVs
  • PC and Mac compatible
  • On screen optional video integration function to facilitate visual control. Requires WS-EN-VID-IP-1 for each video feed
  • Advanced processor
  • Power Supply: 100-240V/AC
  • Power Consumption: 5W
  • Dimensions (WxHxD): 17.3" x 1.66" x 10.3"
  • Weight: 8.24lbs
  • Included Accessories: 1x ENA-001-010 or ENA-MINI-010 controller, 1x Installation Guide, 8x CAB-IR-LINK cables (ENA-001-010 only), 4x RS-232 male to female DB9 cables (ENA-001-010 only), 1x Ethernet patch cable, 2x Rack Ears (ENA-001-010 only), 1x 100-240v AC power cables (AUS, UK, US, EU form factors, ENA-001-010 only)
  • Warranty: 2 Years
