WideSHOT WallVIEW Mini
Manual Adjustable HD Huddle Room Camera w/ USB Mini

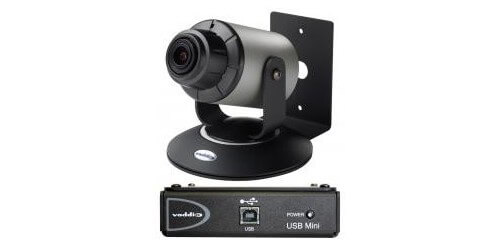

The Vaddio WideSHOT WallVIEW Mini HD camera is a low cost, high value, manual pan/tilt/zoom camera with a super wide angle lens that can be set to provide the best image possible in a small environment. The WideSHOT has an 82.2 degree wide horizontal field of view with a user adjustable iris, focus and varifocal zoom of approximately 3X.
The WideSHOT was designed from the ground up and is equipped with the Vaddio EZCamera Cat-5 wiring interface standard for video, power and control. Using HSDS (differential) video outputs over Cat. 5 cable, the WideSHOT supplies a wide range of video resolutions that are selectable from 480p/59.94-YPbPr up to and including 1080p/60. The HSDS processing allows delivery of the WideSHOT HD video signals up to 150'.

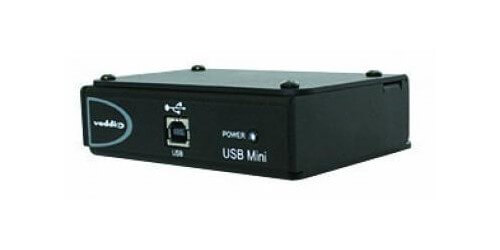

The USB Mini was designed to require simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mine will auto negotiate.

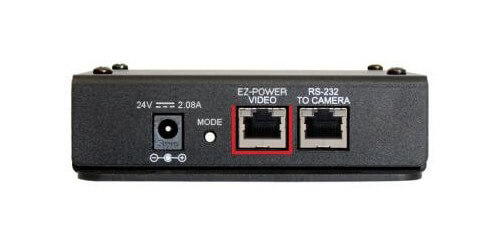

The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 150' using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers an easy mounting either on-wall or under-table with an integrated mounting tab.
- 1.3 Megapixel 1/3-Type Progressive Scan Imaging Sensor
- 0.3 LUX Rating for low-light environments
- Wide angle of view: greater than 82 degree Horizontal Viewing Angle (16:9)
- Includes USB Mini Quick-Connect
- Thin profile wall mount bracket and mounting hardware included
- USB Mini Interface provides for power, video and control to the camera over two Cat-5 cables up to 150' (45.72m) with a single USB 2.0 connection to PC UVC Compliant, Compatible with most popular UC Clients
