WallVIEW HD-USB PRO
High-Definition USB PTZ Camera Professional Package
The Vaddio WallVIEW HD-USB PRO is a professional quality PTZ camera package system. The professional package includes the WallVIEW HD-USB, a pair of active USB 2.0 cable extenders, and a power extension module for running power, video and control up to 150 feet. If the camera is locally powered, video and control runs up to 300 feet.
The camera features USB 2.0 output, ethernet streaming, and analog component integrated into the camera. The camera is easy to operate since it is USB 2.0, simply plug it and and go. There are no seperate capture devices required and since it is USB 2.0 there are no special drivers required. This allows the camera to work seamlessly with your software application running on any operating system that supports USB.
- Low Light Capable
- Advanced DSP
- Video Outputs: USB 2.0 (MJPEG), MPEG4/H.264 (IP), Analog Component (YPbPr), CVBS, Resolution up to 1080p/30 (IP) or up to 720p/30 (USB 2.0) and 1080p/60 (YPbPr)
- H.264 Resolutions: CIF, 640x480 (VGA), 480p, 720p/30 1080p/30 (1080p Ethernet only)
- Supported Media Players: Windows Media Player, Apple Quick-Time and VLC Media Player
- Image Sensor: 1/3-Type Exmor High-speed, Progressive Scan CMOS Sensor with 1.3 Megapixels
- Minimum Illumination: 0.7 LUX
- Lens/Focal Length 19X Optical Zoom
- Pan Range, Pan: +170 degrees to -170 degrees, Tilt: +90 degrees to -30 degrees
- Dimensions: 7.81"x6.67"x7.057"
- Weight: 6.04lbs

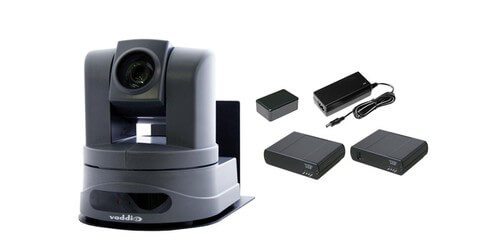

- Includes: HD-USB PTZ Camera, PowerRite 12 VDC, 3.0 Amp Power Supply and Power Cable, Vaddio IR Remote Commander, EZCamera Control Adapter, 10' USB 2.0 Type A (male) to USB B (Male) Cable, 1' USB 2.0 Type A (Male) to USB B (Male) Cable, Extreme USB 2.0 Extender (Remote or TX Side), Extreme USB 2.0 Extender (Local or RX Side), 1' (305mm) EIA-J03 to EIA-J03 Power Cable (power from camera to extender), 5 VDC Switching Power Supply (in case the PC Port is under 5 VDC), Power Extension Module, PowerRite 24 VDC, 2.75 Amp Power Supply and Power Cable, Thin Profile Mount and hardware for the HD-USB Camera, Velcro Strip to mount Extreme USB Extender TX to Camera Mount
